What Is a Mandal Fairlead Shackle Used For?
A Mandal Fairlead Shackle is a specialized marine and offshore connector engineered to optimize mooring and towing operations by enabling seamless integration of steel wire ropes and synthetic fiber ropes under extreme loads. Below is a breakdown of its core functions, structural features, and applications:
1. Core Functions
A. Smooth Pass-Through Design

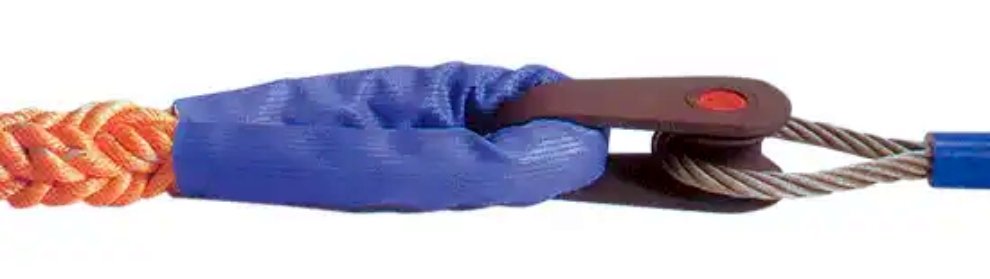

Structure: Features a wide, rounded body with an internal channel for synthetic fiber rope tails and an external sheave/roller for steel wire guidance.
Purpose:
Allows the entire assembly to slide effortlessly through deck fairleads (deck openings) and roller banks (multi-roller guides).
Prevents jamming or point-loading (localized stress) on ropes, reducing wear and operational friction.
B. Wire-to-Fiber Transition
Hybrid System Integration:
Steel Wire: High tensile strength, durability in harsh environments.
Synthetic Fiber: Flexibility, reduced shock loads, and easier handling.
Connects high-strength steel wire ropes (abrasion-resistant, for heavy loads) with elastic synthetic fiber tails (shock-absorbing, lightweight).
Leverages the strengths of both materials:
Applications:
Dynamic mooring (e.g., FPSOs in offshore waves).
Towing operations requiring sudden load changes.
C. High-Load Capacity
Certified Performance:
Tankers (port mooring).
FPSOs (offshore anchoring).
Drilling Rigs (station-keeping in deepwater).
Heavy-Duty Tugs (towing large vessels/structures).
Type-approved by classification societies (DNV, ABS, LR) with proof-loading up to 2× Working Load Limit (WLL).
Safe Working Load (SWL) ratings up to 300 tonnes, suitable for:
D. Chafe & Fatigue Reduction
Load Distribution:
The shackle’s smooth profile evenly distributes forces across both rope types, minimizing localized wear (chafe) and material fatigue from repeated stress cycles.
Benefit:
Extends rope lifespan by up to 30–50%, reducing replacement costs and downtime.
2. Structural Features
Material: High-grade alloy steel (e.g., Grade 8 or 10) for corrosion resistance and strength.
Design:
Roller-Type Sheave: Guides wire rope smoothly, reducing friction.
Fiber Rope Channel: Protects synthetic tails from abrasion.
Removable Pin: Enables quick inspection and replacement of ropes.
Surface Treatment: Hot-dip galvanized or painted for marine-grade corrosion protection.
3. Key Applications
Offshore Mooring Systems
FPSOs, semi-submersibles, and floating wind turbines require flexible yet strong connections to withstand waves and currents.
Heavy Towing
Used by tugs to tow barges, disabled vessels, or offshore structures (e.g., oil platforms).
Ship-to-Ship (STS) Transfer
Secures hoses during liquid cargo transfer between vessels in rough seas.
Dynamic Positioning (DP) Backup
Provides redundant mooring for vessels using thrusters to maintain position.
4. Technical Advantages
Safety: Certified for high loads, reducing failure risks in critical operations.
Efficiency: Eliminates manual rope adjustments during mooring/towing.
Cost-Effectiveness: Lowers long-term maintenance by protecting ropes.
Versatility: Compatible with various rope types (e.g., HMPE, Dyneema®, steel wire).
Summary
The Mandal Fairlead Shackle is a high-capacity, transition-focused connector that bridges the gap between steel wire and synthetic fiber ropes in demanding marine environments. Its design ensures smooth operation, load distribution, and durability, making it indispensable for secure mooring and towing under extreme conditions.
For specific project requirements,SMEOCEAN manufacturers can customize dimensions, materials, and certifications to meet industry standards (e.g., OCIMF, ISO 19901-7).
Would you like additional details on a specific aspect (e.g., installation guidelines, comparison with alternative shackles)?Feel free to contact us.
