How to Choose a Forelock Shackle: A Professional Selection Guide

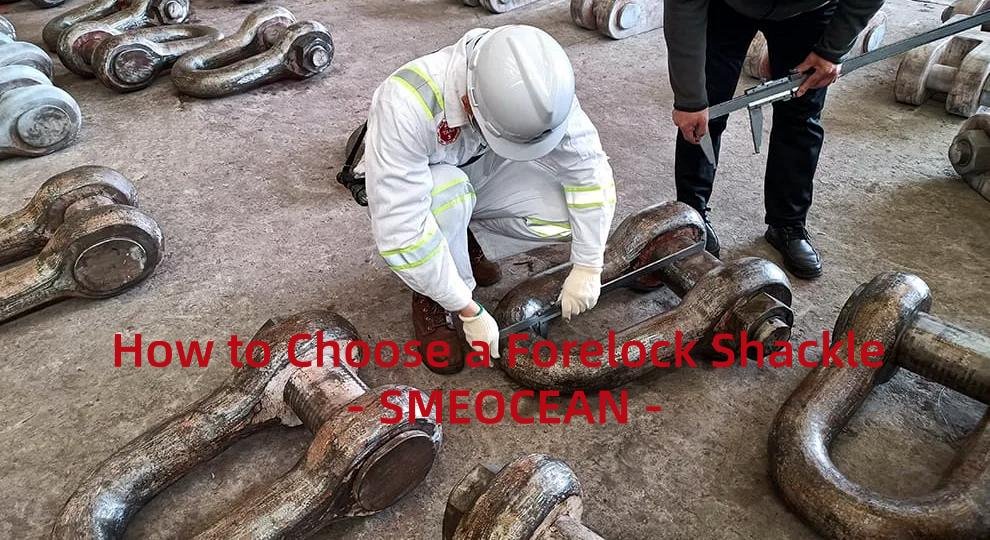

What is a Forelock Shackle?
Shackles are essential and versatile attachment tools used across various industries. The forelock shackle, also known as the front lock shackle, stands out as a specialized and important type, particularly in maritime applications.
Definition and Purpose:
A forelock shackle is a specific type ofshackle designed for use within stud link anchor chains. These anchor chains are distinguished by their studs—raised sections along the links that help maintain the chain's shape and reduce wear during use. The forelock shackle serves as a reliable means of connecting the stud link anchor chain to various fittings, such as deck fittings on ships, termination points on marine structures, or within navigation buoy mooring bridle systems.
Typical Application Scenarios
Forelock shackles are mainly used in the following four scenarios:
- Scenario 1: Connecting anchor chain to anchor. Connecting the end of the anchor chain to the anchor using a forelock shackle facilitates the disassembly and replacement of the anchor.
- Scenario 2: Connecting anchor chain to buoy.Used in mooring buoy systems to connect the bottom of the buoy to the anchor chain, withstanding tidal and current impacts.
- Scenario 3: Connecting anchor chain sections. Connecting two sections of anchor chains of different grades or specifications (e.g., U2 and U3).
- Scenario 4: Connecting underwater mooring accessories.Connecting counterweights, swivels, and other underwater accessories.
The following section provides selection recommendations for these four scenarios.
I. How to Choose Specifications?
The common specification range for forelock shackles is 22–50mm, which needs to be selected based on the anchor chain diameter and load requirements.
- Use forelock shackles when the anchor chain diameter is ≤ 50mm.
- When the anchor chain diameter is > 50mm, it is recommended to use an LTM End Joining Shackle (LTM ES) – a specialized shackle designed for larger-diameter chains, allowing smooth passage through the chain stopper.
> Scenario Correspondence: In Scenario 3 (connecting anchor chain sections), if the two segments have different specifications, the shackle specification should be selected based on the smaller chain diameter.
II. How to Choose Shaft Type? Elliptical vs. Round
Forelock shackle shafts come in two types: elliptical and round. For the same specifications, an elliptical shaft is approximately 1.2 times heavier than a round shaft.
- Elliptical Shaft: Heavier weight, more stable underwater attitude, and stronger resistance to water flow impact. Suitable for Scenario 1, Scenario 2, and Scenario 4 (underwater operations).
- Round Shaft: Lightweight, easy to handle manually and quickly. Suitable for Scenario 3 (docks/shipyards, on land, or in shallow water).
> Selection Recommendation: Elliptical shafts are recommended for underwater or long-term immersion environments; round shafts are suitable for temporary connections on land or in shallow water.
III. How to Choose Pin Material?
There are three main pin material options, arranged from lowest to highest corrosion resistance:
- Alloy Steel: High strength, moderate corrosion resistance, low cost. Suitable for dry environments, temporary connections, and Scenario 3 (on land).
- 304 Stainless Steel: Good strength and corrosion resistance, moderate cost. Suitable for humid environments, and freshwater or short-term immersion scenarios in Scenario 1/2/4.
- 316 Stainless Steel: Excellent strength and corrosion resistance, especially resistant to seawater corrosion; highest cost. 316 stainless steel must be used in seawater environments in Scenario 1/2/4.
> Selection Recommendations: For marine environments (anchor-chain connections, buoy mooring, underwater accessories), 316 stainless steel is mandatory. For dry onshore environments, alloy steel offers the best cost-performance ratio.
IV. Choosing the Grade for Connecting U2/U3 Anchor Chains
Forelock shackles are available in Grade 2 (minimum breaking strength 490 MPa) and Grade 3 (minimum breaking strength 690 MPa).
Scenario 3 Specific Recommendations:
- Connecting U2 anchor chains → Use Grade 2 shackles.
- Connecting U3 anchor chains → Use Grade 3 shackles.
- 50mm and above → Regardless of U2/U3, LTM ES shackles are recommended. For Grade 3 performance in larger diameters, please consult aspecialist.
> Important Reminder: The shackle grade must not be lower than the grade of the connected anchor chain; otherwise, the shackle will become the weak point in the entire mooring system.
V. How to Choose Cotter Pins?
Cotter pins, though small, play a crucial locking role.
- General recommendation for all scenarios: The cotter pin material should be no less robust than that of the main pin material.
- Alloy steel main pin → Stainless steel cotter pins are recommended (to prevent rust and jamming, and facilitate future disassembly).
- 304/316 main pin → Use cotter pins of the same material.

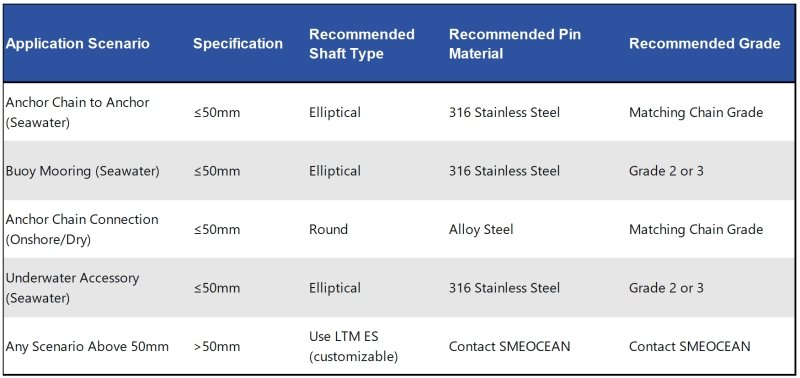

VI. Quick Selection Reference Table
This is the most essential selection table; it is recommended to save it.
VII. Must-Read Before Selection: Working Load (WLL)
When selecting a shackle, calculate the required Working Load Limit (WLL) based on the actual mooring force and apply an appropriate design factor.
The design factor (also known as safety factor) is the ratio between Minimum Breaking Load (MBL) and Working Load Limit (WLL). For marine and mooring applications, a design factor of 4:1 or 5:1 is standard (i.e., MBL = 4–5 × WLL).
Example: Actual mooring force = 5 tons → Recommended shackle WLL ≥ 20 tons (based on 4:1 design factor). Please contact us for assistance with specific calculations.
VIII. Frequently Asked Questions (FAQ)
Q1: Is the maximum size of a forelock shackle really 50mm?
A: Yes. 50mm is the practical upper limit for standard forelock shackles. For larger diameters, please use LTM ES shackles.
Q2: Is an elliptical shaft stronger than a round shaft?
A: No. Both types are designed to achieve the same strength rating. The difference lies in weight and application: elliptical shafts are approximately 1.2 times heavier, providing better underwater stability.
Q3: 316 stainless steel is more expensive than 304. Is it really necessary?
A: In seawater environments, yes. 304 stainless steel is susceptible to rapid pitting corrosion in chloride-rich environments. 316 stainless steel, with its molybdenum content, offers significantly better resistance and a much longer service life in marine conditions.
Need More Specific Selection Assistance?
We are the SMEOCEAN team, providing professional technical support and mooring services for small and medium-sized enterprises.
We offer full-size customization services for forelock shackles (22mm–50mm), with shaft type, material, and load capacity all configurable to your needs. For solutions larger than 50mm, we provide professional support with LTM ES shackles.
Contact us, share your application scenario and load requirements, and receive personalized selection advice.
