End Shackle vs Joining Shackle: What's the Difference and Why It Matters
If you work with anchor chains, you know that every component must be precise. End shackles (ES) and joining shackles (JS) are two of the most easily confused components. They look similar but serve completely different purposes and are not interchangeable.
What is an End Shackle (ES)?
An end shackle (also called an anchor shackle) is used to connect the anchor chain to the anchor itself. It is the last connecting link between the anchor chain and the anchor, installed at the end of the anchor chain, immediately adjacent to the anchor.
End shackles are manufactured according to ISO 1704 standards, using elliptical cross-section pins with reinforced pin areas to ensure maximum load-bearing capacity at the end position.
What is a Joining Shackle (JS)?
A joining shackle (also called a D-shackle, D-linking ring, or detachable joining link) is used to connect two sections of anchor chain. It acts as the "middleman" in the anchor chain system.
A key engineering detail: Because the joining shackle must be able to pass through the holes of a standard chain link and be compatible with deck machinery, size limitations lead to high stress concentration.

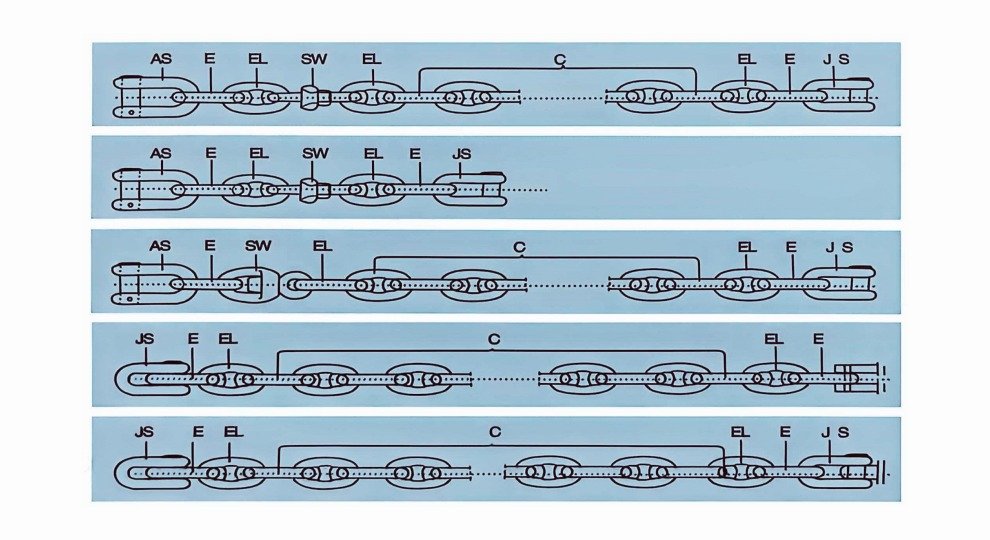

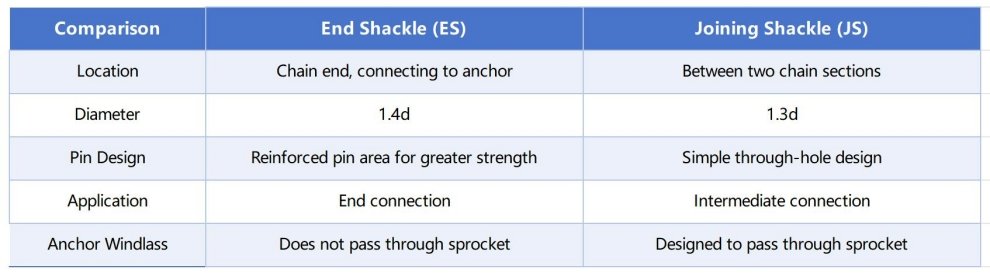

Key Differences
Actual Risks You Need to Know
1. Lead Seal Failure – Documented incidents have shown that during anchoring operations, the end shackle pin protrudes during anchor chain hoisting due to loose seals. Annual visual inspections from the deck are insufficient to address the problem—close-up physical inspections are necessary.
2. Fatigue Life – According to a US patent document, connecting shackles have known fatigue issues. Their size is limited by the need to pass through common chain link holes and be compatible with deck machinery, meaning only smaller fillet radii can be used where the internal cross-section is discontinuous. For this reason, offshore drilling vessels have historically used continuous chain links up to 5,000 feet long for each anchor to avoid the known high fatigue failure rate of connecting shackles during use.
3. Improper Installation Leading to Anchor Chain Detachment – Industry reports indicate that the lead seals on connecting shackles are frequently damaged during installation. The contact area between the tapered pin and the shackle body should be greater than 70% (verifiable with blue oil or red lead powder). If workers simply hammer in the lead instead of melting and injecting it to fully fuse it, the pin will loosen over time, causing the anchor and chain to detach.
Procurement Checklist
When ordering end shackles or joining shackles, please specify:
1. Installation Location: End (terminal) or intermediate (joining)
2. Chain Diameter (d): Determines the dimensions of all components
3. Grade Requirement: U2 / U3 (certification varies by grade)
4. Classification Society: DNV, ABS, LR, CCS, BV, NK, etc.
5. Material Grade: CM490, CM690, or as specified
6. Surface Finish: Hot-dip galvanizing, black paint, or electro-galvanizing
Summary
End shackles and joining shackles are not interchangeable.
- ES (1.4d) is designed for highest terminal loads—for connecting anchor chains to anchors
- JS (1.3d) is optimized for intermediate connections—for connecting two chain sections together
Using the wrong type of shackle in the wrong location will compromise the strength and safety of the entire mooring system. Given known fatigue issues and lead seal risks, proper selection, installation, and inspection are just as important as the product itself.
Does your anchor chain require end shackles or joining shackles?
SMEOCEAN offer both types of shackles, ranging from 12.5mm to 162mm, with DNV, ABS, LR, and CCS certification. Please inform us of your chain diameter and application scenario—we will recommend suitable shackles and provide a quote within 24 hours.
