Product Features: | |
Application: | Hall stockless anchor for ship |
Material: | Steel ZG200-400 |
Type: | A-rectangle shank; B-round shank; C-short rectangle shank |
Specification: | 40kgs to 6000kgs |
Surface: | Black tarred painting, hot-dip galvanized |
Certification: | LR, ABS, DNV, BV, CCS, KR, RMRS, NK etc. |

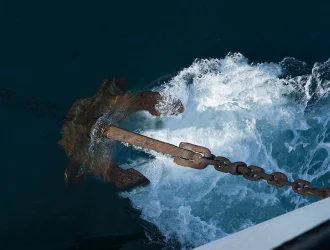

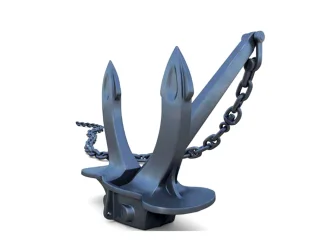

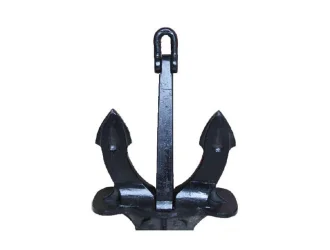

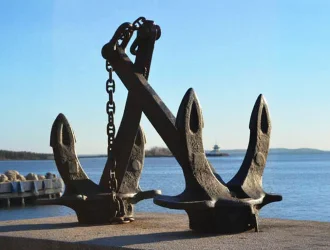

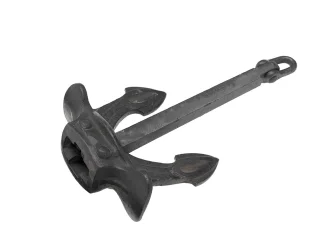

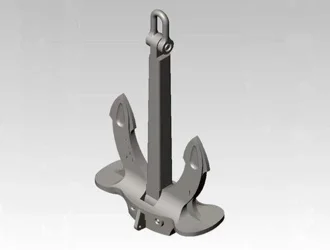

A Marine Hall stockless anchor is a type of marine anchor made from cast steel, commonly used on ships. It's designed to be a versatile anchor, suitable for various sea bottom conditions, and comes in different types (A, B, C) primarily differentiated by the length of the anchor shank. These anchors are known for their rugged construction and ability to hold in sand and mud, making them a popular choice for ships.
Key features and characteristics:
Material: Cast steel, offering durability and strength.
Design: Stockless, meaning it doesn't have a stock (the horizontal bar at the top of some anchors).
Types: A, B, and C, with variations in the shank length.
Weight: Typically ranges from 40kg to 46,000kg, depending on the size and application.
Finishing: Often black tarred painted or hot dip galvanized for corrosion protection.
Certifications: May be certified by various classification societies like BV, ABS, LRS, DNV, IRS, RINA, RS, CCS, KR, NK.
Holding Power: Known for good holding power in softer bottoms like sand and mud, with a high holding-to-weight ratio.
Versatility: Suitable for a range of sea bottom conditions, though may not be as effective in hard or rocky seabeds.
Normminal | Size(mm) | |||||||
Weight(kg) | A Type | B Type | C Type | h | h1 | L | L1 | B1 |
40 | 557 | 557 | 430 | 303 | 67 | 450 | 303 | 198 |
60 | 637 | 637 | 492 | 347 | 76 | 492 | 347 | 227 |
100 | 760 | 760 | 590 | 410 | 90 | 584 | 410 | 270 |
125 | 814 | 814 | 629 | 443 | 97 | 629 | 443 | 290 |
150 | 866 | 866 | 665 | 470 | 103 | 670 | 470 | 308 |
180 | 919 | 919 | 718 | 500 | 110 | 710 | 500 | 327 |
240 | 1019 | 1019 | 788 | 552 | 121 | 784 | 552 | 361 |
300 | 1095 | 1095 | 850 | 595 | 130 | 844 | 595 | 388 |
360 | 1160 | 1160 | 898 | 630 | 138 | 898 | 630 | 412 |
420 | 1160 | 1160 | 946 | 660 | 145 | 946 | 660 | 434 |
480 | 1222 | 1222 | 986 | 690 | 152 | 988 | 690 | 454 |
570 | 1355 | 1355 | 1042 | 732 | 161 | 1042 | 732 | 481 |
660 | 1356 | 1356 | 1093 | 769 | 169 | 1096 | 769 | 506 |
780 | 1506 | 1506 | 1170 | 813 | 178 | 1160 | 813 | 535 |
900 | 1580 | 1580 | 1215 | 855 | 188 | 1220 | 855 | 560 |
1020 | 1645 | 1645 | 1268 | 891 | 195 | 1268 | 891 | 584 |
1140 | 1705 | 1705 | 1316 | 926 | 203 | 1319 | 926 | 605 |
1290 | 1778 | 1778 | 1378 | 965 | 211 | 1374 | 965 | 630 |
1440 | 1844 | 1844 | 1448 | 1001 | 219 | 1430 | 1001 | 655 |
1590 | 1906 | 1906 | 1511 | 1035 | 226 | 1475 | 1035 | 677 |
1740 | 1966 | 1966 | 1571 | 1068 | 234 | 1517 | 1068 | 698 |
1920 | 2031 | 2031 | 1602 | 1104 | 241 | 1568 | 1104 | 722 |
2100 | 2093 | 2093 | 1651 | 1136 | 249 | 1614 | 1136 | 743 |
2280 | 2150 | 2150 | 1716 | 1165 | 255 | 1657 | 1165 | 493 |
2460 | 2207 | 2207 | 1785 | 1194 | 262 | 1700 | 1194 | 784 |
2640 | 2259 | 2259 | 1843 | 1221 | 268 | 1741 | 1221 | 801 |
2850 | 2318 | 2318 | 1890 | 1253 | 275 | 1787 | 1253 | 822 |
3060 | 2374 | 2374 | 1935 | 1283 | 282 | 1832 | 1283 | 841 |
3300 | 2432 | 2432 | 1985 | 1317 | 288 | 1880 | 1317 | 862 |
3540 | 2490 | 2490 | 2032 | 1349 | 295 | 1926 | 1349 | 883 |
3780 | 2547 | 2547 | 2077 | 1376 | 302 | 1965 | 1376 | 902 |
4050 | 2310 | 2310 | 2125 | 1406 | 309 | 2008 | 1406 | 924 |
4320 | 2695 | 2695 | 2171 | 1435 | 316 | 2051 | 1435 | 943 |
4590 | 2712 | 2712 | 2216 | 1465 | 322 | 2093 | 1465 | 962 |
4890 | 2769 | 2769 | 2263 | 1498 | 329 | 2135 | 1498 | 984 |
5000 | 2800 | 2800 | 2317 | 1535 | 337 | 2185 | 1535 | 1008 |
5610 | 2899 | 2899 | 2369 | 1569 | 345 | 2234 | 1569 | 1031 |
6000 | 2965 | 2965 | 2422 | 1605 | 352 | 2284 | 1605 | 1054 |
