Product Features: | |
Material: | Cast Steel ZG230-450 |
Finish: | Coated externally with an anti-corrosion protective finish |
Customization: | Available |
Standard: | DIN81915 |
Certification: | DNV-GL, BV, LRS, ABS, RINA, IRS, RS, CCS, KR, NK, etc. |

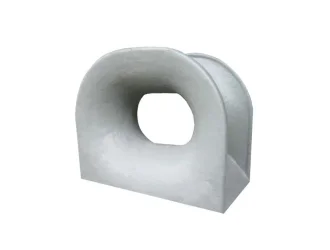

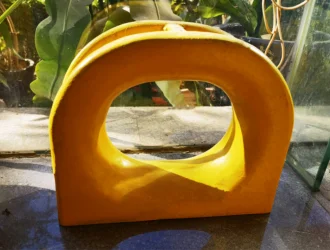

A panama chock is a special type of hawse hole at a vessel's bow and designed as per the mooring requirements set by Panama Canal Authority.

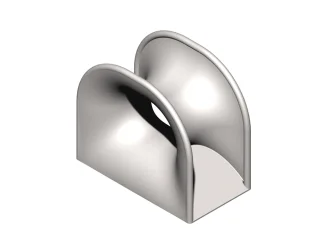

Panama Chocks DIN81915 Chocks are made from carbon steel castings with good craftmanship, rope surface areas can be polished and upgraded to work with synthetic lines.
A comprehensive range of deck mounted DIN81915 chocks can be delivered with different Class Approval certificate like CCS, ABS, BV, LR, DNV, NK etc.
How to choose a suitable DIN Standard Chocks for your job, single chock or double chock, will depend primarily on the size of the vessel and the diameter of the lines. Anyhow, if you need any help, please donot hesitate to contact us for further discussion.

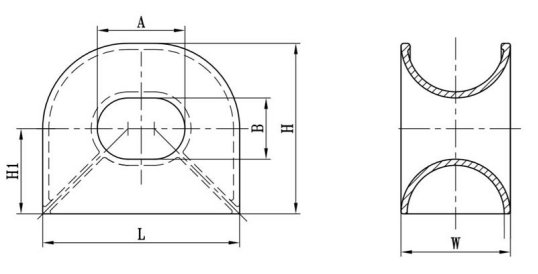

Type | Wire W.L(kn) | H | H1 | W | L | A | B | Weight(kg) |
C 2 | 20 | 315 | 158 | 200 | 360 | 160 | 115 | 26 |
C 3 | 30 | 390 | 195 | 250 | 450 | 200 | 140 | 42 |
C 5 | 50 | 480 | 240 | 300 | 550 | 250 | 180 | 74 |
C 8 | 80 | 585 | 293 | 360 | 680 | 320 | 225 | 120 |
C 12 | 125 | 710 | 355 | 440 | 840 | 400 | 270 | 185 |
C 20 | 200 | 840 | 420 | 520 | 1020 | 500 | 320 | 285 |
C 32 | 320 | 1100 | 550 | 700 | 1300 | 600 | 400 | 795 |
