Product Features: | |
Application: | Anchor for ship |
Material: | Alloy steel,Carbon steel,Casting |
Specification: | 105kgs to 45000kgs |
Surface: | Hot dip galvanizing |
Feature: | High holding power anchor |
Certification: | LR, ABS, BV, DNV, CCS, KR, NK, RMRS |

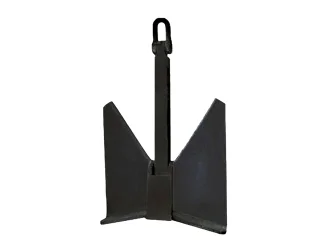

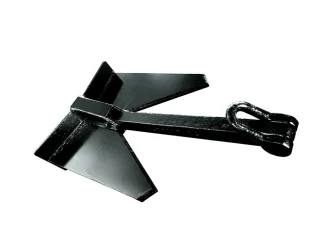

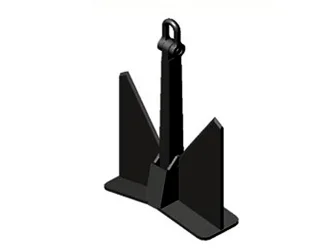

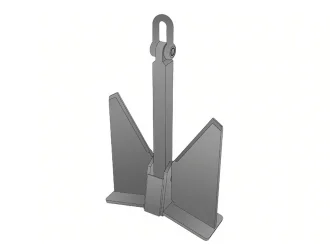

Pool TW anchors are High Holding Power anchors with large flat flukes and are a stockless anchor type. The Pool TW anchor has its main edges are honed for digging and are supplied with crownplates to prevent it digging in too deeply.
The Pool HHP TW anchor designed for marine use, particularly on larger vessels. These anchors are known for their large flukes and high efficiency in soft seabeds like clay, mud, and silt.

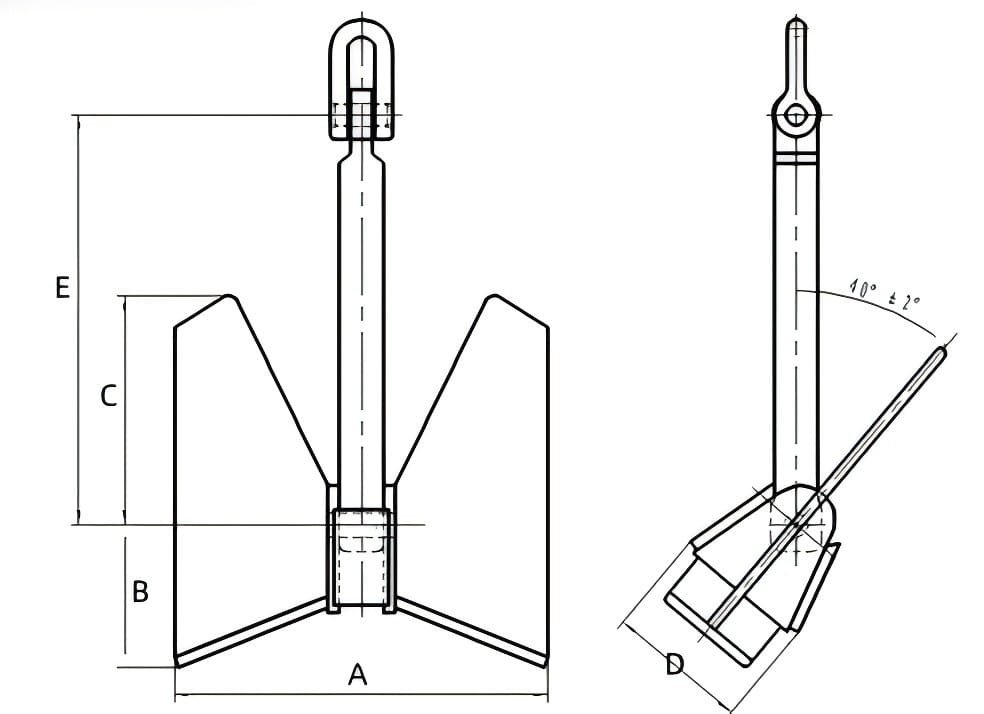

Norminal | Size(mm) | |||||
Weight(kg) | A | A1 | B | C | D | E |
105 | 648 | 658 | 252 | 422 | 240 | 710 |
135 | 705 | 716 | 274 | 459 | 261 | 773 |
160 | 746 | 758 | 290 | 486 | 276 | 818 |
180 | 776 | 787 | 301 | 505 | 287 | 850 |
270 | 888 | 902 | 342 | 573 | 326 | 965 |
300 | 920 | 933 | 357 | 598 | 340 | 1008 |
400 | 996 | 1010 | 386 | 648 | 374 | 1090 |
565 | 1136 | 1153 | 425 | 740 | 420 | 1245 |
675 | 1205 | 1224 | 468 | 785 | 446 | 1322 |
765 | 1257 | 1276 | 488 | 818 | 465 | 1378 |
855 | 1286 | 1306 | 500 | 841 | 482 | 1411 |
1000 | 1360 | 1380 | 528 | 885 | 503 | 1480 |
1130 | 1410 | 1430 | 547 | 917 | 521 | 1544 |
1305 | 1486 | 1509 | 579 | 973 | 556 | 1634 |
1440 | 1535 | 1560 | 596 | 1001 | 578 | 1683 |
1575 | 1584 | 1608 | 615 | 1032 | 596 | 1735 |
1710 | 1628 | 1651 | 632 | 1060 | 612 | 1782 |
1845 | 1670 | 1695 | 648 | 1087 | 628 | 1828 |
1980 | 1704 | 1731 | 667 | 1119 | 638 | 1880 |
2140 | 1754 | 1768 | 676 | 1135 | 655 | 1908 |
2665 | 1886 | 1912 | 732 | 1228 | 708 | 2064 |
3000 | 1972 | 2002 | 765 | 1285 | 742 | 2160 |
3690 | 2100 | 2130 | 815 | 1367 | 790 | 2298 |
4500 | 2236 | 2271 | 871 | 1462 | 836 | 2454 |
5515 | 2405 | 2440 | 933 | 1566 | 905 | 2634 |
6225 | 2504 | 2542 | 972 | 1632 | 942 | 2743 |
6975 | 2600 | 2640 | 1010 | 1695 | 978 | 2849 |
7875 | 2695 | 2735 | 1050 | 1773 | 1012 | 2980 |
8775 | 2797 | 2825 | 1089 | 1830 | 1056 | 3074 |
9675 | 2905 | 2934 | 1126 | 1888 | 1090 | 3172 |
10125 | 2941 | 2970 | 1143 | 1918 | 1108 | 3223 |
11025 | 3027 | 3057 | 1176 | 1974 | 1140 | 3317 |
12675 | 3161 | 3192 | 1230 | 2064 | 1192 | 3468 |
13350 | 3221 | 3253 | 1254 | 2104 | 1215 | 3535 |
14100 | 3295 | 3328 | 1276 | 2142 | 1237 | 3600 |
15000 | 3357 | 3380 | 1294 | 2166 | 1262 | 3640 |
16125 | 3443 | 3470 | 1326 | 2219 | 1293 | 3728 |
20000 | 3690 | 3727 | 1429 | 2399 | 1385 | 4030 |
25000 | 3986 | 4026 | 1544 | 2590 | 1496 | 4354 |
30000 | 4237 | 4270 | 1640 | 2754 | 1590 | 4626 |
35000 | 4460 | 4495 | 1725 | 2900 | 1674 | 4870 |
40000 | 4660 | 4697 | 1804 | 3029 | 1749 | 4926 |
45000 | 4847 | 4885 | 1876 | 3150 | 1818 | 5290 |
