Stud link anchor chains are a type of heavy-duty chain commonly used for anchoring and mooring vessels. They have a central stud in each link that helps to prevent kinking, deformation, and fouling. These chains are known for their strength and are often preferred for large vessels and applications where significant loads are involved.
Fishing chains have three specifications: short link chian, middle link chain and long link chain. Different types of fishing chains have different features.
Studless Fishing Anchor Chain are 62.5% load verified at break, very durable and able to withstand extreme and harsh weather use, it is also corrosion-resistant, ideal for use in saltwater environments. There are Short Link, Mid Link and Long Link to choose from.
Stud link anchor chains are a type of heavy-duty chain commonly used for anchoring and mooring vessels. They have a central stud in each link that helps to prevent kinking, deformation, and fouling. These chains are known for their strength and are often preferred for large vessels and applications where significant loads are involved.
The dual shank anchor features two parallel shanks that work together to embed and hold in various seabed conditions. This design provides higher holding power than traditional anchors, especially in soft ground and mud, and is commonly used in aquaculture and swing moorings.
ADA aqua drag anchor is improved version base on generation of aqua-moor DSA anchor, yet provides better performance.
A Sand Anchor has is a conventional anchor with solid construction to withstand high load.It has high holding power and weight ratio and very suitable for seabed of sand and mix Soil.
Mooring connection plates are manufactured using alloy grade material and followed by full heat treatment process.The durability ensures that the plates can withstand exposure to saltwater, reducing maintenance needs and extending the lifespan of the aquaculture setup.
Mooring shackles are manufactured with alloy steel by following ISO9001 Quality Control System. With our years know-how on forging, heat treatment and hot dip galvanized, it is ensured the mooring shackle avoid any Hydrogen Embrittle-ment and offer a longer fatigue life of safe performance compared to EN13889 requirement and safety.
We are able to produce OEM casting cast iron, ductile iron, and steel counterweights for various applications and mass. Our casting counterweight products are guarantee high quality and competitive prices, meeting international standards.
We are able to produce OEM casting cast iron, ductile iron, and steel counterweights for various applications and mass. Our casting counterweight products are guarantee high quality and competitive prices, meeting international standards.
AM3 is a designation for a grade of stud-link anchor chain, specifically referring to a high-strength steel chain used for ship anchoring and mooring. These chains are designed for durability and reliability in demanding marine applications, often used on large vessels or in harsh environmental conditions.
| Product Features: | |
| Application: | For Ship |
| Material: | Alloy Steel,Carbon Steel,Casting |
| Specification: | 100Kgs to 6000Kgs |
| Surface: | Hot Dip Galvanizing |
| Feature: | High Holding Power Anchor |
| Certification: | LR, ABS, BV, DNV, CCS, NK, KR, RMRS |

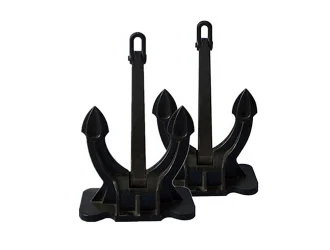

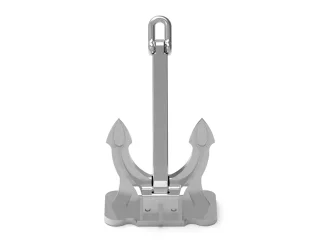

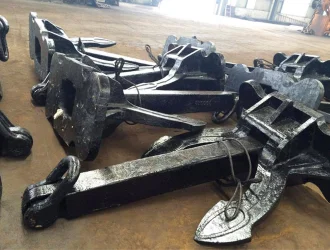

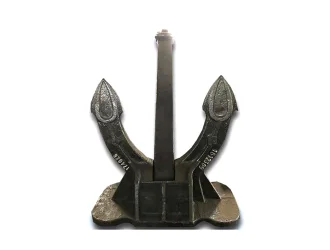

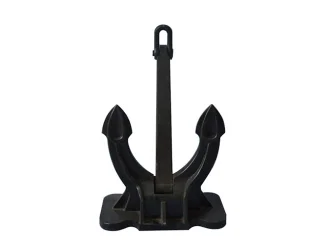

A marine Spek anchor, also known as a stockless anchor, is a common type of anchor used in commercial shipping and cruise vessels. It is designed with a compact, stockless design for easy handling and deployment, especially in shallow waters, and is known for its good holding power.
Key Features and Benefits:
Stockless Design:This design eliminates the need for a stock, making the anchor easier to store and maneuver, especially in anchor pockets.
Compact Size:Stockless anchors are smaller than traditional anchors with stocks, making them suitable for a variety of vessels, from small boats to large ships. Their simple design allows for quick and efficient anchoring, particularly in shallow waters.
Good Holding Power:Despite their compact size, stockless anchors can provide strong holding power in various sea floor conditions.
Reduced Damage to Hull:When retrieved, the flukes of a Spek anchor are designed to turn over when they contact the hull, preventing damage.
Common Applications:
Commercial Shipping: Used as a primary anchor on various commercial vessels.
Cruise Vessels: Used for anchoring large cruise ships.
Recreational Craft: Also suitable for smaller recreational boats due to their compact size and ease of handling.
Permanent Mooring: Used for permanent mooring of floating structures like buoys and light boats.

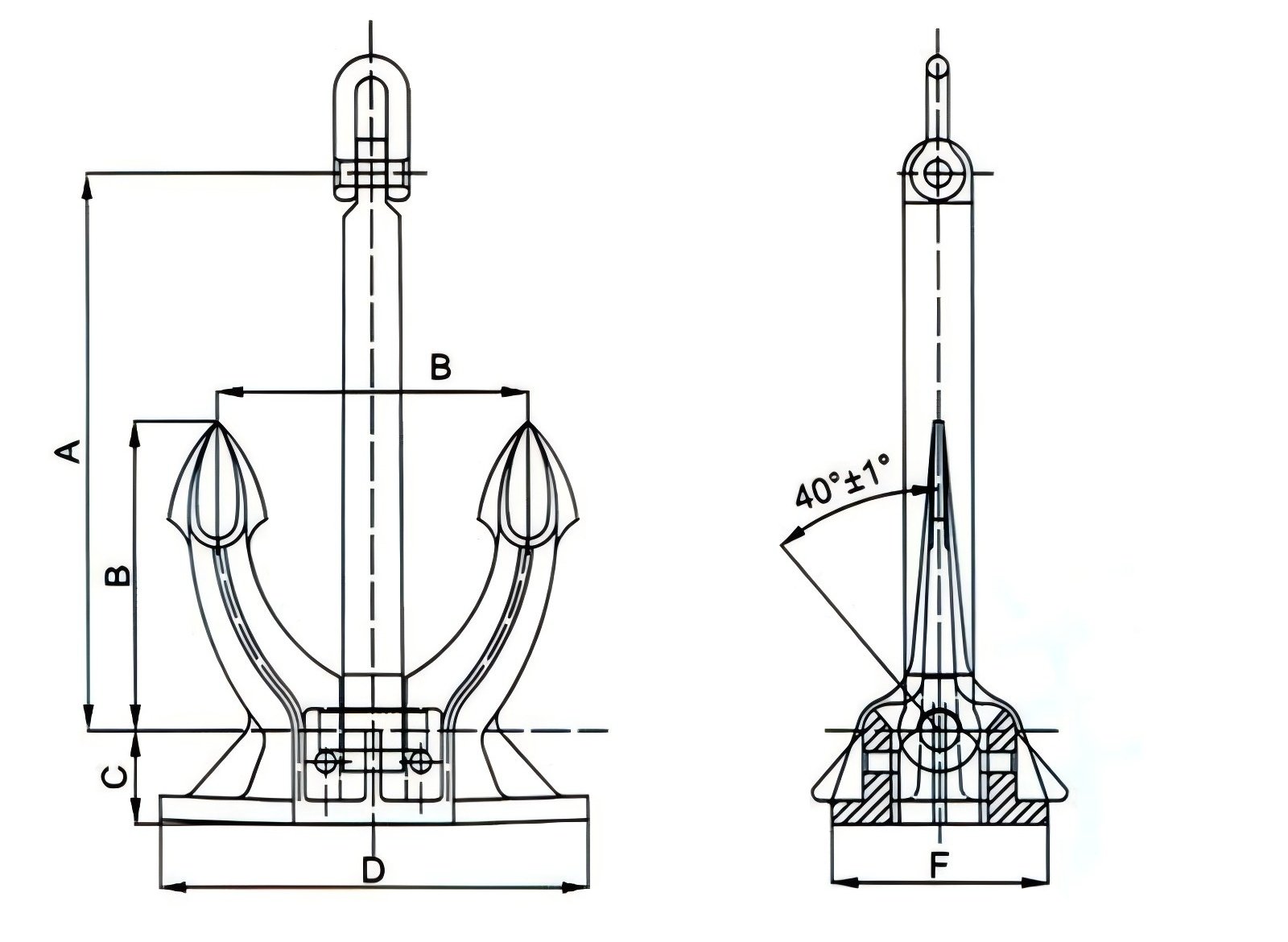

| Norminal | Size(mm) | ||||
| Weight(kg) | A | B | C | D | F |
| 100 | 672 | 373 | 112 | 515 | 250 |
| 150 | 770 | 428 | 128 | 590 | 290 |
| 240 | 900 | 500 | 150 | 690 | 358 |
| 300 | 990 | 550 | 166 | 760 | 398 |
| 420 | 1080 | 600 | 180 | 828 | 431 |
| 500 | 1170 | 650 | 196 | 900 | 446 |
| 660 | 1260 | 700 | 210 | 962 | 486 |
| 900 | 1440 | 800 | 240 | 1100 | 547 |
| 1020 | 1530 | 850 | 252 | 1170 | 573 |
| 1290 | 1710 | 900 | 268 | 1240 | 620 |
| 1590 | 1710 | 950 | 279 | 1300 | 671 |
| 1920 | 1850 | 1050 | 312 | 1454 | 704 |
| 2100 | 1890 | 1050 | 312 | 1454 | 717 |
| 2460 | 2010 | 1100 | 324 | 1514 | 764 |
| 2640 | 2070 | 1150 | 352 | 1584 | 794 |
| 3060 | 2155 | 1200 | 360 | 1650 | 820 |
| 3300 | 2155 | 1200 | 360 | 1650 | 834 |
| 3780 | 2400 | 1350 | 393 | 850 | 880 |
| 4050 | 2430 | 1350 | 393 | 1850 | 917 |
| 4590 | 2520 | 1400 | 413 | 1926 | 931 |
| 4890 | 2520 | 1400 | 413 | 1926 | 954 |
| 5250 | 2610 | 1450 | 414 | 2000 | 964 |
| 5610 | 2610 | 1450 | 414 | 2000 | 981 |
| 6000 | 2700 | 1500 | 446 | 2060 | 1006 |
