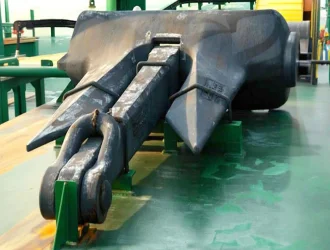

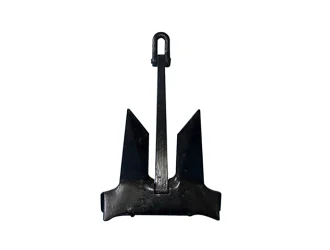

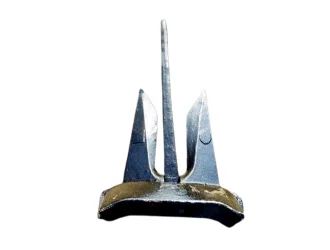

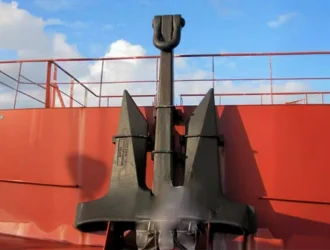

An AC-14 High Holding Power (HHP) anchor is a type of stockless anchor, designed for high holding power in various seabed conditions. It's a popular choice for large ships and vessels due to its good weight-to-performance ratio and ability to quickly dig into different types of soil like mud, soil, sand, and sandstone.
Here's a more detailed breakdown:
Stockless: Unlike traditional anchors with a stock (a crossbar), AC-14 anchors have a single piece casting for the crown, arms, and flukes, making them easier to handle and stow.
High Holding Power (HHP): AC-14 anchors are designed to have a high holding power, meaning they can resist the forces acting on them (like wind and current) when anchored.
Versatile: They can be used in a variety of seabeds, including mud, soil, sand, and sandstone.
Material: Typically made from casting steel.
Weight: The weight of an AC-14 HHP anchor can vary significantly, from 75 kg to 30,000 kg, depending on the specific application.
Finishes: Available in blacking painting or galvanization.
Certifications: Often supplied with classification society certificates like LR, ABS, BV, GL, DNV, KR, NK, IRS, and CCS

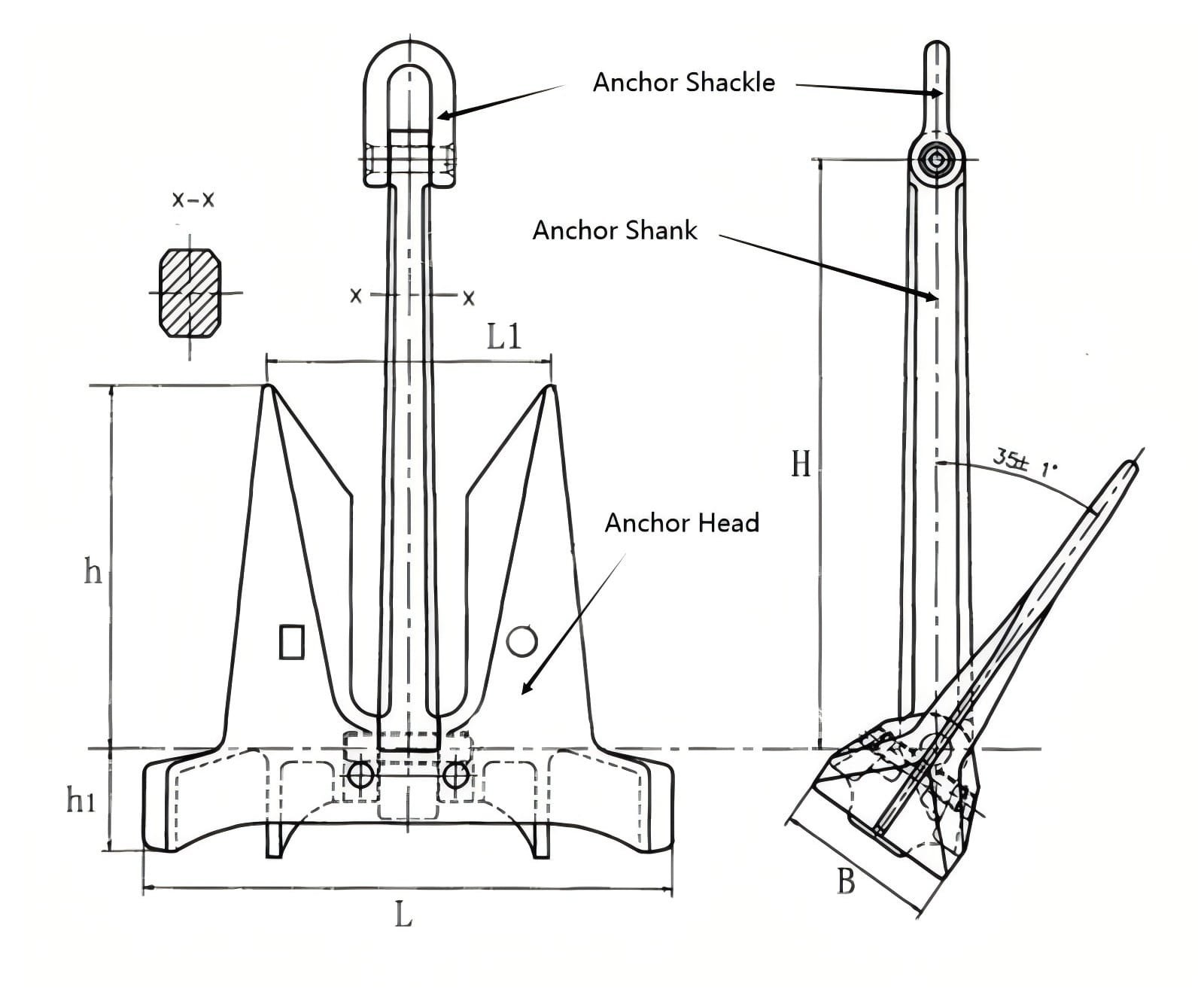

Drawings of AC-14 HHP Casting Steel Stockless Anchor:

Specification of AC-14 HHP Casting Steel Stockless Anchor:
Norminal | Size(mm) |
Weight(kg) | H | L1 | h |
300 | 1075 | 524 | 660 |
675 | 1410 | 690 | 868 |
750 | 1450 | 700 | 878 |
1080 | 1650 | 805 | 1014 |
1305 | 1760 | 858 | 1082 |
1710 | 1925 | 940 | 1184 |
1845 | 1975 | 965 | 1215 |
2835 | 2265 | 1105 | 1393 |
3550 | 2455 | 1198 | 1508 |
4500 | 2655 | 1295 | 1632 |
5610 | 2858 | 1396 | 1758 |
6900 | 3062 | 1496 | 1884 |
7800 | 3190 | 1558 | 1962 |
8300 | 3256 | 1590 | 2002 |
9900 | 3452 | 1686 | 2124 |
10575 | 3523 | 1720 | 2166 |
12900 | 3772 | 1842 | 2320 |
14100 | 3885 | 1896 | 2389 |
16900 | 4128 | 2016 | 2538 |
18800 | 4277 | 2088 | 2630 |
20000 | 4350 | 2101 | 2694 |
25000 | 5046 | 2437 | 3125 |
30000 | 5162 | 2558 | 3218 |
35000 | 5434 | 2693 | 3388 |
40000 | 5678 | 2814 | 3540 |
45000 | 5905 | 2926 | 3681 |
50000 | 6117 | 3031 | 3813 |
55000 | 6313 | 3128 | 3936 |
60000 | 6504 | 3223 | 4055 |
65000 | 6680 | 3310 | 4164 |
70000 | 6845 | 3392 | 4267 |
75000 | 7005 | 3471 | 4367 |
80000 | 7155 | 3545 | 4460 |
85000 | 7304 | 3620 | 4553 |
90000 | 7444 | 3688 | 4640 |
95000 | 7578 | 3755 | 4724 |
100000 | 7707 | 3819 | 4804 |
