Our company mass produces anchor chains for aquaculture, with and without gears, with diameters between 28MM-42MM. This one is painted black on the surface, which can effectively prevent seawater corrosion and is very suitable for use in seawater environments. Our chains have been verified by breaking load tensile tests and are very durable and can withstand extreme weather conditions. We have short chains, medium chains and long chains to choose from.

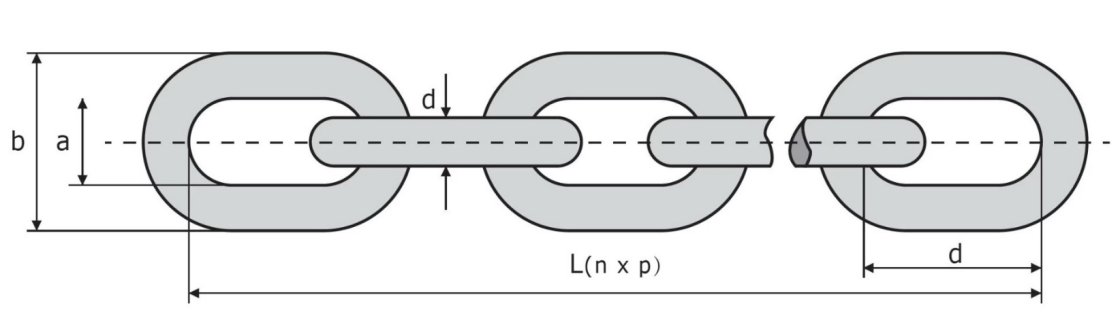

Drawings of Studless Fishing Anchor Chain Black Tar:

Specification of Studless Fishing Anchor Chain Black Tar:
Nominal | BM2 | BM3 | Weight(kg/m) |
Dia(mm) | MBL | PL | MBL | PL |
|
20.5 | 217.27 | 108.64 | 303.42 | 151.7 | 9.12 |
22 | 250.9 | 125.4 | 349.4 | 174.7 | 10.5 |
24 | 298.9 | 149.9 | 415.8 | 207.9 | 12.5 |
26 | 350.8 | 175.4 | 488 | 244 | 14.67 |
28 | 406.7 | 203.8 | 566 | 283 | 17 |
30 | 467.5 | 234.2 | 649.8 | 324.9 | 19.5 |
32 | 531.2 | 265.6 | 739.3 | 369.6 | 22.22 |
34 | 599.8 | 299.9 | 834.6 | 417.3 | 25.08 |
36 | 672.3 | 336.1 | 935.7 | 467.8 | 28.12 |
38 | 748.7 | 374.4 | 1042.6 | 521.3 | 31.33 |
40 | 829.1 | 414.5 | 1156.2 | 577.6 | 34.72 |
42 | 915.3 | 457.7 | 1273.6 | 636.8 | 38.28 |
44 | 999.6 | 502.7 | 1397.8 | 698.9 | 42.01 |
46 | 1097.6 | 548.8 | 1527.8 | 763.9 | 45.92 |
48 | 1195.6 | 597.8 | 1663.5 | 831.7 | 50 |
50 | 1293.6 | 648.8 | 1805 | 902.5 | 54.25 |
