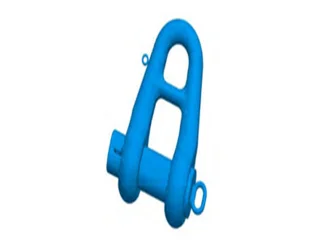

Mooring Buoy Shackle Type A

Product Features:
Application:	Connect anchor chains with the mooring buoys
Material:	Alloy steel CM490/CM690
Specification:	38mm to 90mm
Surface:	Hot Dip Galvanizing
Certification:	LR, ABS, BV, DNV, CCS, KR, NK, RMRS,etc

Mooring Buoy Shackle Type A

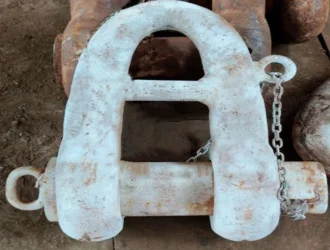

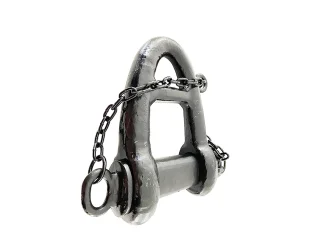

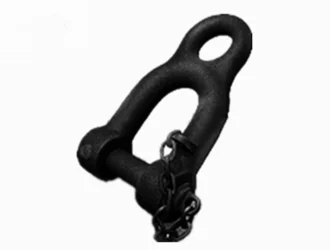

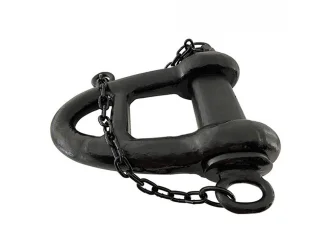

There are two types of mooring buoy shackles: Type A and Type B. Type A buoy shackles have two legs on the body connected by a strut. This shackle is connected to the common link of the anchor chain via a Kent-type connecting shackle. These shackles are usually made of steel forging and come in different sizes to suit different chain diameters.

Drawings of Mooring Buoy Shackle Type A：

Specification Of Mooring Buoy Shackle Type A：

Nominal Dia.	D1	D2	L	W	F	N	R	S	T
(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)
38	38	42	395	262	56	113	29	80	53
40	40	44	406	266	58	118	30	83	56
42	42	46	416	268	59	125	32	85	59
44	44	48	427	274	62	130	33	88	62
46	46	51	438	278	64	136	35	90	64
48	48	53	458	294	67	141	36	92	67
50	50	55	470	300	70	148	38	95	70
52	52	57	490	316	73	153	39	98	73
54	54	591	504	322	76	161	41	101	76
56	56	62	524	336	78	165	42	104	78
58	58	64	538	342	81	172	44	108	81
60	60	66	549	348	84	177	45	111	84
62	62	68	561	354	87	184	47	115	87
64	64	70	594	380	90	189	48	119	90
66	66	73	606	384	92	195	50	122	92
68	68	75	617	390	95	200	51	125	95
70	70	77	623	396	98	207	53	127	98
72	72	79	639	402	101	212	54	130	101
74	74	81	651	408	104	219	56	133	104
76	76	84	663	412	106	223	57	137	108
78	78	86	675	418	109	230	59	140	109
80	80	88	688	422	111	236	60	144	112
82	82	90	701	426	113	243	62	149	115
85	85	94	718	432	116	251	64	153	119
88	88	97	736	438	119	259	66	158	123
91	91	100	754	446	123	267	68	164	127
