Product Features: | |
Application: | Short lifting chains commonly used in industrial environments. |
Material: | 22MnCrNi,20CrNiMo,8620D,20Mn2 |
Technology: | Quenching,Temper |
Specification: | 6MM-32MM;Safety Factor:4:1 |
Surface Finish: Black painting: | Black painting,Self Color,Polishing,Painted Coating |
Certification: | ISO9001,EN818-2,G80 |

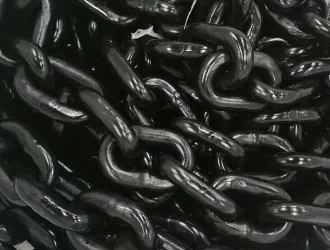

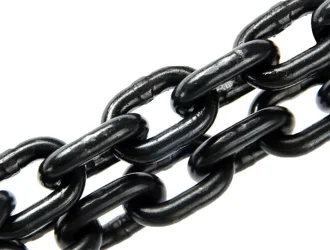

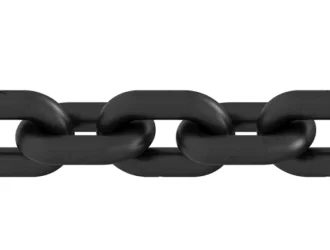

The G80 steel lifting chain of EN818-2 standard is a high-strength chain widely used in the field of hoisting and lifting. It is usually made of high-strength alloy steel materials, such as alloy steel containing chromium, nickel, molybdenum or 20Mn2, etc. It has excellent strength, toughness and wear resistance, can withstand large loads and extend service life. Chains of different sizes and specifications have different rated load levels to meet the needs of various lifting operations. Generally, it has a safety factor of 4 times, that is, the minimum breaking force of the chain is 4 times the working load limit, providing reliable and safe protection for lifting operations. It is widely used in heavy industry, ports, ships, construction sites, mines, electricity, metallurgy, automobile manufacturing and other fields for lifting, handling, lifting and other operations of goods. It can also be used in hauling, packaging, gardening and other scenes.

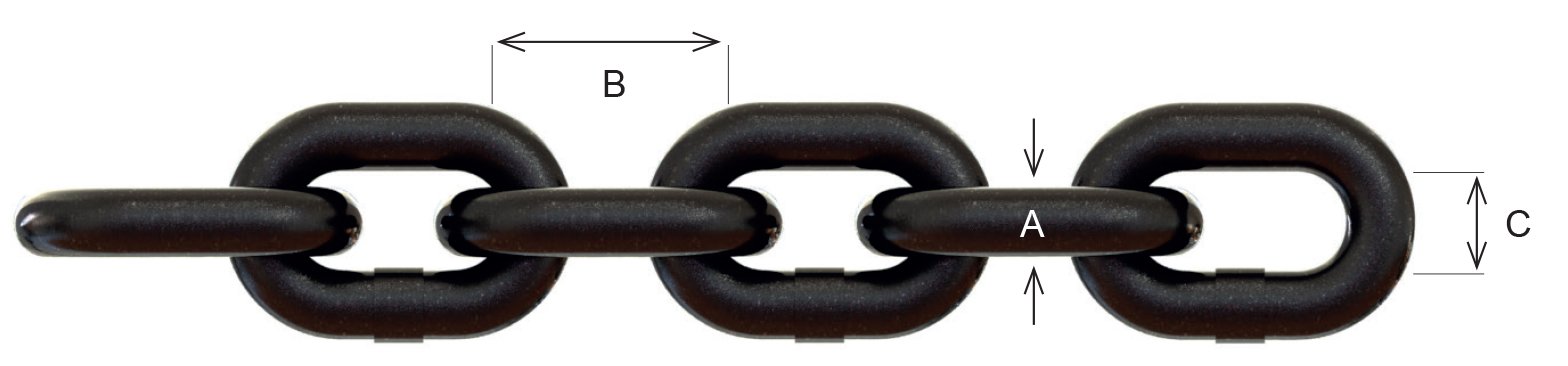

Diad(mm) | Pitchp (mm) | Weight (kg/m) | Working Load Limit (Kg/m) | Manuf. Proof Load (KN) | Breaking Load (KN) |
6 | 18 | 0.79 | 11 | 27 | 45.2 |
7 | 21 | 1.07 | 15 | 37 | 61.6 |
8 | 24 | 1.38 | 20 | 48 | 80.4 |
9 | 27 | 1.9 | 25 | 61 | 102 |
10 | 30 | 2.2 | 32 | 76 | 126 |
12 | 36 | 3.3 | 49 | 117 | 154 |
13 | 39 | 3.8 | 50 | 128 | 180.9 |
14 | 42 | 4.13 | 63 | 150 | 212 |
16 | 48 | 5.63 | 80 | 192 | 250 |
18 | 54 | 6.87 | 100 | 246 | 322 |
20 | 60 | 8.6 | 125 | 300 | 407 |
22 | 66 | 10.5 | 153 | 366 | 503 |
26 | 78 | 14.87 | 213 | 510 | 608 |
32 | 96 | 22.29 | 318 | 804 | 1280 |
