German DIN81915 Panama Chock
A panama chock is a special type of hawse hole at a vessel's bow and designed as per the mooring requirements set by Panama Canal Authority.
Products
hot-sale products
-
-
AM2 Stud Link Anchor Chain
Stud link anchor chain AM2 is a specific type of anchor chain widely used in marine applications. It's characterized by having a stud (a crossbar or bar) within each link, adding strength and preventing kinking or twisting. AM2 is a designation within the marine industry for a specific grade of this chain, indicating its strength and material properties.
-
Stud Link Anchor Chain Fish Chain
Stud link anchor chains are a type of heavy-duty chain commonly used for anchoring and mooring vessels. They have a central stud in each link that helps to prevent kinking, deformation, and fouling. These chains are known for their strength and are often preferred for large vessels and applications where significant loads are involved.
-
AM3 Stud Link Anchor Chain
Sinostar Marine is a manufacturer of AM2/AM3 stud link anchor chains.Can provide LR, DNV, CCS, ABS, BV and other classification society certification.
-
G2130 Bolt Type Anchor Shackle
A G2130 Bolt Type Anchor Shackle is a type of shackle, specifically a bolt-type shackle, used in lifting and rigging applications where a high level of security and reliability is required. These shackles are designed with a bolt, nut, and cotter pin, which provides a more secure connection than traditional screw-pin shackles, especially in situations where the shackle might experience rotation or movement under load.
G30 Proof Coil Chain ASTM80
| Product Features: | |
| Application: | Transmission chain, Drag chain, Conveyor chain,Link chain,Not to be used in overhead lifting |
| Material: | Alloy steel |
| Specification: | 3/16” to 3/4” |
| Surface: | Hot Dip Galvanizing |
| Standard: | DIN5685A/C,DIN764,DIN763,DIN766,DIN5686 Link chain |

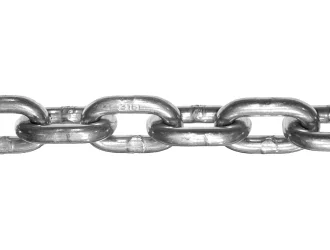

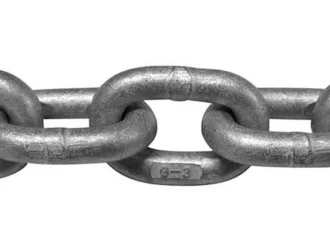

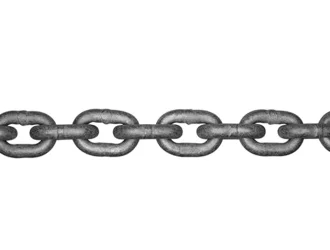

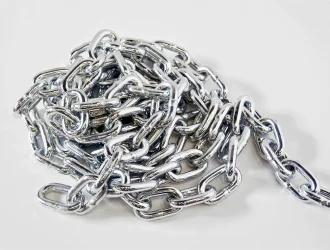

G30 Proof Coil Chain ASTM80
G30 Galvanized Proof Coil Chain, also known as ASTM80(G30), is a general-purpose, low carbon steel chain with a galvanized finish. It's designed for light-duty applications and is known for its resistance to wear and tear, making it suitable for various tasks. The galvanization provides a protective coating against rust and corrosion, enhancing its durability.
Specification of G30 Proof Coil Chain ASTM80:
| Nominal size D | Material diameter | Working load limit | Proof test (Min) | Breaking force (Min) | Inside length A | Inside width B | |||||||
| mm | in | mm | in | kg | lbs | kn | lbs | kn | lbs | mm | in | mm | in |
| 4 | 1/8" | 4 | 0.156 | 180 | 400 | 3.6 | 800 | 7.2 | 1600 | 23.9 | 0.94 | 6.4 | 0.25 |
| 5.5 | 3/16" | 5.5 | 0.217 | 365 | 800 | 7.2 | 1600 | 14.4 | 3200 | 24.8 | 0.98 | 7.7 | 0.3 |
| 7 | 1/4" | 7 | 0.276 | 580 | 1300 | 11.6 | 2600 | 23.2 | 5200 | 31.5 | 1.24 | 9.8 | 0.38 |
| 8 | 5/16" | 8.4 | 0.331 | 860 | 1900 | 16.9 | 3800 | 33.8 | 7600 | 32.8 | 1.29 | 11.2 | 0.44 |
| 10 | 3/8" | 10 | 0.394 | 1200 | 2650 | 23.5 | 5300 | 47.2 | 10600 | 35 | 1.38 | 14 | 0.55 |
| 11.9 | 7/16" | 11.9 | 0.488 | 1680 | 3700 | 32.9 | 7400 | 65.8 | 14800 | 41.5 | 1.64 | 16.6 | 0.65 |
| 13 | 1/2" | 13 | 0.512 | 2030 | 4500 | 40 | 9000 | 80 | 18000 | 45.5 | 1.79 | 18.2 | 0.72 |
| 16 | 5/8" | 16 | 0.63 | 3130 | 6900 | 61.3 | 13800 | 122.6 | 27600 | 56 | 2.2 | 20 | 0.79 |
| 20 | 3/4" | 20 | 0.787 | 4800 | 10600 | 94.3 | 21200 | 188.6 | 42400 | 70 | 2.76 | 25 | 0.98 |
| 22 | 7/8" | 22 | 0.866 | 5810 | 12800 | 114.1 | 25600 | 228.2 | 51200 | 77 | 3.03 | 27.5 | 1.08 |
| 26 | 1" | 26 | 1.02 | 8140 | 17900 | 159.1 | 35800 | 318.2 | 71600 | 90.9 | 3.58 | 31.7 | 1.25 |
