Product Features: | |
Material: | Cast steel material |
Diameter: | 14mm~68mm |
Treatment: | Anti-rust paint |
Suitable chain size: | According to your requirements |
Certification: | ISO9001, LR, ABS, DNV, BV, CCS, KR, RMRS, NK etc. |

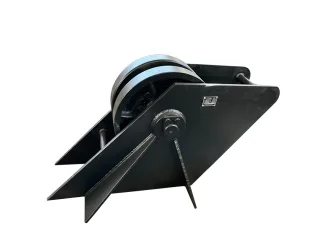

CB/T 290-1995 Type Chain Wheel installed between hawse pipe and chain stopper, material is casting steel or carbon fiber steel , it is a kind of marine chain roller which is used to avoid the friction between anchor chain and hawse pipe. Its surface is clean and smooth. There is no any defects such as air hole, crack which may affect chain wheel's strength. The roller is flexible to turn. It is anti-rust as well.

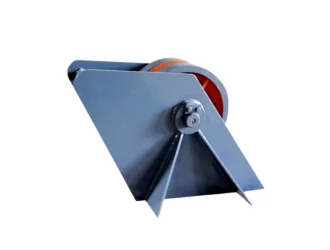

Model Type:CB T290-1995 Marine Chain Wheel
Material: Cast Steel
Standard:GB/T 290-1995
Nominal Diameter:14mm~68mm
Weight:200kg~832.3kg
Usage: applicable to medium and small size ships
Certificate: CCS,ABS,BV,NK,LR,RINA
Sinostar Marine is specialized in manufacturing and exporting marine equipment . To guarantee good quality, we follow ISO9000 standards to inspect our goods. From raw material purchase to pre-shipment inspection, we keep an eye on every step to ensure the satisfaction of our customer on quality , Our Anchor Chain Wheel are approved by ABS, BV, CCS, DNV, EC, GL, KR, LR, NK and RINA.
We can design and produce the Marine Chain Wheel according to the drawings and technical requirements you request. We guaranteed products at a competitive price and quality. At present, our products have a very good sale in domestic and overseas market.
We wish to cooperate with you to create a bright future and mutual benefit.

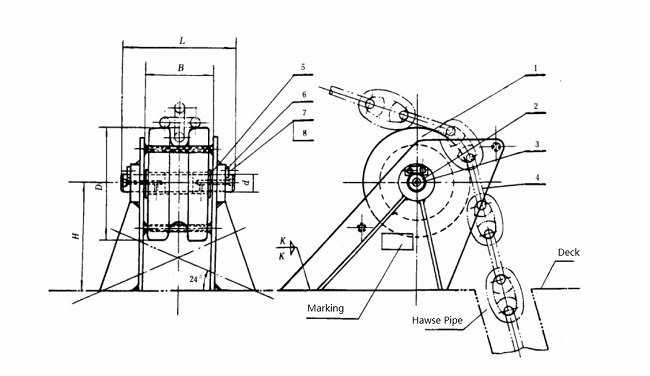

Model | Applicable chain diameter | D | d | L | B | H | Weight |
14 | 12.5-14 | 154 | 26 | 164 | 94 | 150 | 12.7 |
17.5 | 16-17.5 | 192 | 32 | 186 | 108 | 170 | 21 |
20.5 | 19-20.5 | 226 | 38 | 208 | 122 | 210 | 32.6 |
24 | 22-24 | 264 | 42 | 236 | 142 | 240 | 50 |
28 | 26-28 | 308 | 48 | 262 | 160 | 280 | 74 |
32 | 30-32 | 352 | 54 | 292 | 178 | 310 | 104.9 |
36 | 34-36 | 396 | 58 | 319 | 201 | 360 | 144.4 |
40 | 38-40 | 400 | 64 | 349 | 219 | 390 | 189.8 |
44 | 42-44 | 484 | 70 | 377 | 239 | 430 | 239.9 |
48 | 46-48 | 528 | 74 | 405 | 259 | 470 | 305.5 |
52 | 50-52 | 572 | 78 | 430 | 280 | 510 | 370.3 |
56 | 54-56 | 616 | 82 | 466 | 302 | 540 | 453.6 |
60 | 58-60 | 660 | 88 | 492 | 320 | 580 | 572.3 |
64 | 62-64 | 704 | 94 | 526 | 342 | 620 | 687.5 |
68 | 66-68 | 748 | 98 | 552 | 360 | 660 | 832.3 |
