Product Features: | |
Application: | It is used when the boat is moored |
Material: | Steel alloy metals |
Technology: | Caasting |
Surface: | Anti-rust paint |
Standard: | Adheres to the japanese industrial standard F2015 |
Certification: | ISO9001, LR, ABS, DNV, BV, CCS, KR, RMRS, NK etc |

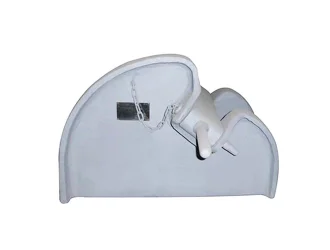

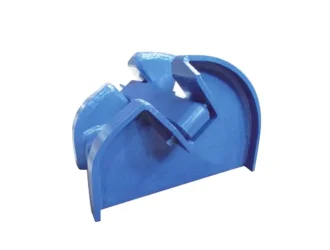

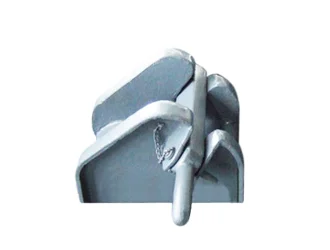

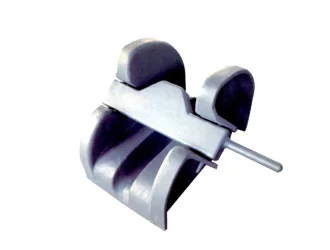

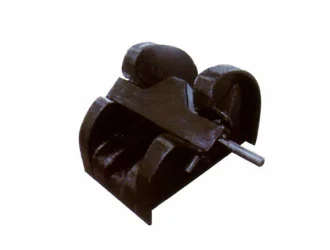

Application:JIS F2015-1987 bar type chain stopper is made of cast steel. It is a device used for ship mooring to prevent the anchor chain slipping out, according to JIS F2015 standard.We can supply different types of chain stoppers covering cast lever chain stopper, screw type chain stopper, bar type chain stopper, pawl type chain stopper etc.For more information, please feel free to contact us.
Features of JIS F2015 Cast Steel Chain Stopper:
1. Model Type: bar type chain cable stopper;
2. Material: cast steel;
3. Nominal Anchor Chain Diameter:38~78mm;
4. Nominal Weight: 111 to 682kg;
5. Finish: anti-rust paint;
6. Process: casting, forging, welding,painting;
7. Withstand 80% of chain cable’s minimum breaking load;
8. Certificate: ABS,CCS,BV,LR,NK etc;
9. Customized service is available.

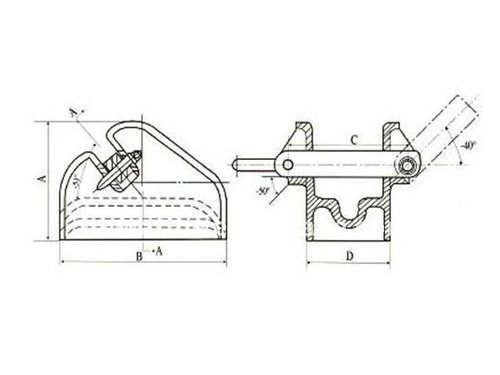

Applicable dia. | 12.5-14 | 16-17.5 | 19-20.5 | 22-24 | 26-28 | 30-32 | 34-36 | 38-40 | 42-44 | 46-48 | 50-52 | 54-56 | 58-60 | 62-64 | 66-68 |
B mm | 142 | 170 | 193 | 219 | 241 | 274 | 34 | 336 | 366 | 397 | 428 | 457 | 488 | 517 | 547 |
H mm | 162 | 190 | 216 | 241 | 270 | 305 | 342 | 378 | 412 | 450 | 491 | 528 | 564 | 600 | 635 |
L mm | 235 | 270 | 310 | 345 | 385 | 435 | 490 | 540 | 590 | 640 | 695 | 745 | 795 | 850 | 900 |
Weight(kg) | 22 | 29 | 36 | 45.5 | 58 | 74 | 92 | 115 | 145 | 183 | 225 | 271 | 352.5 | 424 | 509 |
