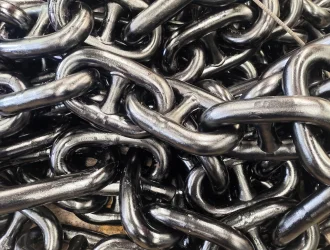

Chafe chains are critical protective components in marine mooring systems. Installed between the mooring line and the fairlead (guide hole), they effectively prevent the line from breaking due to repeated friction. Manufactured strictly according to OCIMF guidelines, these chains are suitable for tankers, FPSOs, buoys, and single-point mooring (SPM) operations.
Commonly Used Sizes
- Chafe Chains are available in standard nominal diameters including 76mm, 84mm, 102mm, and other sizes upon request.
Level Descriptions
- U3 Level – Standard high-strength mooring chain, meeting routine mooring requirements, with excellent overall mechanical properties and fatigue life.
Compliant with Standards
- OCIMF Guidelines: 2018 Edition 1 / 2007 Edition 4 / 1993 Edition 3
- Manufacturing and Inspection: IACS W22
- Classification Society Certification Available (DNV, ABS, LR, CCS, etc.)
Product Configuration (OCIMF Type A / B)
A typical single chafe chain (approx. 9–10 meters in total length) consists of the following components:
- PL + E + EL + C (approx. 23–25 links) + EL +E
Component types and lengths can be customized according to customer requirements.
Supporting Products: the Following Mooring Accessories are Also Available:
- Weak Links
- Kenter Shackles, Connecting Shackles
- Triangular Plates, Pear-Shaped Shackles
- Panama Fairleads, Smit Brackets
Chafe Chains Diagram:
