Stud link anchor chains are a type of heavy-duty chain commonly used for anchoring and mooring vessels. They have a central stud in each link that helps to prevent kinking, deformation, and fouling. These chains are known for their strength and are often preferred for large vessels and applications where significant loads are involved.
Fishing chains have three specifications: short link chian, middle link chain and long link chain. Different types of fishing chains have different features.
Studless Fishing Anchor Chain are 62.5% load verified at break, very durable and able to withstand extreme and harsh weather use, it is also corrosion-resistant, ideal for use in saltwater environments. There are Short Link, Mid Link and Long Link to choose from.
Stud link anchor chains are a type of heavy-duty chain commonly used for anchoring and mooring vessels. They have a central stud in each link that helps to prevent kinking, deformation, and fouling. These chains are known for their strength and are often preferred for large vessels and applications where significant loads are involved.
The Stingray Anchor is a high-efficiency drag embedment anchor designed for aquaculture and marine mooring. With holding power exceeding 40 times its own weight, it significantly outperforms conventional anchors of similar size.
The Sand Anchor has is a conventional anchor with solid construction to withstand high load.It has high holding power and weight ratio and very suitable for seabed of sand and mix Soil.
Mooring connection plates are manufactured using alloy grade material and followed by full heat treatment process.The durability ensures that the plates can withstand exposure to saltwater, reducing maintenance needs and extending the lifespan of the aquaculture setup.
Rope K3 Thimble is used for aquaculture mooring, where the surface needs to be heat-treated to protect wire, fibre or synthetic ropes.

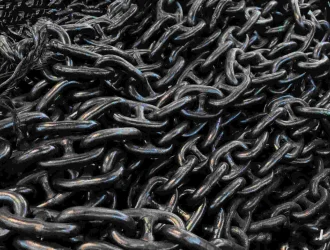

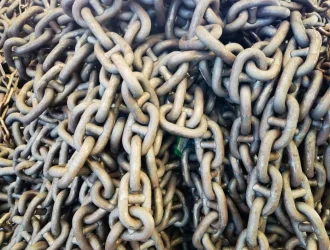

The 12.5mm Stud Link Anchor Chain is a heavy-duty marine chain primarily used in ship anchoring and mooring systems. Standard length (short link): typically supplied in 27.5-meter (15 fathom) lengths, connectable using Kenter shackles.
AM3 is a designation for a grade of stud-link anchor chain, specifically referring to a high-strength steel chain used for ship anchoring and mooring. These chains are designed for durability and reliability in demanding marine applications, often used on large vessels or in harsh environmental conditions.
Stud link anchor chain AM2 is a specific type of anchor chain widely used in marine applications. It's characterized by having a stud (a crossbar or bar) within each link, adding strength and preventing kinking or twisting. AM2 is a designation within the marine industry for a specific grade of this chain, indicating its strength and material properties.
Anchor Chain for marine farm mooring system, with diameter 16mm to 50mm, most used in European fish farming industry.
| Product Features: | |
| Application: | Mooring, Ship |
| Material: | Alloy Steel, CM490/CM690 |
| Specification: | 12.5MM |
| Surface: | Black Tar, Self Color |
| Certification: | LR, ABS, DNV, BV, CCS, KR, RMRS, NK etc. |
The 12.5mm Stud Link Anchor Chain is a heavy-duty marine chain primarily used in ship anchoring and mooring systems. Standard length (short link): typically supplied in 27.5-meter (15 fathom) lengths, connectable using Kenter shackles.
Due to its strength and design features, the Stud Link Anchor Chain is specifically designed for harsh marine environments. Its main applications include:
Anchor chain: This is its primary use, for connecting the ship's anchor to the hull.
Mooring chain: Used in permanent mooring systems or as a grounding chain.
Abrasion-resistant chain: Sometimes used in offshore mooring systems to protect other components.

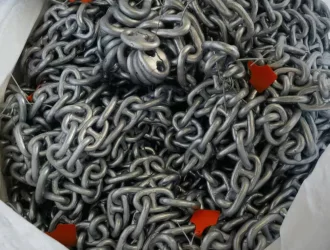

SMEOCEAN: 12.5 mm stud-link chain ex-stock—LR/ABS certs, ship today.
| Nominal | AM2 | AM3 | Weight（kg/m) | ||
| Dia/mm | MBL | PL | MBL | PL | - |
| 12.5 | 92 | 66 | 132 | 92 | 3.42 |
| 14 | 116 | 82 | 165 | 116 | 4.29 |
| 16 | 150 | 107 | 216 | 150 | 5.61 |
| 17.5 | 179 | 127 | 256 | 179 | 6.71 |
| 19 | 211 | 150 | 301 | 211 | 7.91 |
| 20.5 | 244 | 175 | 349 | 244 | 9.2 |
| 22 | 280 | 200 | 401 | 280 | 10.6 |
| 24 | 332 | 237 | 476 | 332 | 12.61 |
| 26 | 389 | 278 | 556 | 389 | 14.8 |
| 28 | 449 | 321 | 642 | 449 | 17.17 |
| 30 | 514 | 368 | 735 | 514 | 19.71 |
| 32 | 583 | 417 | 833 | 583 | 22.43 |
| 34 | 655 | 468 | 937 | 655 | 25.32 |
| 36 | 732 | 523 | 1050 | 732 | 28.38 |
| 38 | 812 | 581 | 1160 | 812 | 31.62 |
| 40 | 895 | 640 | 1280 | 895 | 35.04 |
| 42 | 981 | 703 | 1400 | 981 | 38.63 |
| 44 | 1080 | 769 | 1540 | 1080 | 42.4 |
| 46 | 1170 | 837 | 1680 | 1170 | 46.34 |
| 48 | 1270 | 908 | 1810 | 1270 | 50.46 |
| 50 | 1370 | 981 | 1960 | 1370 | 54.75 |
1. Is 12.5mm the Smallest Stud Link Anchor Chain Size?
Yes. Stud link anchor chains typically start from 12.5mm. Smaller diameters are only available in studless chain, as the link needs enough space for the stud to be welded inside.
2. Where is It Mainly Used?
Small fishing vessels, yachts (10-20 meters), and inland waterway vessels. Larger commercial ships generally use 16mm and above.
3. What Grades are Available? Which is Most Common?

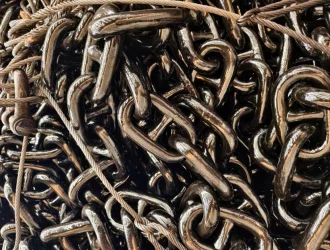

U2 and U3. U2 is the most commonly used grade – best cost-performance ratio. U3 is harder to manufacture at 12.5mm and has much lower sales volume.
4. Can It Be Hot-Dip Galvanized?
Technically yes, but not recommended. For small diameter chains, hot-dip galvanizing can affect material strength and carries a risk of hydrogen embrittlement. Black paint or self color finish are the usual choices.
5. What Accessories Are Available?
SMEOCEAN offers Kenter shackles, anchor shackles, swivels, end links (E), and enlarged links (EL) for 12.5mm stud link chains – all available with the same class certification as the chain.
