Product Features: | |
Application: | Lashing chains,Connectingchains, Connectingchains |
Material: | 20Mn2 steel |
Specification: | 9mm/11mm/13mm |
Working load tension: | 11mm 8Tons |
Surface: | Hot dip galvanizing,Powder coated |
Color: | Colorful paint |

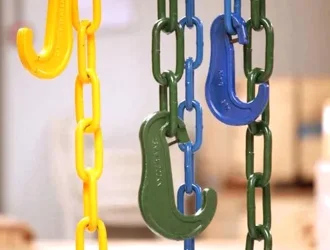

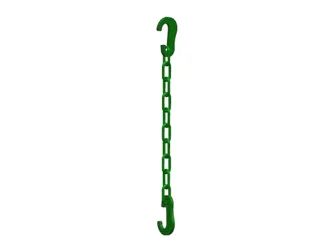

The long link lashing Chains with hook for Tensile with good wear charcteristics ideal for most binder applications are widely used in Transporting, Cargo Lashing, Binding, and Industry operations.

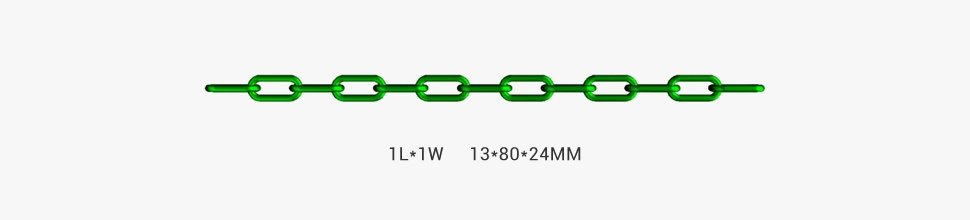

The long link lashing chains are made from 20Mn2 steel and are available as 9mm*52mm*16mm (MBL 10T), 11mm*66mm*20mm (MBL 15T) and 13mm*80mm*24mm Lashing Chain (MBL 20T). All our lashing chains are 100% proof load tested during production.

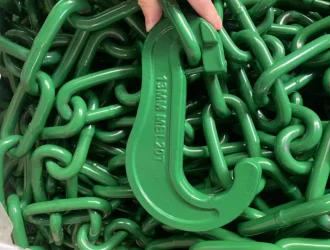

As standard the forged fittings are marked with size, MBL and batch code for traceability. On request we can offer customer-specific markings. Every delivery comes with a factory test certificate incl. product description, raw material details, traceability codes and MBL test diagram.

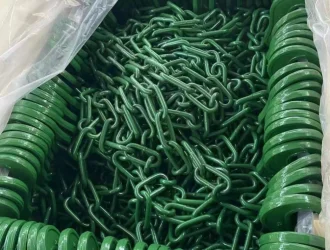

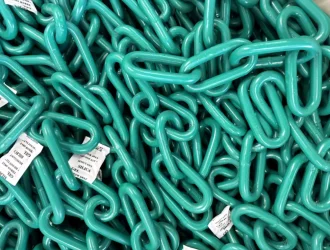

The long link lashing chains are available with different surfaces: normal painted, electro galvanized, electro galvanized + additional painting and hot dip galvanized. We can offer various paint colours, please contact to discuss your requirements.
As end-fittings we offer a complete range consisting of C-hooks, eye hooks, shackles & elephant foot. For tightening the lashing chains, we offer a full range of tensioners, chain turnbuckles, hamburger turnbuckles, speed lashes and load binders.
Nominal size | Material diameter tolerance | Weld dia(mm) | Pitch | Weight (Kg/m) | WLL(Ton.) | MBL(Ton.) | ||
- | - | - | Pn | p max. | p min. | - | - | - |
9MM | ±0.32mm | 9.9 | 9 | 55 | 16 | 1.55 | 2.5 | 10 |
11MM | ±0.4mm | 12.1 | 11 | 66 | 20 | 2.2 | 3.75 | 15 |
13MM | ±0.52mm | 14.3 | 13 | 80 | 24 | 3 | 5 | 20 |
