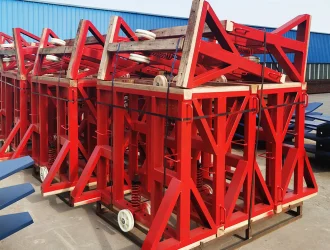

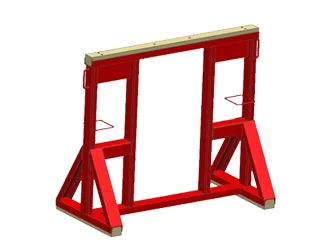

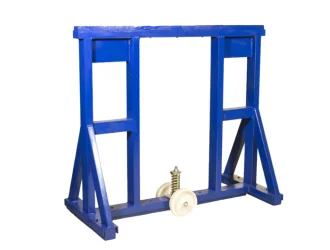

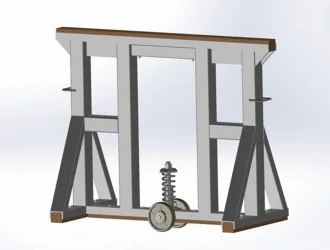

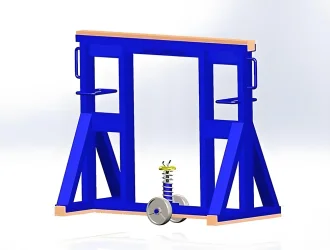

Trailer horse for securing of trailers during shipment on Ro- Ro vessel, with rubber or wood pads on top to prevent the trailer from scratch.
Different breaking load and dimensions available upon request. The standard height is 1250mm which is dimensioned for standard trucks, but special height models can be manufactured upon request.
The new Trailer Jack from SMEOCEAN makes a valuable contribution to enhanced safety when loading and unloading semi-trailers and swap bodies.
The telescopic loading support prevents unhitched semi-trailers from tipping over when driven over by industrial trucks or in the event of load changes. Like a third leg, the support is positioned under the front edge or suspension area of the semi-trailer or swap body.
Trade associations require additional support equipment to be in place when loading and unloading semi-trailers.
Benefits:
Simple handling,fast positioning,Compact design
Ball-bearing-mounted head plate
Breaking load is usually between 80T and 120T.

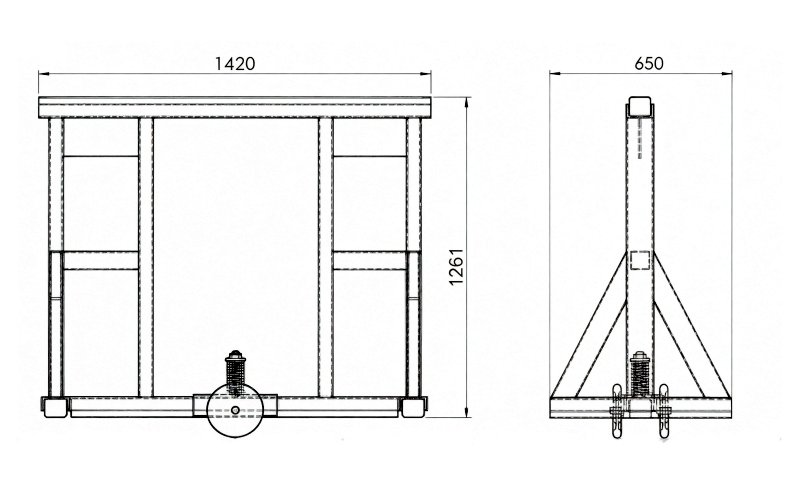

Drawing of Trailer Horses Lashing Equipment:

Specification of Trailer Horses Lashing Equipment:
Dimensions | L=1500mm |
Material | Square tube steel & hardwood |
Finish | Painted, customized color |
Loose fixed | Loose container lashing material |
Remarks | To be supported by trailers |
Weight | 140kg |
Category | Ro-Ro lashing securing |
