Fishing Chains
Fishing chains have three specifications: short link chian, middle link chain and long link chain. Different types of fishing chains have different features.
Products
hot-sale products
-
-
Studless Anchor Chain Fishing
Studless Fishing Anchor Chain are 62.5% load verified at break, very durable and able to withstand extreme and harsh weather use, it is also corrosion-resistant, ideal for use in saltwater environments. There are Short Link, Mid Link and Long Link to choose from.
-
Stud Link Anchor Chain for Fish Chain
Stud link anchor chains are a type of heavy-duty chain commonly used for anchoring and mooring vessels. They have a central stud in each link that helps to prevent kinking, deformation, and fouling. These chains are known for their strength and are often preferred for large vessels and applications where significant loads are involved.
-
Dual Shank Anchor
The dual shank anchor features two parallel shanks that work together to embed and hold in various seabed conditions. This design provides higher holding power than traditional anchors, especially in soft ground and mud, and is commonly used in aquaculture and swing moorings.
-
ADA Aqua Drag Anchor
ADA aqua drag anchor is improved version base on generation of aqua-moor DSA anchor, yet provides better performance.
-
Sand Plough Anchor
A Sand Anchor has is a conventional anchor with solid construction to withstand high load.It has high holding power and weight ratio and very suitable for seabed of sand and mix Soil.
-
Aquaculture Mooring Plates
Mooring connection plates are manufactured using alloy grade material and followed by full heat treatment process.The durability ensures that the plates can withstand exposure to saltwater, reducing maintenance needs and extending the lifespan of the aquaculture setup.
-
Aquaculture Mooring Shackle
Mooring shackles are manufactured with alloy steel by following ISO9001 Quality Control System. With our years know-how on forging, heat treatment and hot dip galvanized, it is ensured the mooring shackle avoid any Hydrogen Embrittle-ment and offer a longer fatigue life of safe performance compared to EN13889 requirement and safety.
-
AM3 Stud Link Anchor Chain
AM3 is a designation for a grade of stud-link anchor chain, specifically referring to a high-strength steel chain used for ship anchoring and mooring. These chains are designed for durability and reliability in demanding marine applications, often used on large vessels or in harsh environmental conditions.
-
AM2 Stud Link Anchor Chain
Stud link anchor chain AM2 is a specific type of anchor chain widely used in marine applications. It's characterized by having a stud (a crossbar or bar) within each link, adding strength and preventing kinking or twisting. AM2 is a designation within the marine industry for a specific grade of this chain, indicating its strength and material properties.
-
HDG Studless Anchor Chian
Anchor Chain for marine farm mooring system, with diameter 16mm to 50mm, most used in European fish farming industry.
-
Type D End Anchor Shackle
An Anchor Shackle Type D End Shackle is a specific type of shackle used in marine applications, particularly for connecting anchor chains. It's a D-shaped fitting with a removable pin, designed to safely connect the anchor's standard shackle to the chain or to a rope with a thimble.
Grade 100 Lifting Chain EN818-8
| Product Features: | |
| Application: | Ideal for chain hoists, Slings, Heavy-duty overhead lifting. |
| Material: | 20CrNiMo、8620D |
| Specification: | 6mm-22mm; Safety Factor:4:1 |
| Surface Finish: | Black Oxide, Natural/Polished, Powder Coating, Zinc Plated |
| Certification: | EN818-8, ABS, DNV, BV, CCS |
| Packaging: | Drum + Pallet |

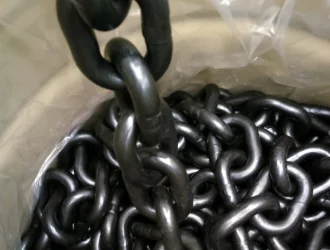

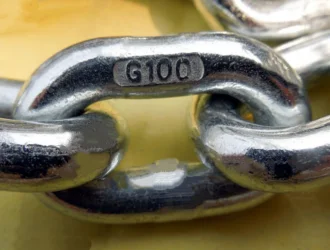

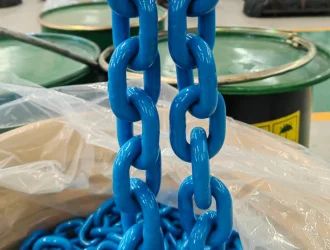

Grade 100 Lifting Chain EN818-8
The G100 lifting chain (CHAIN-G10) is made of special alloy steel, quenched and tempered, and conforms to EN818-8 standard (Grade 100). Compared to the common G80 chain, it increases the working load by approximately 25% at the same diameter and has better fatigue resistance. The chain has a safety factor of 4:1 and factory test certificates and classification society certifications are available.
G100 chains are widely used in chain hoists, chain slings, engineering lifting, and offshore operations. Its biggest advantage is that when performing the same lifting task, a chain one size thinner than G80 can be selected (e.g., G100 8mm instead of G80 10mm), reducing the chain weight by approximately 36%. It can also be paired with smaller, lighter hooks and shackles, reducing the overall cost of the lifting equipment and the labor intensity of the operators.

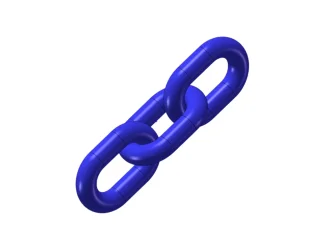

G100 Chain EN818-8 Diagram:
