Stud link anchor chains are a type of heavy-duty chain commonly used for anchoring and mooring vessels. They have a central stud in each link that helps to prevent kinking, deformation, and fouling. These chains are known for their strength and are often preferred for large vessels and applications where significant loads are involved.
Fishing chains have three specifications: short link chian, middle link chain and long link chain. Different types of fishing chains have different features.
Studless Fishing Anchor Chain are 62.5% load verified at break, very durable and able to withstand extreme and harsh weather use, it is also corrosion-resistant, ideal for use in saltwater environments. There are Short Link, Mid Link and Long Link to choose from.
Stud link anchor chains are a type of heavy-duty chain commonly used for anchoring and mooring vessels. They have a central stud in each link that helps to prevent kinking, deformation, and fouling. These chains are known for their strength and are often preferred for large vessels and applications where significant loads are involved.
The dual shank anchor features two parallel shanks that work together to embed and hold in various seabed conditions. This design provides higher holding power than traditional anchors, especially in soft ground and mud, and is commonly used in aquaculture and swing moorings.
A Sand Anchor has is a conventional anchor with solid construction to withstand high load.It has high holding power and weight ratio and very suitable for seabed of sand and mix Soil.
Mooring connection plates are manufactured using alloy grade material and followed by full heat treatment process.The durability ensures that the plates can withstand exposure to saltwater, reducing maintenance needs and extending the lifespan of the aquaculture setup.
Rope K3 Thimble is used for aquaculture mooring, where the surface needs to be heat-treated to protect wire, fibre or synthetic ropes.
The 12.5mm Stud Link Anchor Chain is a heavy-duty marine chain primarily used in ship anchoring and mooring systems. Standard length (short link): typically supplied in 27.5-meter (15 fathom) lengths, connectable using Kenter shackles.
AM3 is a designation for a grade of stud-link anchor chain, specifically referring to a high-strength steel chain used for ship anchoring and mooring. These chains are designed for durability and reliability in demanding marine applications, often used on large vessels or in harsh environmental conditions.
Stud link anchor chain AM2 is a specific type of anchor chain widely used in marine applications. It's characterized by having a stud (a crossbar or bar) within each link, adding strength and preventing kinking or twisting. AM2 is a designation within the marine industry for a specific grade of this chain, indicating its strength and material properties.
Anchor Chain for marine farm mooring system, with diameter 16mm to 50mm, most used in European fish farming industry.
| Product Information: | |
| Material: | Cast Iron or Cast Steel |
| Surface: | Sandblasting then Painted Epoxy |
| Capacity: | 15Ton to 50Ton |
| Color： | Colorful Paint |
| Customize: | Acceptable |
| Certification: | LR, ABS, DNV, BV, CCS, KR, RMRS, NK etc. |

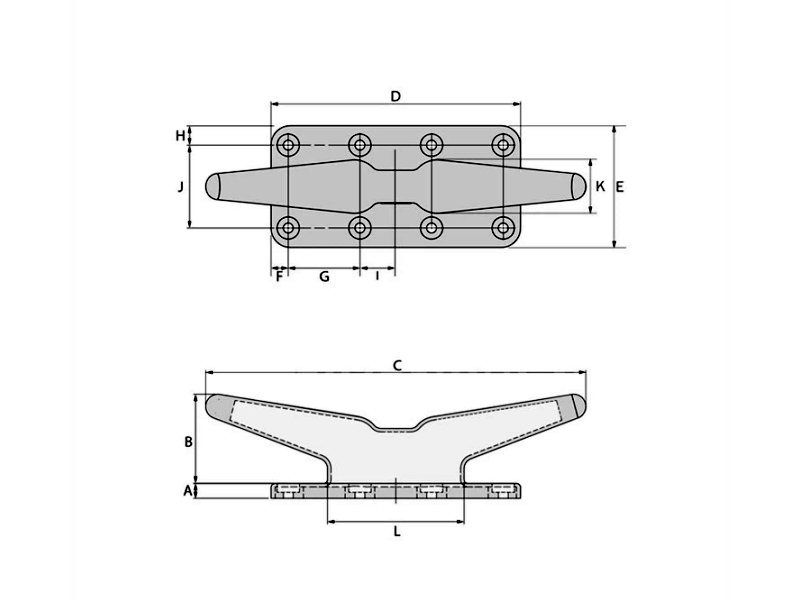

When it comes to securing boats at marinas, docks, or vessel decks, marine cleat bollards are one of the most essential pieces of mooring equipment. Also known as horn cleat bollards, these compact yet robust fittings are specifically designed for small watercraft, offering a mooring line capacity ranging from 5 tonnes to 35 tonnes.
Unlike large bitt bollards used for commercial ships, cleat bollards feature a low-profile, twin-horn design that allows crews to easily loop and secure ropes from any angle. Whether you need dock cleat bollards for a public marina, deck mounted mooring cleats for a tugboat, or corrosion-resistant cast iron bollards for a shipyard, the right cleat bollard ensures safety, efficiency, and long-term durability.
At SMEOCEAN, we manufacture and supply high-quality marine cleat bollards for global B2B customers. Our products are available in standard capacities from 5t to 35t, with custom casting options to meet specific project requirements. Each bollard is designed to withstand harsh marine environments, delivering reliable mooring performance year after year.
Explore the specifications below, or contact us directly for a quote on custom cleat bollards.
