Stud link anchor chains are a type of heavy-duty chain commonly used for anchoring and mooring vessels. They have a central stud in each link that helps to prevent kinking, deformation, and fouling. These chains are known for their strength and are often preferred for large vessels and applications where significant loads are involved.
Fishing chains have three specifications: short link chian, middle link chain and long link chain. Different types of fishing chains have different features.
Studless Fishing Anchor Chain are 62.5% load verified at break, very durable and able to withstand extreme and harsh weather use, it is also corrosion-resistant, ideal for use in saltwater environments. There are Short Link, Mid Link and Long Link to choose from.
Stud link anchor chains are a type of heavy-duty chain commonly used for anchoring and mooring vessels. They have a central stud in each link that helps to prevent kinking, deformation, and fouling. These chains are known for their strength and are often preferred for large vessels and applications where significant loads are involved.
The Stingray Anchor is a high-efficiency drag embedment anchor designed for aquaculture and marine mooring. With holding power exceeding 40 times its own weight, it significantly outperforms conventional anchors of similar size.
The Sand Anchor has is a conventional anchor with solid construction to withstand high load.It has high holding power and weight ratio and very suitable for seabed of sand and mix Soil.
Mooring connection plates are manufactured using alloy grade material and followed by full heat treatment process.The durability ensures that the plates can withstand exposure to saltwater, reducing maintenance needs and extending the lifespan of the aquaculture setup.
Rope K3 Thimble is used for aquaculture mooring, where the surface needs to be heat-treated to protect wire, fibre or synthetic ropes.
The 12.5mm Stud Link Anchor Chain is a heavy-duty marine chain primarily used in ship anchoring and mooring systems. Standard length (short link): typically supplied in 27.5-meter (15 fathom) lengths, connectable using Kenter shackles.
AM3 is a designation for a grade of stud-link anchor chain, specifically referring to a high-strength steel chain used for ship anchoring and mooring. These chains are designed for durability and reliability in demanding marine applications, often used on large vessels or in harsh environmental conditions.
Stud link anchor chain AM2 is a specific type of anchor chain widely used in marine applications. It's characterized by having a stud (a crossbar or bar) within each link, adding strength and preventing kinking or twisting. AM2 is a designation within the marine industry for a specific grade of this chain, indicating its strength and material properties.
Anchor Chain for marine farm mooring system, with diameter 16mm to 50mm, most used in European fish farming industry.
| Product Information: | |
| Application: | Off Shore or Anchor for Ship |
| Material: | Alloy Steel Q355,Casting |
| Specification: | 300Kgs to 10000Kgs |
| Surface: | Hot Dip Galvanizing |
| Standard: | European Standard/USA ASTM 80 |
| Certificate: | LR, ABS, BV, DNV, CCS, KR, NK, RMRS,etc |

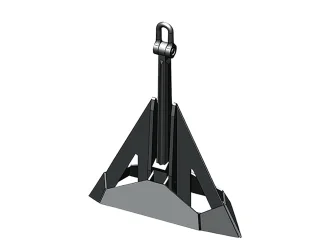

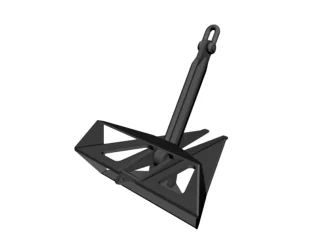

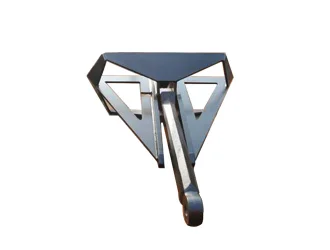

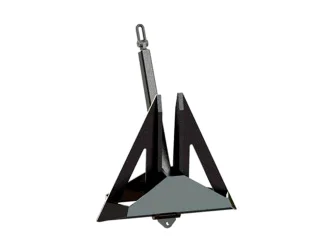

A marine Delta Flipper Anchor is a type of high holding power (HHP) anchor known for its ease of handling and rapid penetration in various soil conditions. It's characterized by an open construction that allows for smooth penetration and has a design that prevents rotation, ensuring no loss of holding power and minimal dragging. These anchors are widely used in offshore and dredging industries, offering a good balance of holding power and efficiency.

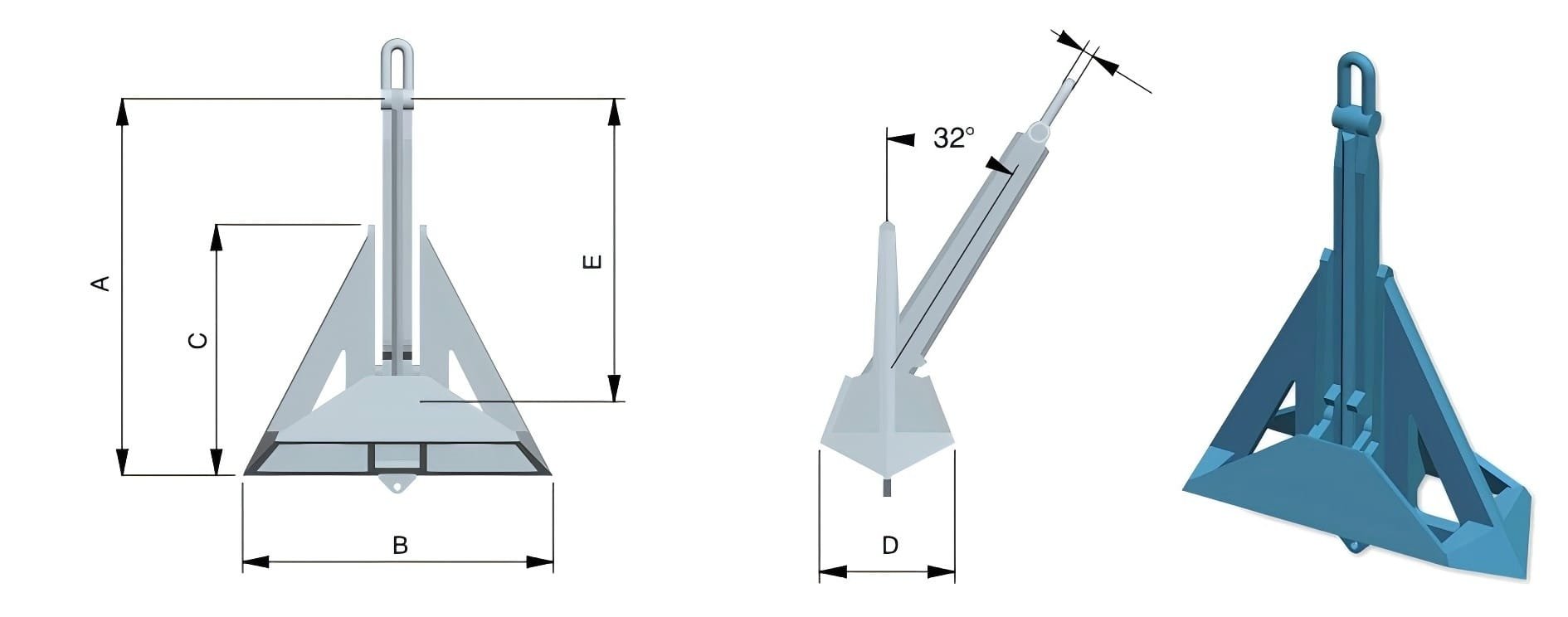

| Norminal | Size(MM) | ||||
| Weight(Kg) | A | B | D | C | E |
| 300 | 1550 | 1310 | 495 | 370 | 1180 |
| 500 | 1845 | 1550 | 585 | 445 | 1400 |
| 750 | 2110 | 1780 | 665 | 510 | 1600 |
| 1000 | 2320 | 1960 | 740 | 565 | 1755 |
| 1500 | 2660 | 2250 | 840 | 635 | 2025 |
| 2000 | 2960 | 2470 | 930 | 710 | 2250 |
| 2500 | 3150 | 2660 | 1005 | 815 | 2395 |
| 3000 | 3380 | 2830 | 1070 | 910 | 2565 |
| 4000 | 3790 | 3180 | 1190 | 920 | 2880 |
| 4500 | 3820 | 3194 | 1220 | 950 | 2900 |
| 5000 | 3945 | 3300 | 1260 | 1024 | 2995 |
| 6000 | 4269 | 3560 | 1300 | 1075 | 3245 |
| 7000 | 4440 | 3750 | 1405 | 1170 | 3365 |
| 9000 | 4860 | 4120 | 1540 | 1215 | 3690 |
| 10000 | 5040 | 4270 | 1600 | 1340 | 3825 |
| 15000 | 5725 | 4840 | 1825 | 1385 | 4340 |
| 20000 | 6300 | 5320 | 2010 | 1525 | 4770 |
| 30000 | 7225 | 6100 | 2305 | 1739 | 5486 |
| 40000 | 7948 | 6715 | 2536 | 1912 | 6036 |
| 50000 | 8560 | 7230 | 2730 | 2060 | 6500 |
| 60000 | 9100 | 7690 | 2940 | 2190 | 6910 |
| 70000 | 9580 | 8095 | 3060 | 2305 | 7275 |
| 80000 | 10020 | 8460 | 3195 | 2410 | 7610 |
| 90000 | 10420 | 8800 | 3325 | 2510 | 7910 |
| 100000 | 10780 | 9110 | 3440 | 2590 | 8190 |
The Flipper Delta HHP Anchor is manufactured from high-strength steel plate with welded construction, using Q355 high-strength structural steel. Surface treatment options include hot-dip galvanizing or black bitumen paint.
This welded structure provides uniform strength throughout the anchor and eliminates casting defect risks, making it suitable for offshore engineering applications that demand high reliability and toughness.
This anchor is classified as a High Holding Power (HHP) anchor. Its open plough-shaped design allows rapid seabed penetration and performs exceptionally well in sand, mud, clay, and silt. The anti-rotation design ensures the anchor remains stable once embedded, with holding power that does not degrade over time. It is widely used in offshore engineering, large merchant vessels, and offshore wind farm applications.
We can supply certifications from all major classification societies, including LR, ABS, DNV, BV, CCS, NK, KR, RMRS, RINA, and IRS. Certificates can be issued based on specific project requirements.
The Flipper Delta HHP Anchor is a large offshore engineering anchor and is typically ordered by piece. The minimum order quantity is 1 piece for all sizes.
Bulk orders receive more competitive factory-direct pricing. Lead time and MOQ are negotiable.
The Flipper Delta HHP Anchor is widely used in:
Permanent mooring of offshore oil platforms, FPSOs, and other floating facilities
Bower anchors for large merchant vessels (bulk carriers, tankers, container ships)
Positioning systems for offshore wind farm projects
Dredging and hopper dredger mooring
Deep-sea aquaculture cage mooring systems
Its high holding power ensures reliable anchoring performance even in severe sea conditions.
