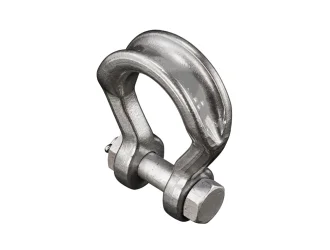

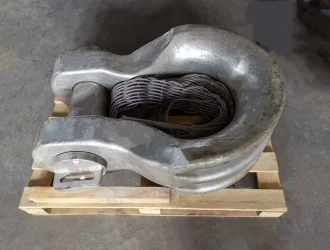

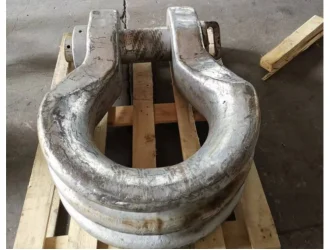

The G2160 Wide Body Shackle is a high-performance lifting shackle engineered specifically for synthetic slings and wire rope assemblies. Its signature wide bow design dramatically increases the sling bearing surface, reducing wear on lifting slings while maximizing their usable strength.
This shackle is the industry standard for connecting synthetic web slings, synthetic round slings, and wire rope slings in demanding lifting applications across offshore, construction, industrial, and oil & gas sectors.

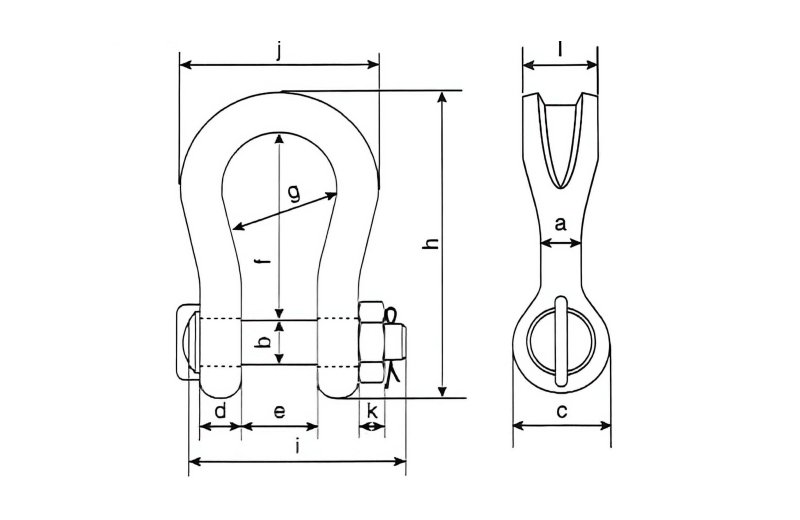

G2160 Wide Body Shackle Diagram:

Specification of G2160 Wide Body Shackle:
SWL
| Dimension(mm) | Weight |
| (t) | a | b | c | d | e | f | g | h | i | j | k | l | (kg) |
40 | 55 | 51 | 109 | 45 | 80 | 200 | 140 | 331 | 252 | 235 | 38 | 97 | 22 |
| 55 | 60 | 57 | 115 | 55 | 85 | 250 | 160 | 396 | 304 | 270 | 45 | 100 | 50 |
| 75 | 70 | 70 | 140 | 70 | 105 | 290 | 186 | 467 | 359 | 345 | 54 | 120 | 67 |
| 125 | 85 | 80 | 155 | 85 | 130 | 365 | 220 | 569 | 428 | 410 | 64 | 150 | 105 |
| 150 | 94 | 95 | 180 | 89 | 140 | 390 | 250 | 627 | 441 | 455 | 50 | 170 | 160 |
| 200 | 110 | 105 | 200 | 100 | 150 | 480 | 276 | 744 | 474 | 508 | 50 | 205 | 220 |
| 250 | 126 | 120 | 228 | 110 | 170 | 540 | 300 | 826 | 528 | 600 | 60 | 240 | 320 |
| 300 | 135 | 134 | 245 | 122 | 185 | 575 | 350 | 842 | 594 | 620 | 70 | 265 | 350 |
| 400 | 160 | 160 | 295 | 145 | 220 | 600 | 370 | 964 | 686 | 715 | 80 | 320 | 635 |
| 500 | 170 | 180 | 330 | 160 | 250 | 680 | 450 | 1107 | 763 | 810 | 90 | 340 | 803 |
| 600 | 190 | 200 | 350 | 170 | 275 | 740 | 490 | 1207 | 828 | 913 | 100 | 370 | 980 |
| 700 | 200 | 215 | 392 | 190 | 300 | 750 | 540 | 1257 | 878 | 993 | 100 | 400 | 1260 |
| 800 | 218 | 230 | 420 | 200 | 325 | 850 | 554 | 1395 | 959 | 986 | 110 | 420 | 1430 |
| 900 | 242 | 255 | 466 | 220 | 350 | 850 | 584 | 1454 | 1040 | 1050 | 120 | 440 | 1650 |
| 1000 | 260 | 270 | 490 | 240 | 380 | 855 | 614 | 1497 | 1116 | 1176 | 120 | 460 | 1650 |
| 1250 | 285 | 300 | 510 | 260 | 430 | 930 | 650 | 1620 | 1193 | 1275 | 150 | 530 | 2400 |
1550
| 295 | 320 | 550 | 280 | 460 | 950 | 680 | 1710 | 1278 | 1350 | 160 | 560 | 3600 |
