Stud link anchor chains are a type of heavy-duty chain commonly used for anchoring and mooring vessels. They have a central stud in each link that helps to prevent kinking, deformation, and fouling. These chains are known for their strength and are often preferred for large vessels and applications where significant loads are involved.
Fishing chains have three specifications: short link chian, middle link chain and long link chain. Different types of fishing chains have different features.

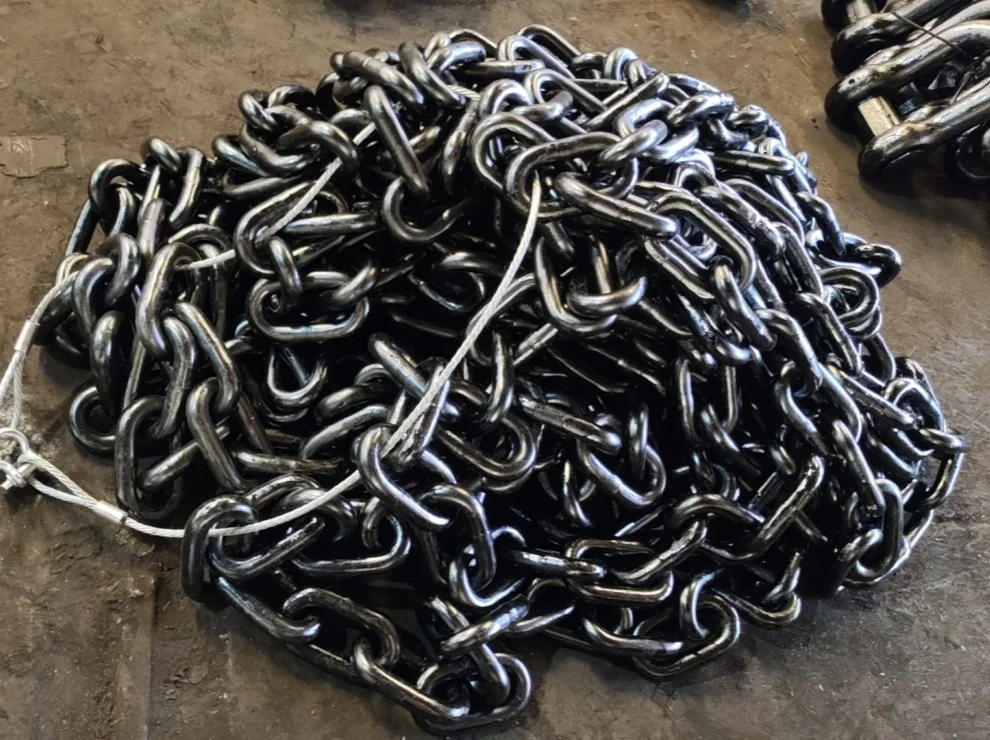

Studless Fishing Anchor Chain are 62.5% load verified at break, very durable and able to withstand extreme and harsh weather use, it is also corrosion-resistant, ideal for use in saltwater environments. There are Short Link, Mid Link and Long Link to choose from.
Stud link anchor chains are a type of heavy-duty chain commonly used for anchoring and mooring vessels. They have a central stud in each link that helps to prevent kinking, deformation, and fouling. These chains are known for their strength and are often preferred for large vessels and applications where significant loads are involved.
The dual shank anchor features two parallel shanks that work together to embed and hold in various seabed conditions. This design provides higher holding power than traditional anchors, especially in soft ground and mud, and is commonly used in aquaculture and swing moorings.

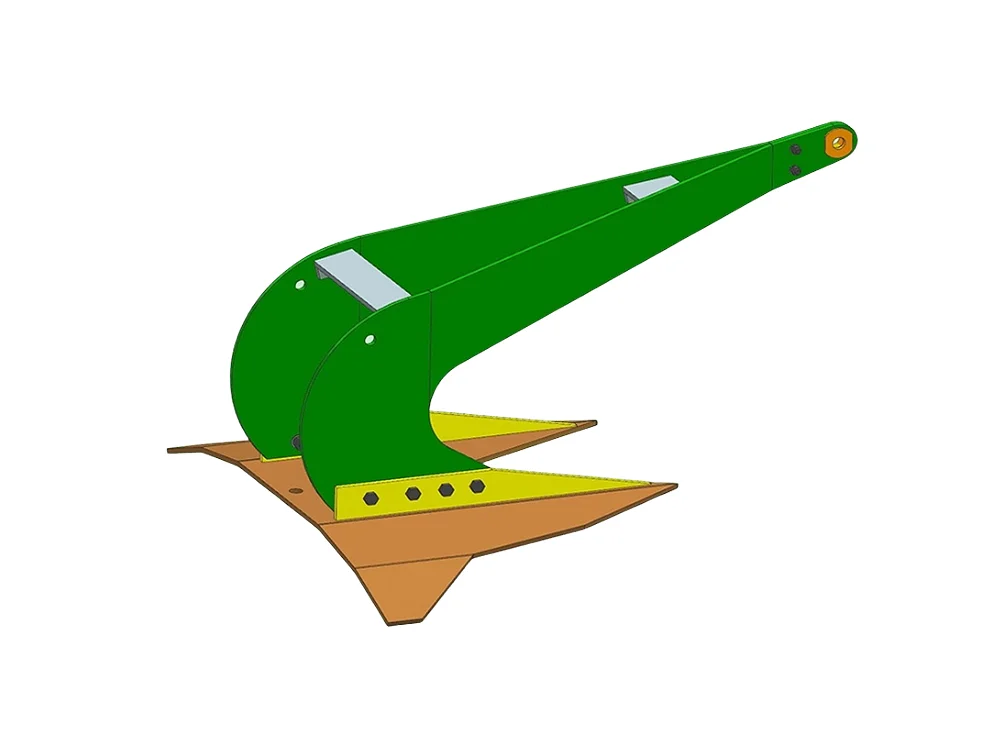

ADA aqua drag anchor is improved version base on generation of aqua-moor DSA anchor, yet provides better performance.

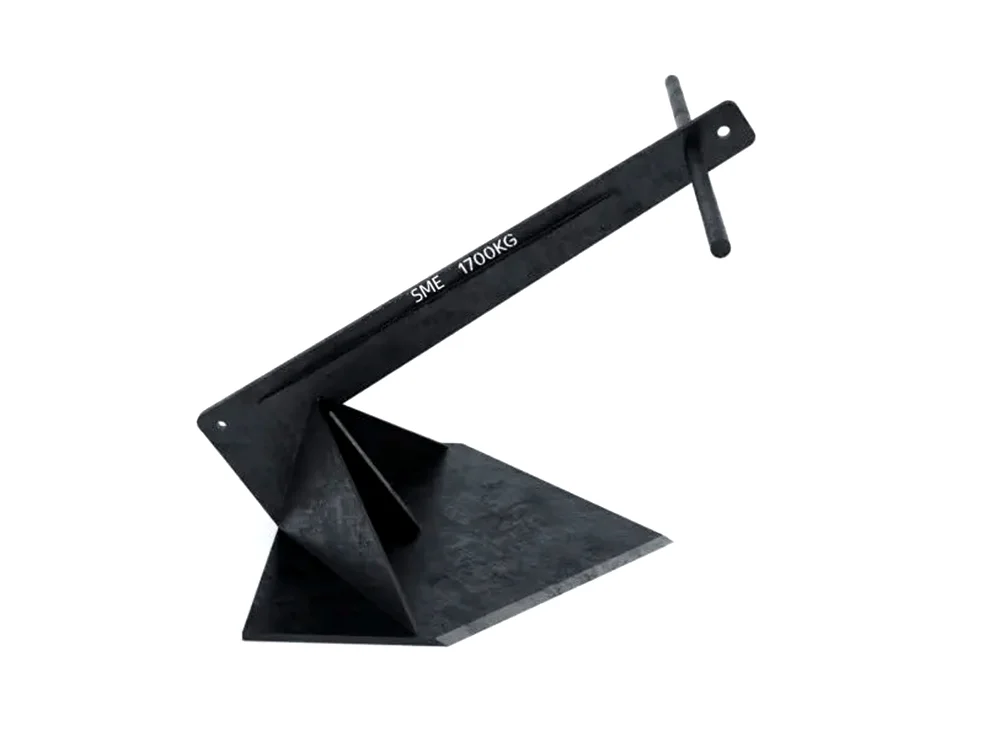

A Sand Anchor has is a conventional anchor with solid construction to withstand high load.It has high holding power and weight ratio and very suitable for seabed of sand and mix Soil.
Mooring connection plates are manufactured using alloy grade material and followed by full heat treatment process.The durability ensures that the plates can withstand exposure to saltwater, reducing maintenance needs and extending the lifespan of the aquaculture setup.
Mooring shackles are manufactured with alloy steel by following ISO9001 Quality Control System. With our years know-how on forging, heat treatment and hot dip galvanized, it is ensured the mooring shackle avoid any Hydrogen Embrittle-ment and offer a longer fatigue life of safe performance compared to EN13889 requirement and safety.
We are able to produce OEM casting cast iron, ductile iron, and steel counterweights for various applications and mass. Our casting counterweight products are guarantee high quality and competitive prices, meeting international standards.
We are able to produce OEM casting cast iron, ductile iron, and steel counterweights for various applications and mass. Our casting counterweight products are guarantee high quality and competitive prices, meeting international standards.
AM3 is a designation for a grade of stud-link anchor chain, specifically referring to a high-strength steel chain used for ship anchoring and mooring. These chains are designed for durability and reliability in demanding marine applications, often used on large vessels or in harsh environmental conditions.
| Product Features: | |
| Application: | Lifting Accessory Commonly Used in Industrial and Construction Settings. |
| Material: | Carbon Steel for Shackle Body and Alloy Steel for Shackle Pin |
| Holding power: | 6 Times,Drop Forging,Quenching and Tempering |
| Surface: | HDG,Hot Dip Galvanizing,Powder Coated |
| Standard: | Meet GB8112-1999 and US Federal Specification RR-C-271F, Type IVA, Grade B |
| Certification: | ISO9001,LR, ABS, DNV, BV, CCS, KR, RMRS, NK etc. |

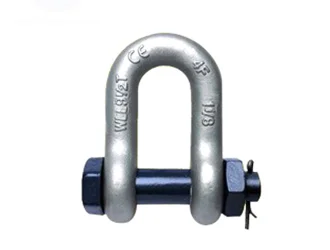

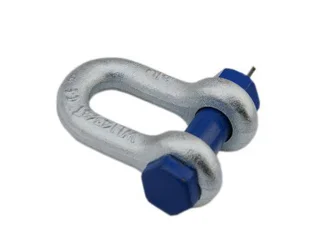

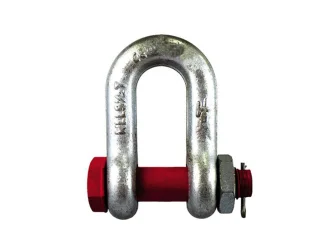

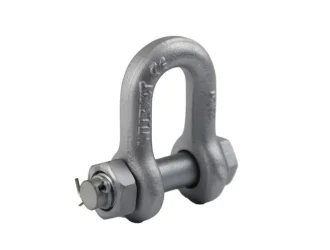

An Alloy G2150 bolt anchor shackle is a type of shackle, a U-shaped piece of metal used in lifting and rigging applications. It's specifically a bolt-type shackle, meaning it uses a bolt, nut, and cotter pin for securing the pin, offering enhanced security compared to screw pin or round pin shackles.
| Size | WLL | Weight | Dimensions（mm） | Tolerance | ||||
| (in.) | (Ton.) | (Kg) | A | B | D | C | L | - |
| 3/16" | 0.33 | 0.04 | 9.5 | 6.3 | 5 | 19.5 | 36 | ±5% |
| 1/4" | 0.5 | 0.06 | 11.9 | 8 | 6.4 | 24.7 | 24.6 | ±5% |
| 5/16" | 0.75 | 0.1 | 13.5 | 9.5 | 7.9 | 29.3 | 27.2 | ±5% |
| 3/8" | 1 | 0.15 | 16.8 | 11.1 | 9.6 | 36 | 32.5 | ±5% |
| 7/16" | 1.5 | 0.19 | 19 | 12.7 | 11.2 | 41.4 | 37.6 | ±5% |
| 1/2" | 2 | 0.33 | 20.6 | 16 | 12.7 | 46 | 40.7 | ±5% |
| 5/8" | 3.25 | 0.67 | 27 | 19 | 16 | 59 | 50 | ±5% |
| 3/4" | 4.75 | 1.05 | 31.8 | 22.1 | 19 | 69.8 | 59.5 | ±5% |
| 7/8" | 6.5 | 1.55 | 36.6 | 25.1 | 22 | 80.6 | 71.5 | ±5% |
| 1" | 8.5 | 2.2 | 43 | 28.1 | 25 | 93 | 82 | ±5% |
| 1 1/8" | 9.5 | 2.9 | 46 | 31.7 | 28.5 | 103 | 90 | ±5% |
| 1 1/4" | 12 | 4.43 | 51.5 | 35.1 | 32 | 115.5 | 100 | ±5% |
| 1 3/8" | 13.5 | 6.24 | 57 | 38 | 35 | 127 | 111 | ±5% |
| 1 1/2" | 17 | 7.74 | 60.5 | 41.5 | 38 | 136.5 | 124 | ±5% |
| 1 3/4" | 25 | 12.6 | 73 | 50.8 | 45 | 163 | 145.5 | ±5% |
| 2" | 35 | 18.45 | 82.5 | 57.1 | 51 | 184.5 | 169.5 | ±5% |
| 2 1/4" | 42.5 | 28.9 | 95 | 63 | 57 | 209 | 181 | ±5% |
| 2 1/2" | 55 | 38.6 | 105 | 69.8 | 65 | 235 | 201 | ±5% |
| 3" | 85 | 56 | 127 | 63 | 221 | 160 | 143 | ±5% |
