| Product Information: | |
| Application: | Lifting Aaccessory Commonly Used in Industrial and Construction Settings. |
| Material: | Carbon Steel for Shackle Body and Alloy Steel for Shackle Pin |
| Specification: | 1/4” to 2”,6 Times Safety Factor |
| Surface: | Galvanized/Hot Dipped Galvanized/Spray Plastic |
| Standard: | US Standard,EN 10204 3.1 |
| Certification: | ISO9001,LR, ABS, DNV, BV, CCS, KR, RMRS, NK etc. |
The G213 Shackle represents a reliable and meticulously engineered component designed for demanding construction environments. Manufactured from high-grade alloy steel with a precision-milled design, this shackle integrates exceptional strength and durability with certified quality control standards. Its versatile design meets varied industrial rigging and concrete form accessory needs while providing outstanding performance and safety assurance.

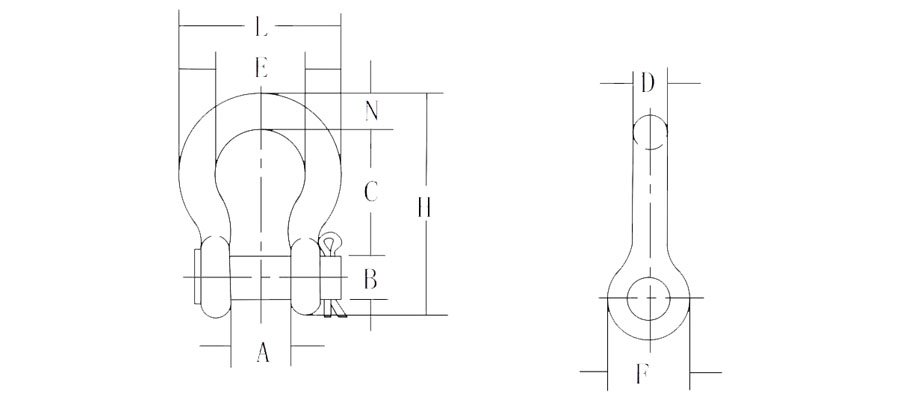

| Nominal Size(in) | WLL (Tons) | Dimension(in) | Weight(lbs) | |||||||||
| A | B | C | D | E | F | G | H | N | P | G213/S213 | ||
| 1/4 | 1/2 | 0.47 | 0.31 | 1.13 | 0.25 | 0.78 | 0.61 | 1.28 | 1.84 | 1.34 | 0.25 | 0.13 |
| 5/16 | 3/4 | 0.53 | 0.38 | 1.22 | 0.31 | 0.84 | 0.75 | 1.47 | 2.09 | 1.59 | 0.31 | 0.18 |
| 3/8 | 1 | 0.66 | 0.44 | 1.44 | 0.38 | 1.03 | 0.91 | 1.78 | 2.49 | 1.86 | 0.38 | 0.29 |
| 7/16 | 1 1/2 | 0.75 | 0.5 | 1.69 | 0.44 | 1.16 | 1.06 | 2.03 | 2.91 | 2.13 | 0.44 | 0.38 |
| 1/2 | 2 | 0.81 | 0.63 | 1.88 | 0.5 | 1.31 | 1.19 | 2.31 | 3.28 | 2.38 | 0.5 | 0.71 |
| 5/8 | 3 1/4 | 1.06 | 0.75 | 2.38 | 0.63 | 1.69 | 1.5 | 2.94 | 4.19 | 2.91 | 0.69 | 1.5 |
| 3/4 | 4 3/4 | 1.25 | 0.88 | 2.81 | 0.75 | 2 | 1.81 | 3.5 | 4.97 | 3.44 | 0.81 | 2.32 |
| 7/8 | 6 1/2 | 1.44 | 1 | 3.31 | 0.88 | 2.28 | 2.09 | 4.03 | 5.83 | 3.81 | 0.97 | 3.49 |
| 1 | 8 1/2 | 1.69 | 1.13 | 3.75 | 1 | 2.69 | 2.38 | 4.69 | 6.56 | 4.53 | 1.06 | 5 |
| 1 1/8 | 9 1/2 | 1.81 | 1.25 | 4.25 | 1.13 | 2.91 | 2.69 | 5.16 | 7.47 | 5.13 | 1.25 | 6.97 |
| 1 1/4 | 12 | 2.03 | 1.38 | 4.69 | 1.29 | 3.25 | 3 | 5.75 | 8.25 | 5.5 | 1.38 | 9.75 |
| 1 3/8 | 13 1/2 | 2.25 | 1.5 | 5.25 | 1.42 | 3.63 | 3.31 | 6.38 | 9.16 | 6.13 | 1.5 | 13.25 |
| 1 1/2 | 17 | 2.38 | 1.63 | 5.75 | 1.54 | 3.88 | 3.63 | 6.88 | 10 | 6.5 | 1.62 | 17.25 |
| 1 3/4 | 25 | 2.88 | 2 | 7 | 1.84 | 5 | 4.19 | 8.86 | 12.34 | 7.75 | 2.25 | 29.46 |
| 2 | 35 | 3.25 | 2.25 | 7.75 | 2.08 | 5.75 | 4.81 | 9.97 | 13.68 | 8.75 | 2.4 | 45.75 |
