Stud link anchor chains are a type of heavy-duty chain commonly used for anchoring and mooring vessels. They have a central stud in each link that helps to prevent kinking, deformation, and fouling. These chains are known for their strength and are often preferred for large vessels and applications where significant loads are involved.
Fishing chains have three specifications: short link chian, middle link chain and long link chain. Different types of fishing chains have different features.
Studless Fishing Anchor Chain are 62.5% load verified at break, very durable and able to withstand extreme and harsh weather use, it is also corrosion-resistant, ideal for use in saltwater environments. There are Short Link, Mid Link and Long Link to choose from.
Stud link anchor chains are a type of heavy-duty chain commonly used for anchoring and mooring vessels. They have a central stud in each link that helps to prevent kinking, deformation, and fouling. These chains are known for their strength and are often preferred for large vessels and applications where significant loads are involved.
The dual shank anchor features two parallel shanks that work together to embed and hold in various seabed conditions. This design provides higher holding power than traditional anchors, especially in soft ground and mud, and is commonly used in aquaculture and swing moorings.
ADA aqua drag anchor is improved version base on generation of aqua-moor DSA anchor, yet provides better performance.
A Sand Anchor has is a conventional anchor with solid construction to withstand high load.It has high holding power and weight ratio and very suitable for seabed of sand and mix Soil.
Mooring connection plates are manufactured using alloy grade material and followed by full heat treatment process.The durability ensures that the plates can withstand exposure to saltwater, reducing maintenance needs and extending the lifespan of the aquaculture setup.
Mooring shackles are manufactured with alloy steel by following ISO9001 Quality Control System. With our years know-how on forging, heat treatment and hot dip galvanized, it is ensured the mooring shackle avoid any Hydrogen Embrittle-ment and offer a longer fatigue life of safe performance compared to EN13889 requirement and safety.
AM3 is a designation for a grade of stud-link anchor chain, specifically referring to a high-strength steel chain used for ship anchoring and mooring. These chains are designed for durability and reliability in demanding marine applications, often used on large vessels or in harsh environmental conditions.
Stud link anchor chain AM2 is a specific type of anchor chain widely used in marine applications. It's characterized by having a stud (a crossbar or bar) within each link, adding strength and preventing kinking or twisting. AM2 is a designation within the marine industry for a specific grade of this chain, indicating its strength and material properties.
Anchor Chain for marine farm mooring system, with diameter 16mm to 50mm, most used in European fish farming industry.
| Product Features: | |
| Application: | It is Used for Lifting Devices to Ensure the Safety of Hoisting. |
| Material: | Forged Alloy Steel |
| Specification: | 1/4”-3/4" |
| Surface: | Hot Dip Galvanizing |
| Packing: | Bulk, Ton Bag or as Customer Request，Pallet |
| Standard: | DIN5688-A343，ISO9001 |

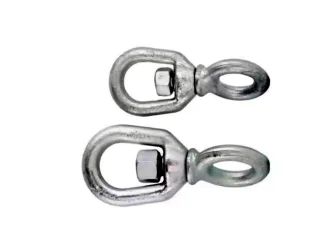

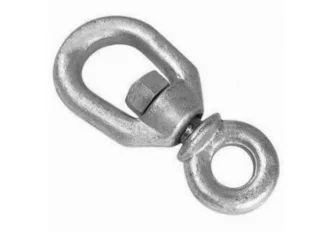

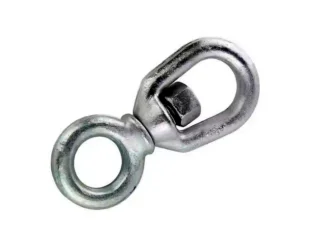

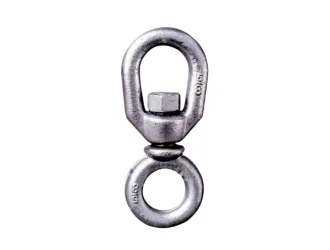

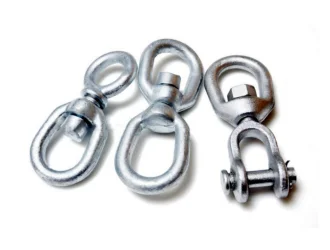

A US G401 chain swivel is a type of swivel link used in chain rigging, specifically designed to allow for rotation and prevent twisting. These swivels are commonly made of high tensile steel, often hot-dipped galvanized for corrosion resistance. They are used in a variety of applications, including marine, industrial, and lifting systems.

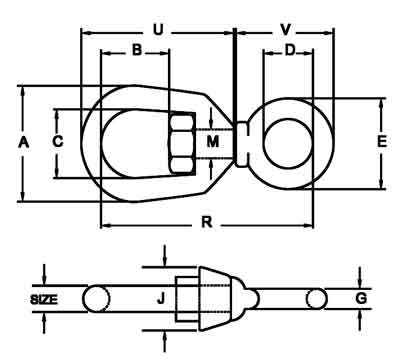

| Nominal | Working Load Limit | Weight | Dimensions(in) | ||||||||||
| (in) | (Ton) | (kg) | A | B | C | D | E | G | J | M | R | U | V |
| 1/4 | 0.85 | 0.13 | 1.25 | 0.69 | 0.75 | 0.62 | 1.12 | 0.25 | 0.69 | 0.31 | 2.25 | 1.69 | 1.25 |
| 5/16 | 1.25 | 0.25 | 1.63 | 0.81 | 1.00 | 0.75 | 1.38 | 0.31 | 0.81 | 0.38 | 2.72 | 2.06 | 1.47 |
| 3/8 | 2.25 | 0.54 | 2.00 | 0.94 | 1.25 | 1.00 | 1.75 | 0.38 | 1.00 | 0.50 | 3.44 | 2.50 | 1.88 |
| 1/2 | 3.6 | 1.12 | 2.50 | 1.31 | 1.50 | 1.25 | 2.25 | 0.50 | 1.31 | 0.63 | 4.25 | 3.19 | 2.44 |
| 5/8 | 5.2 | 2.09 | 3.00 | 1.56 | 1.75 | 1.50 | 2.75 | 0.62 | 1.50 | 0.75 | 5.13 | 3.88 | 2.94 |
| 3/4 | 7.2 | 3.09 | 3.50 | 1.75 | 2.00 | 1.75 | 3.25 | 0.75 | 1.88 | 0.88 | 5.78 | 4.94 | 3.46 |
