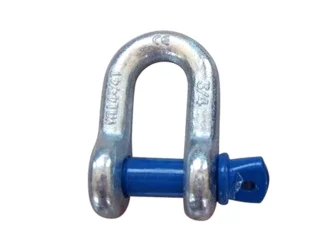

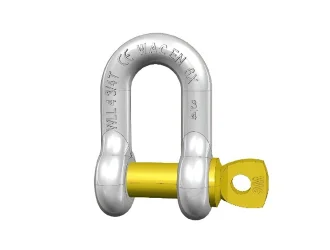

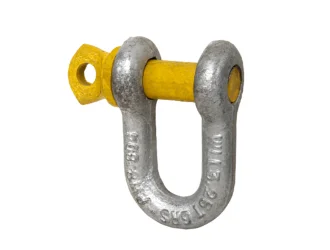

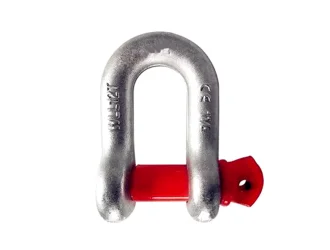

G210 Screw Pin Chain Shackles, also known as "D" shackles, are a type of lifting shackle characterized by their narrow, straight-sided bow (the U-shaped part) and a screw pin. They are designed for in-line connections and are suitable for applications where space is limited. The screw pin provides a secure and reliable connection, especially under heavy loads.

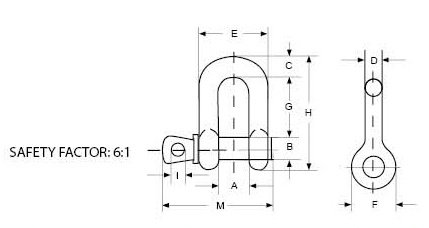

Size | Working load limit | Dimensions(in.) | Weight | ||||||||||
(in.) | (Ton.) | A | B | C | D | E | F | G | K | L | M | N | (Kg) |
1/4. | 0.5 | 0.47 | 0.31 | 0.25 | 0.25 | 0.97 | 0.61 | 0.88 | 1.59 | 0.19 | 1.38 | 1.34 | 0.04 |
5/16. | 0.75 | 0.53 | 0.38 | 0.31 | 0.31 | 1.16 | 0.75 | 1.03 | 1.91 | 0.22 | 1.66 | 1.59 | 0.08 |
3/8. | 1 | 0.66 | 0.44 | 0.38 | 0.38 | 1.41 | 0.91 | 1.25 | 2.3 | 0.25 | 2.03 | 1.86 | 0.12 |
7/16. | 1.5 | 0.75 | 0.5 | 0.44 | 0.44 | 1.63 | 1.06 | 1.44 | 2.66 | 0.31 | 2.38 | 2.13 | 0.18 |
1/2. | 2 | 0.81 | 0.63 | 0.5 | 0.5 | 1.81 | 1.19 | 1.63 | 3.03 | 0.38 | 2.69 | 2.38 | 0.29 |
5/8. | 3.25 | 1.06 | 0.75 | 0.62 | 0.63 | 2.31 | 1.5 | 2 | 3.75 | 0.44 | 3.34 | 2.91 | 0.57 |
3/4. | 4.75 | 1.25 | 0.88 | 0.81 | 0.75 | 2.75 | 1.81 | 2.38 | 4.53 | 0.5 | 3.97 | 3.44 | 0.96 |
7/8. | 6.5 | 1.44 | 1 | 0.97 | 0.88 | 3.19 | 2.09 | 2.81 | 5.33 | 0.5 | 4.5 | 3.81 | 1.5 |
1 | 8.5 | 1.69 | 1.13 | 1 | 1 | 3.69 | 2.38 | 3.19 | 5.94 | 0.56 | 5.07 | 4.53 | 2.15 |
1-1/8. | 9.5 | 1.81 | 1.25 | 1.25 | 1.13 | 4.06 | 2.69 | 3.58 | 6.78 | 0.63 | 5.59 | 5.13 | 2.95 |
1-1/4. | 12 | 2.03 | 1.38 | 1.38 | 1.25 | 4.53 | 3 | 3.94 | 7.5 | 0.69 | 6.16 | 5.5 | 4.08 |
1-3/8. | 13.5 | 2.25 | 1.5 | 1.5 | 1.38 | 5 | 3.31 | 4.38 | 8.28 | 0.75 | 6.84 | 6.13 | 5.45 |
1-1/2. | 17 | 2.38 | 1.62 | 1.62 | 1.5 | 5.38 | 3.62 | 4.81 | 9.06 | 0.81 | 7.35 | 6.5 | 7.35 |
1-3/4. | 25 | 2.88 | 2.12 | 2.12 | 1.75 | 6.38 | 4.19 | 5.75 | 10.97 | 1 | 9.08 | 7.75 | 13.2 |
2 | 35 | 3.25 | 2 | 2 | 2 | 7.25 | 4.81 | 6.75 | 12.28 | 1.22 | 10.34 | 8.75 | 19.6 |
2-1/2. | 55 | 4.13 | 2.62 | 2.62 | 2.62 | 9.38 | 5.69 | 8 | 14.84 | 1.38 | 13 | 9.25 | 32.55 |
3 | 85 | 5.01 | 3.24 | 3.24 | 3.24 | 11.51 | 6.57 | 9.25 | 17.4 | 1.54 | 15.66 | 9.75 | 54 |
