A panama chock is a special type of hawse hole at a vessel's bow and designed as per the mooring requirements set by Panama Canal Authority.
A panama chock is a special type of hawse hole at a vessel's bow and designed as per the mooring requirements set by Panama Canal Authority.
Stud link anchor chain AM2 is a specific type of anchor chain widely used in marine applications. It's characterized by having a stud (a crossbar or bar) within each link, adding strength and preventing kinking or twisting. AM2 is a designation within the marine industry for a specific grade of this chain, indicating its strength and material properties.
Stud link anchor chains are a type of heavy-duty chain commonly used for anchoring and mooring vessels. They have a central stud in each link that helps to prevent kinking, deformation, and fouling. These chains are known for their strength and are often preferred for large vessels and applications where significant loads are involved.
A G2130 Bolt Type Anchor Shackle is a type of shackle, specifically a bolt-type shackle, used in lifting and rigging applications where a high level of security and reliability is required. These shackles are designed with a bolt, nut, and cotter pin, which provides a more secure connection than traditional screw-pin shackles, especially in situations where the shackle might experience rotation or movement under load.
A G209 anchor shackle, manufactured by Crosby, is a high-performance, forged, screw-pin anchor shackle designed for heavy-duty lifting and rigging applications. They are known for their strength, corrosion resistance, and ability to meet or exceed industry standards like ASME B30 and DNV.
Product Features: | |
Application: | Used in industrial and commercial settings to secure loads to chains or cables |
Material: | Superior alloy steel |
Surface: | Powder coated,Drop forging |
Color: | Red/Blue/Yellow or as per requirement |
Heat treatment: | Quenching and tempering |
Certification: | EN 10204 3.1; Under request, CCS/ABS/DNV third party |

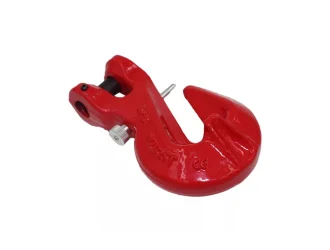

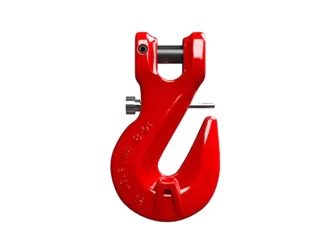

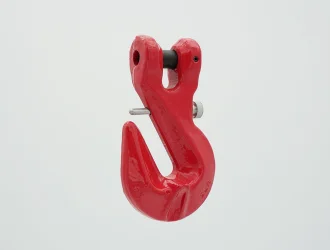

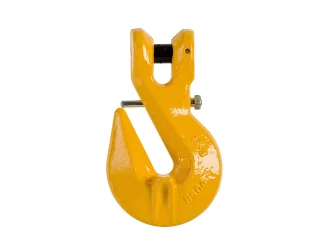

A G80 clevis sling hook is a specific type of rigging hook used in lifting operations, particularly with chain slings. It's designed to attach to the chain sling directly, typically without any intermediate connectors, through a clevis-style attachment. G80 refers to the grade of the alloy steel used in its construction, ensuring high strength and durability. These hooks often feature a safety latch to prevent accidental detachment.

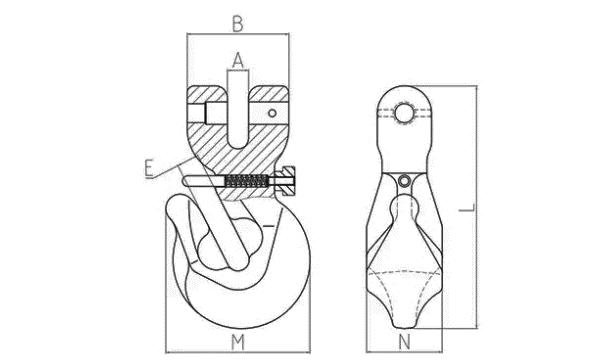

Size | WLL | Weight | Dimensions(mm) | Tolerance | |||||
- | (Ton.) | (Kg) | A | B | E | M | N | L | - |
5/16" | 2 | 0.6 | 9 | 43 | 9.5 | 61 | 32 | 102 | ±5% |
3/8" | 3.2 | 1 | 12 | 49 | 12 | 75 | 40 | 125 | ±5% |
7/16" | 4.5 | 2.7 | 14.5 | 60 | 15 | 99 | 52 | 160 | ±5% |
1/2" | 5.4 | 3.7 | 17.3 | 73 | 18 | 121 | 61 | 188 | ±5% |
5/8" | 8.2 | 4.7 | 21 | 99 | 21 | 144 | 72 | 228 | ±5% |
3/4" | 11.2 | 5.7 | 25 | 107 | 24 | 169 | 81 | 270 | ±5% |
