Product Features: | |
Application: | Lifting accessory commonly used in industrial |
Material: | Superior slloy steel,At least 4 times |
Process | Drop forging |
Color: | Colorful paint,Red,Yellow,Blue etc. |
Heat treatment: | Quenching and tempering |
Standard: | EN 10204 3.1; Under request,CCS/ABS/DNV third party |

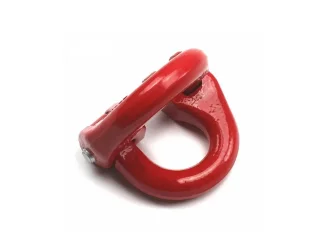

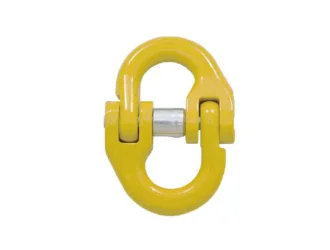

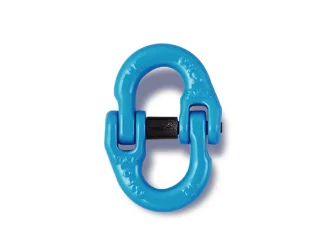

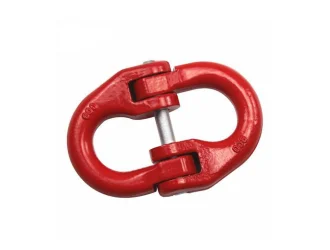

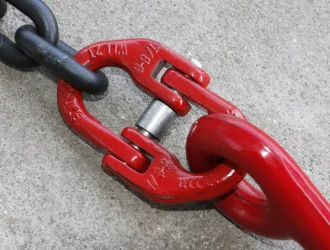

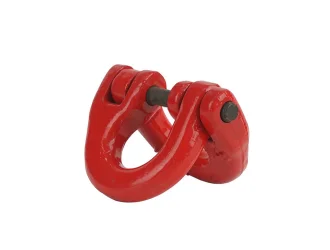

A G80 connecting link, also known as a hammerlock, is a type of coupling link used in industrial lifting and rigging applications. It is designed to connect Grade 80 chain slings to hooks, master links, or other chain components. The G80 designation indicates that the link is made from Grade 80 alloy steel, a material known for its high strength and toughness.

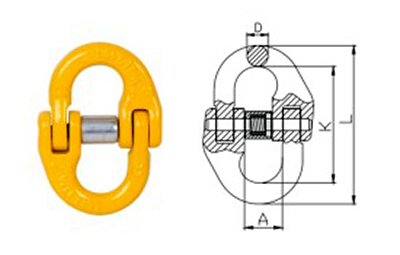

Size | WLL | Weight (Kg) | Dimensions(mm) | Tolerance | |||
- | (T) | - | A | B | D | K | - |
6mm-8 | 1.12 | 0.13 | 14.5 | 16 | 8 | 44 | ±5% |
8mm-8 | 2 | 0.15 | 18 | 21 | 9 | 55 | ±5% |
10mm-8 | 3.15 | 0.34 | 23.5 | 25 | 13 | 66 | ±5% |
13mm-8 | 5.3 | 0.75 | 28.5 | 35 | 16.5 | 87 | ±5% |
16mm-8 | 8 | 1.3 | 34 | 41.5 | 18 | 103 | ±5% |
20mm-8 | 12.5 | 2.26 | 47 | 50 | 24 | 122 | ±5% |
22mm-8 | 15 | 3.41 | 50 | 57 | 26.5 | 138.5 | ±5% |
26mm-8 | 21.2 | 5 | 58.5 | 62 | 31 | 152 | ±5% |
32mm-8 | 31.5 | 9.25 | 64.5 | 80 | 38 | 191 | ±5% |
36mm-8 | 40 | 13.61 | 96.3 | 99.5 | 38 | 236 | ±5% |
40mm-8 | 50 | 23.57 | 114 | 120.4 | 44 | 281.8 | ±5% |
