| Product Features: | |
| Application: | Link mining chain,Scraper accessories |
| Material: | Manganese steel |
| Process: | Forging |
| Customization: | Acceptable |
| Suitable: | Din22258-2，ISO9001 |

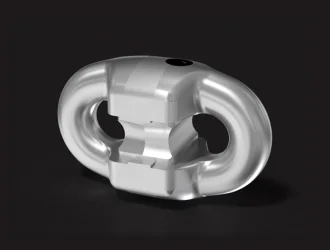

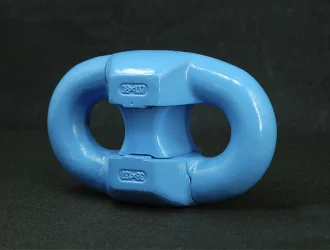

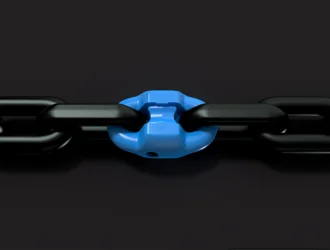

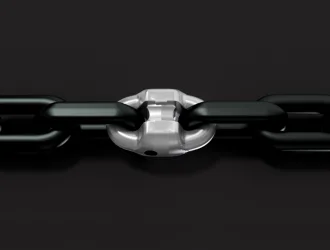

A drop forged connecting/connector link for a mining chain is a metal component used to join segments of a mining chain together or to connect a chain to other equipment. These links are typically made from high-strength alloy steel and are designed for the demanding conditions of mining applications. The "drop forged" part of the name refers to the manufacturing process, where a heated metal billet is shaped by forcing it between dies in a drop hammer.
| Modle | D | P | C | A | L | B | Breaking | Fatigue | Weight |
| DXP | - | - | Max | min | max | max | KN | Strength | KG |
| 26x92 | 26±0.8 | 92±0.9 | 65 | 30 | 148 | 95 | 1050 | 40000 | 2.5 |
| 30x108 | 30±0.9 | 108±1.1 | 75 | 35 | 170 | 109 | 1400 | 40000 | 4 |
| 34x126 | 34±1.0 | 126±1.3 | 85 | 36 | 196 | 120 | 1800 | 100000 | 6.4 |
| 38x126 | 38±1.1 | 126±1.3 | 94 | 43 | 204 | 134 | 2220 | 100000 | 7 |
| 38x137 | 38±1.1 | 137±1.3 | 94 | 43 | 215 | 134 | 2220 | 100000 | 7.6 |
| 42x146 | 42±1.3 | 146±1.5 | 105 | 47 | 232 | 148 | 2700 | 100000 | 10.7 |
| 48x152 | 48±1.5 | 152±1.5 | 118 | 54 | 249 | 170 | 3550 | 100000 | 14.4 |
