| Product Features: | |
| Application: | Link bilateral chains |
| Material: | High alloy steel |
| Process: | Forging |
| Customization: | Acceptable |
| Suitable: | MT/71-1997，ISO9001 |

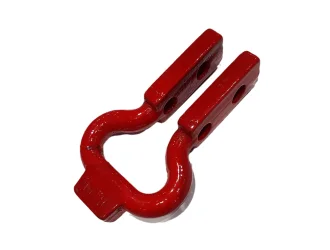

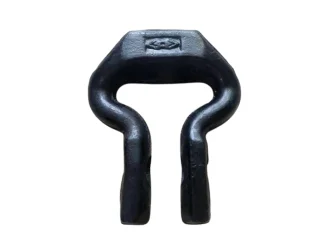

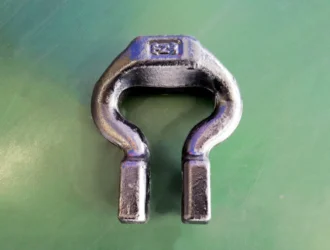

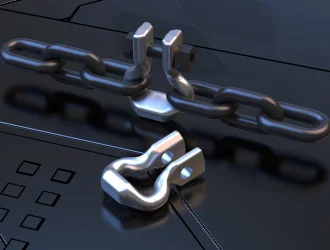

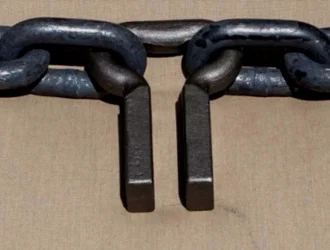

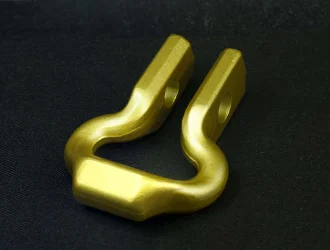

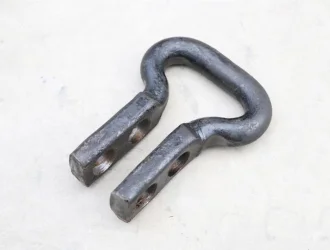

The open adapter link is specially designed for connecting bilateral chains, its appearance meets the standard requirements of MT/12718, and the high-alloy steel rich in Cr, Ni, Mo and other alloying elements and multiple heat treatment processes are selected in the manufacturing process to ensure the cooperation with the sprocket and safe operation, so as to ensure excellent mechanical properties and fatigue life.

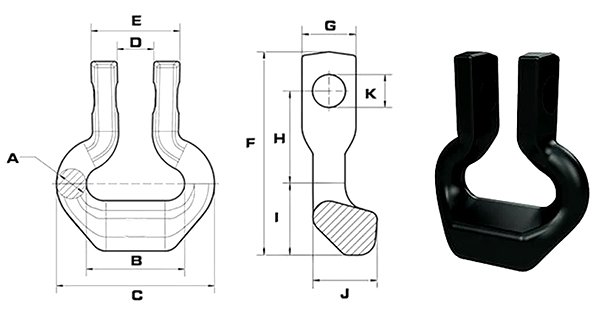

| Modle AXB | A | B | C | D | E | F | G | H | I | J | K | Weight(kg) |
| 18X64 | 19 | 64 | 102 | 21 | 54 | 120 | 36 | 56 | 44 | 45 | 25 | 1.38 |
| 22X86 | 23 | 86 | 140 | 24.5 | 68.5 | 178 | 52 | 75 | 58 | 45 | 25 | 2.58 |
| 26X92 | 27 | 92 | 146 | 28.5 | 80.5 | 190 | 28 | 85 | 60 | 53.5 | 28 | 3.32 |
| 30X108 | 31 | 108 | 170 | 32 | 93 | 215 | 66 | 95 | 68 | 58 | 31 | 4.2 |
Performance parameters:
| Modle AXB | Load | Elongation | Breaking | Break elongation | Bolt | Nut | ||
| AXB | (KN) | max | KN | min | Grade | Screw thread | Length | Grade |
| 18X64 | 300 | 2% | 370 | 8% | 10.9 | M16 | 79 | 10 |
| 22X86 | 440 | 2% | 550 | 8% | 10.9 | M20 | 96 | 10 |
| 26X92 | 580 | 2% | 765 | 8% | 10.9 | M24 | 113 | 10 |
| 30X108 | 780 | 2% | 1020 | 8% | 10.9 | M27 | 135 | 10 |
