Sinostar Marine is a manufacturer of AM2/AM3 stud link anchor chains.Can provide LR, DNV, CCS, ABS, BV and other classification society certification.
| Product Features: | |
| Application: | Link mining chain,Scraper accessories |
| Material: | Manganese steel |
| Process: | Forging |
| Customization: | Acceptable |
| Suitable: | Din22258-3，ISO9001 |

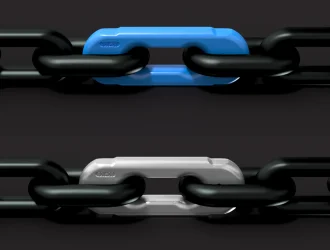

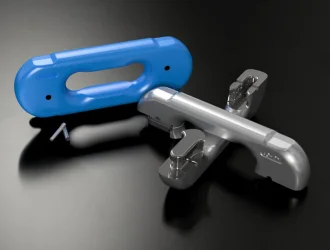

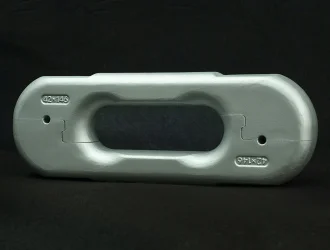

Vertical chain links, or vertical connecting links, are specialized components used in mining chains, specifically those designed for longwall systems and conveyor chains. They connect the chain's main links and ensure smooth, reliable operation under heavy loads.

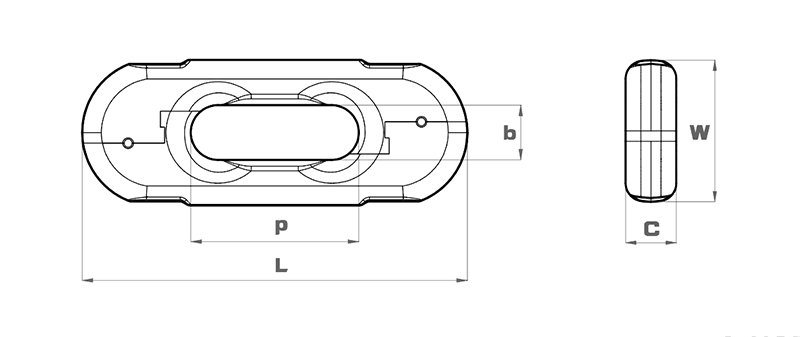

| Size dXp | W max | P | b min | C max | L max | Breaking(KN) | Fatigue strength | Weight(kg) |
| 22x86 | 82 | 86±0.9 | 26 | 25 | 186 | 880 | 40000 | 1.46 |
| 26x92 | 75 | 92±0.9 | 28 | 28 | 213 | 980 | 40000 | 2.28 |
| 30x108 | 87 | 108±1.1 | 32 | 32 | 241 | 1270 | 40000 | 3.4 |
| 34x126 | 98 | 126±1.3 | 36 | 38 | 292 | 1700 | 100000 | 5.02 |
| 38x126 | 110 | 126±1.3 | 40 | 40 | 290 | 1900 | 100000 | 8 |
| 38x137 | 110 | 137±1.4 | 40 | 40 | 302 | 1900 | 100000 | 8.6 |
| 42x148 | 114 | 146±1.5 | 44 | 44 | 330 | 2300 | 100000 | 8.2 |
| 48x144 | 127 | 144±1.5 | 52 | 58 | 323 | 2900 | 100000 | 10.38 |
| 48x152 | 127 | 152±1.5 | 53 | 58 | 331 | 2900 | 100000 | 11 |
| 52x170 | 127 | 170±1.5 | 57 | 84 | 373 | 3700 | 100000 | 14.8 |
| 58x187 | 131 | 187±1.5 | 60 | 85 | 411 | 4300 | 100000 | 15 |
| 60x181 | 137 | 181±1.5 | 64 | 70 | 452 | 4900 | 100000 | 20 |
