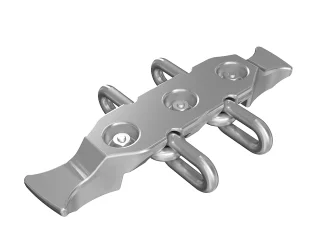

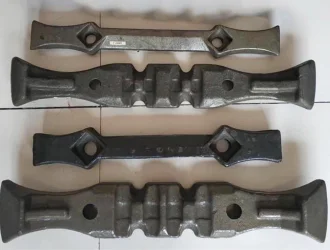

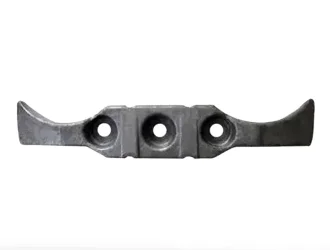

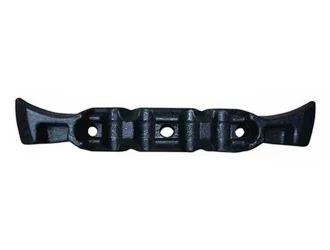

In the context of mining, "Mining Scrapers conveyors forged" refers to the components of a scraper conveyor system, specifically the scrapers, chains, and connecting links, which are made using a forging process. Forging involves shaping metal under pressure, resulting in strong and durable components for heavy-duty applications like mining.

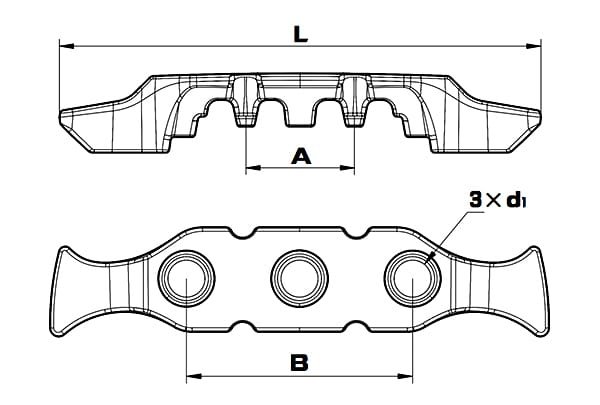

Drawings of Mining Scrapers conveyors forged:

Specification of Mining Scrapers conveyors forged:
Size dXp | Width | Length | A | B | d1 |
22x86 | 630 | 574 | 110±0.5 | 220±0.5 | 26 |
26x92 | 630 | 577 | 120±0.5 | 240±0.5 | 26 |
26x92 | 730 | 666 | 120±0.5 | 240±0.5 | 26 |
26x92 | 730 | 674 | 120±0.5 | 240±0.5 | 26 |
26x92 | 764 | 708 | 120±0.5 | 240±0.5 | 26 |
26x92 | 764 | 710 | 120±0.5 | 240±0.5 | 26 |
26x92 | 764 | 710 | 140±0.5 | 275±0.5 | 26 |
30x108 | 730 | 874 | 130±0.5 | 280±0.5 | 26 |
30x108 | 764 | 708 | 130±0.5 | 280±0.5 | 26 |
30x108 | 764 | 710 | 130±0.5 | 280±0.5 | 26 |
30x108 | 830 | 784 | 140±0.5 | 275±0.15 | 26 |
30x108 | 780n | 784 | 140±0.5 | 275±0.15 | 26 |
34x126 | 770n | 758 | 180±1.0 | 348±0.5 | 28 |
34x126 | 770n | 754 | 180±1.0 | 348±0.5 | 33 |
34x126 | 800n | 788 | 180±1.0 | 320±0.5 | 33 |
34x126 | 930n | 915 | 200±1.0 | 400±0.75 | 26 |
