Product Features: | |
Material: | Cast steel or cast iron |
Surface: | Sandblasting then painted epoxy |
Size: | 140mm-350mm |
Color: | Colorful paint |
Standard: | Japanese JIS F 2026-1980 |
Certification: | LR, ABS, DNV, BV, CCS, KR, RMRS, NK etc. |

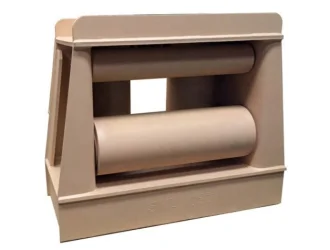

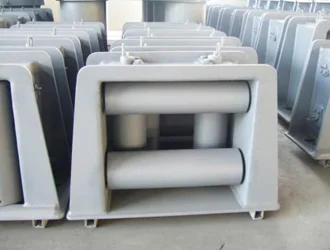

The JIS F2026-80 Four-Roller Fairlead Type A is a high-performance marine component designed to guide mooring lines, towing cables, and other ropes with ease, while reducing friction and wear. Manufactured according to the Japanese Industrial Standard (JIS) F2026-80, this fairlead ensures reliable operation in demanding marine environments.
Its durable construction and efficient design make it ideal for a range of maritime applications, from tugboats to offshore platforms.

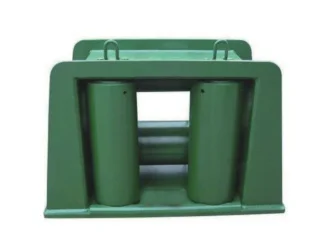

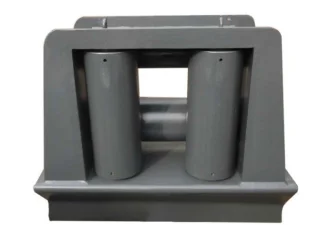

The JIS F2026-80 Four-Roller Fairlead Type A is a deck-mounted component featuring four rollers (two vertical and two horizontal), arranged to guide ropes and wires in various directions.
This design allows for smooth transitions and prevents chafing or damage to the lines, ensuring their longevity and safe operation. Its advanced design, combined with high-grade materials, allows it to handle the toughest challenges of the maritime industry, providing you with a dependable solution that can stand up to the elements and the rigors of everyday use.
As an experienced marine equipment supplier, Sinostar Marine can provide customized roller fairleads equipment. If you have any needs, please feel free to contact us.

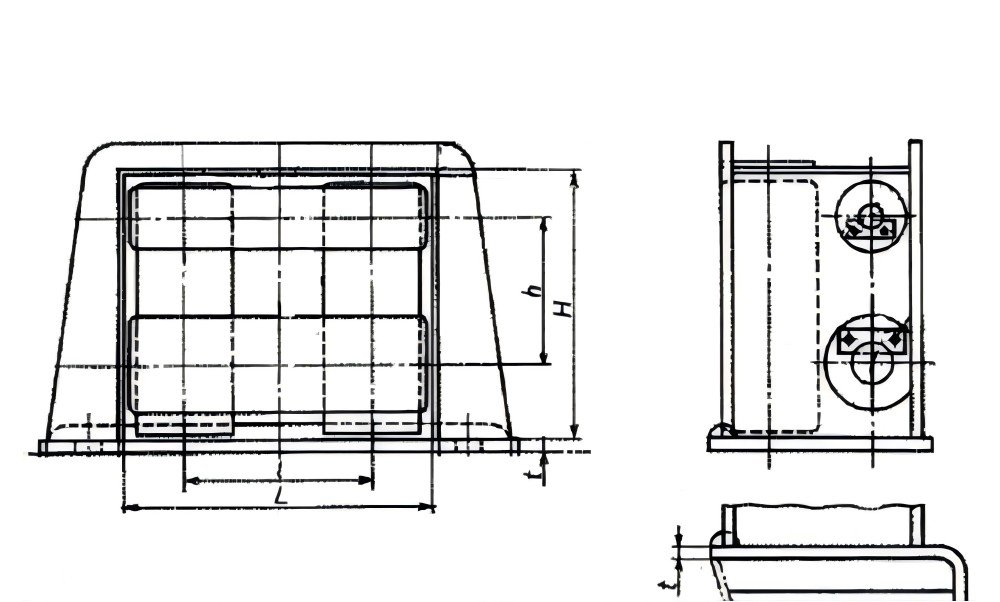

Nominal size | Rope dia. | Dimensions (mm) | Weight for 4-roller | ||||||
(mm) | (mm) | b | D1 | H | h | L | l | t | (kg) |
140 | 18 | 150 | 140 | 480 | 130 | 515 | 335 | 12 | 187 |
160 | 22.4 | 175 | 160 | 515 | 145 | 570 | 365 | 14 | 277 |
180 | 25 | 200 | 180 | 560 | 155 | 620 | 390 | 16 | 387 |
200 | 28 | 225 | 200 | 590 | 170 | 675 | 420 | 18 | 510 |
250 | 35.5 | 280 | 250 | 715 | 195 | 825 | 520 | 20 | 900 |
315 | 42.5 | 330 | 300 | 870 | 220 | 980 | 620 | 22 | 1232 |
