Stud link anchor chains are a type of heavy-duty chain commonly used for anchoring and mooring vessels. They have a central stud in each link that helps to prevent kinking, deformation, and fouling. These chains are known for their strength and are often preferred for large vessels and applications where significant loads are involved.
Fishing chains have three specifications: short link chian, middle link chain and long link chain. Different types of fishing chains have different features.
Studless Fishing Anchor Chain are 62.5% load verified at break, very durable and able to withstand extreme and harsh weather use, it is also corrosion-resistant, ideal for use in saltwater environments. There are Short Link, Mid Link and Long Link to choose from.
Stud link anchor chains are a type of heavy-duty chain commonly used for anchoring and mooring vessels. They have a central stud in each link that helps to prevent kinking, deformation, and fouling. These chains are known for their strength and are often preferred for large vessels and applications where significant loads are involved.
The dual shank anchor features two parallel shanks that work together to embed and hold in various seabed conditions. This design provides higher holding power than traditional anchors, especially in soft ground and mud, and is commonly used in aquaculture and swing moorings.
A Sand Anchor has is a conventional anchor with solid construction to withstand high load.It has high holding power and weight ratio and very suitable for seabed of sand and mix Soil.
Mooring connection plates are manufactured using alloy grade material and followed by full heat treatment process.The durability ensures that the plates can withstand exposure to saltwater, reducing maintenance needs and extending the lifespan of the aquaculture setup.
Rope K3 Thimble is used for aquaculture mooring, where the surface needs to be heat-treated to protect wire, fibre or synthetic ropes.
The 12.5mm Stud Link Anchor Chain is a heavy-duty marine chain primarily used in ship anchoring and mooring systems. Standard length (short link): typically supplied in 27.5-meter (15 fathom) lengths, connectable using Kenter shackles.
AM3 is a designation for a grade of stud-link anchor chain, specifically referring to a high-strength steel chain used for ship anchoring and mooring. These chains are designed for durability and reliability in demanding marine applications, often used on large vessels or in harsh environmental conditions.
Stud link anchor chain AM2 is a specific type of anchor chain widely used in marine applications. It's characterized by having a stud (a crossbar or bar) within each link, adding strength and preventing kinking or twisting. AM2 is a designation within the marine industry for a specific grade of this chain, indicating its strength and material properties.
Anchor Chain for marine farm mooring system, with diameter 16mm to 50mm, most used in European fish farming industry.
| Product Information: | |
| Material: | Cast Steel |
| Nominal Size: | 310MM to 360MM |
| Installation site: | On the Bulwark |
| SWL： | 471KN to 775KN |
| Weight: | 228KG to 286KG |
| Certification: | LR, ABS, DNV, BV, CCS, KR, RMRS, NK etc. |

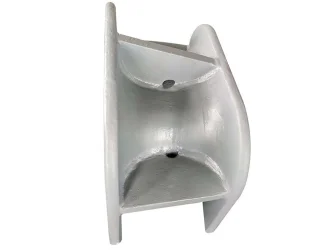

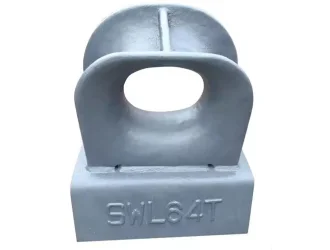

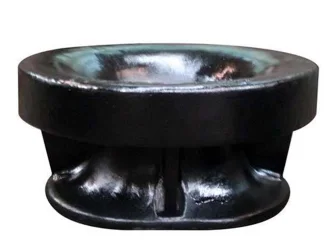

The ISO 13728 Panama Chock Type A is a robust steel fitting designed for safe and efficient mooring line handling on the deck of large ships.
Manufactured from high-quality cast steel, it provides a designated pathway for mooring lines, ensuring smooth operation and minimizing wear. Crafted to the exacting standards of ISO 13728, this chock is the pinnacle of reliability, ensuring your cargo stays firmly in place during transit, whether on ships or freight trains.
Designed for heavy-duty performance, the Panama Chock Type A boasts a rugged construction that can withstand the toughest conditions. Its robust build provides unparalleled strength and stability, giving you confidence that your cargo remains secure even in rough seas or turbulent rail journeys.
Choose the ISO 13728 Panama Chock Type A for unmatched cargo security and peace of mind during transit. Whether you’re a shipping company, freight operator, or logistics provider, this chock is your trusted partner for safe and efficient cargo handling.
As a leading supplier of marine equipment, SMEOCEAN supplies all kinds of mooring chocks, If you have any needs, please feel free to contact us.

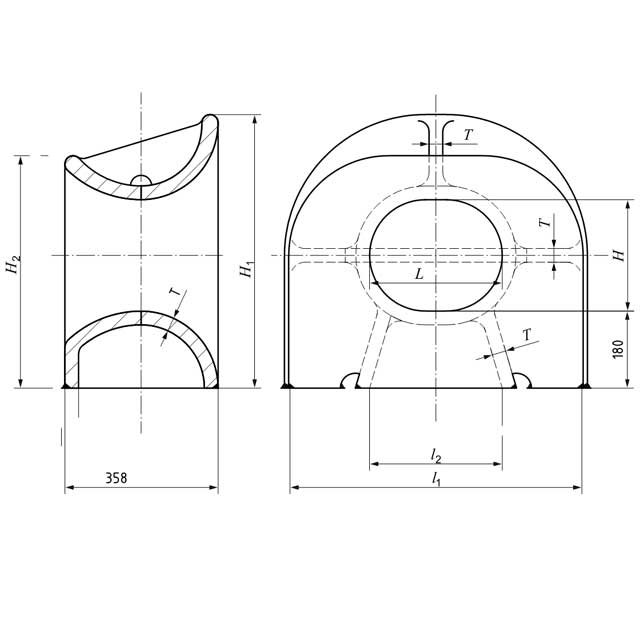

ISO13728 Panama Chock Type A Diagram:
Specification of ISO13728 Panama Chock Type A:
ISO13728 Deck Mounted Panama Chock (Type A) | ||||||||||
Nominal Size | L | l1 | l2 | H | H1 | H2 | T | SWL | Weight | |
(mm) | (kN) | (t) | (kg) | |||||||
310 | 310 | 708 | 310 | 260 | 639 | 541 | 32 | 471 | 48 | 257 |
360 | 360 | 760 | 360 | 260 | 640 | 543 | 34 | 687 | 70 | 286 |

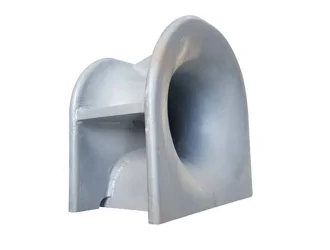

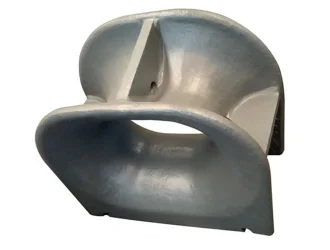

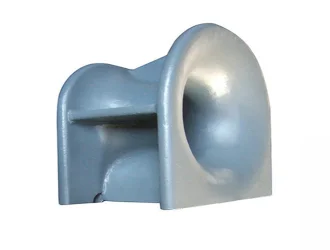

The ISO 13728 Panama Chock Type B is a heavy-duty steel fitting specifically designed for safe and efficient mooring line management on the bulwark (side wall) of large ships. Engineered to meet the rigorous standards of ISO 13728, this chock is manufactured from high-grade cast steel, it provides a secure pathway for mooring lines, ensuring smooth operation and minimizing wear during harboring or canal transits.
The ISO 13728 Panama Chock Type B is crafted for adaptability and effortless installation, making it an ideal choice for a wide range of cargo configurations. Its lightweight yet durable construction ensures ease of handling while offering robust support for varying load sizes and shapes. From bulk goods to specialized equipment, this chock is designed to accommodate your unique cargo needs with ease and efficiency.
With the Panama Chock Type B, you can trust that your cargo remains securely in place throughout its journey, providing you with peace of mind and confidence in your logistics operations. Whether you’re a shipping company, freight operator, or logistics provider, this chock is your dependable partner for safe and efficient cargo handling. Choose Sinostar Marine’s ISO 13728 Panama Chock Type B for unmatched versatility, reliability, and performance in cargo securing solutions.

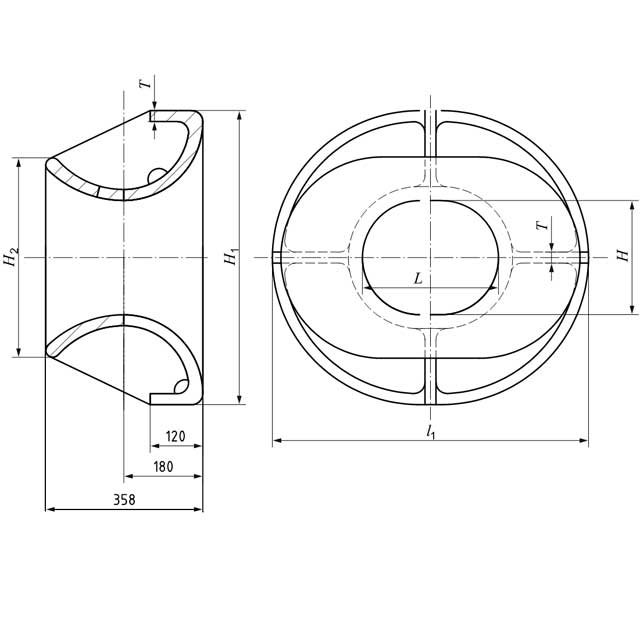

Drawings of ISO13728 Panama Chock Type b:
Specification of ISO13728 Panama Chock Type B:
| ISO13728 Bulwark Mounted Panama Chock (Type B) | |||||||||
| SWL | |||||||||
| Nominal Size (mm) | L | l1 | H | H1 | H2 | T | (kN) | (t) | Weight (kg) |
| 310 | 310 | 720 | 260 | 670 | 453 | 25 | 687 | 70 | 228 |
| 360 | 360 | 770 | 260 | 670 | 456 | 27 | 775 | 79 | 248 |
