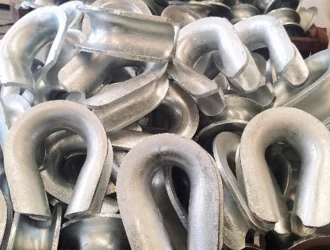

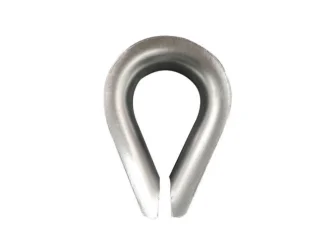

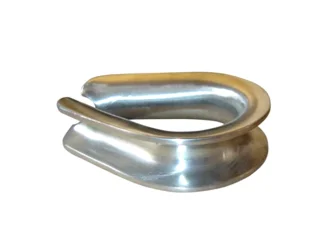

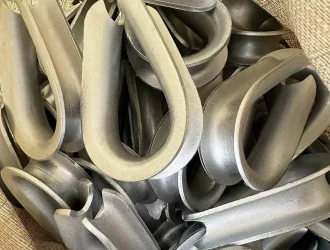

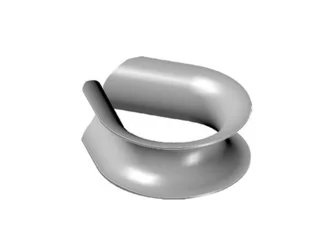

Rope K3 Thimble HDG for Aquaculture Mooring
| Product Features: | |
| Material: | Carbon steel |
| Specification: | 5” to 20” |
| Range : | For rope from 40mm to 170mm |
| Surface: | Treatment: HDG |
| Standard: | ASTM, GB, DIN, ANSI, JIS, ISO |
Rope K3 Thimble HDG for Aquaculture Mooring
Thimbles are indeed made of mild steel and then galvanised. Galvanizing is a process of applying a zinc coating to steel, typically via hot-dip galvanization, to protect it from rust and corrosion. Mild steel is a common base material for thimbles due to its strength and affordability.

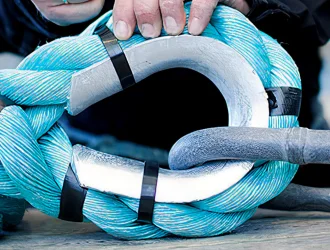

The K3 thimble, a type of rope thimble, is indeed used in aquaculture mooring to protect wire, fiber, or synthetic ropes from damage at the connection point of a mooring line.
Thimbles like the K3 provide a solid, protective element that prevents the rope loop from crushing and helps distribute the load。

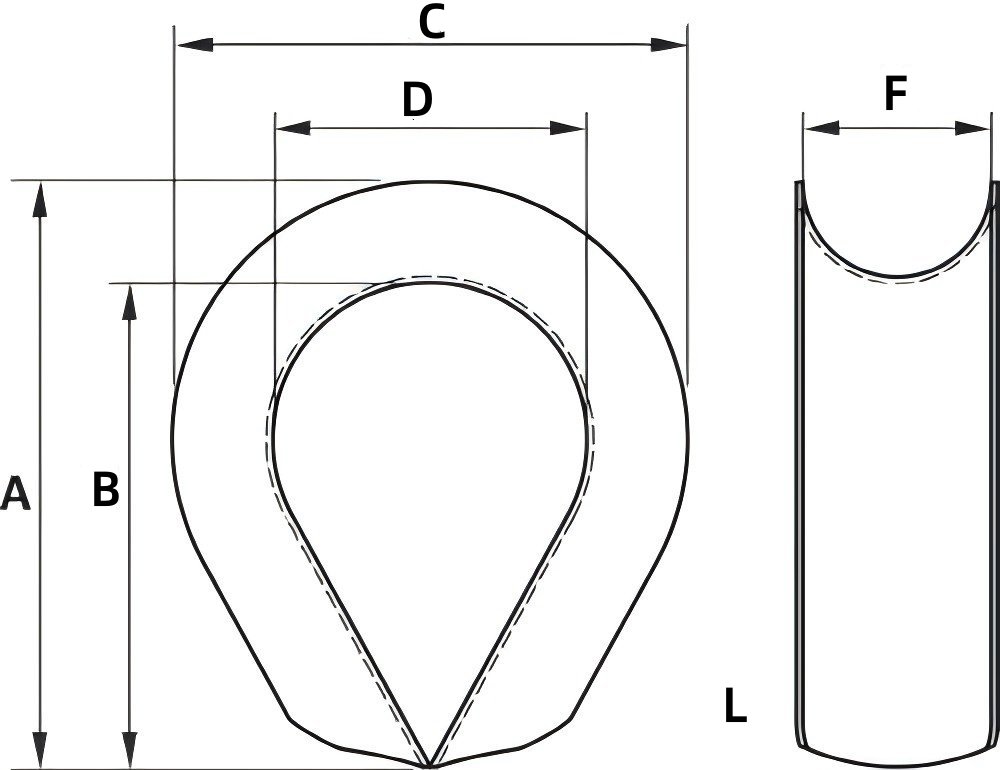

Drawings of Rope K3 Thimble HDG:
Specification of Rope K3 Thimble HDG:
| SPEC | A (mm) | N(mm) | P(mm) | K(mm) | R(mm) | Weight(kg) |
| 5ʺ | 127 | 110 | 65 | 95 | 40 | 0.78 |
| 6ʺ | 152 | 120 | 75 | 115 | 48 | 1.3 |
| 7ʺ | 178 | 140 | 85 | 140 | 56 | 1.8 |
| 8ʺ | 203 | 160 | 105 | 1260 | 64 | 3.2 |
| 9ʺ | 229 | 180 | 110 | 175 | 72 | 5 |
| 10ʺ | 254 | 200 | 120 | 190 | 80 | 6.1 |
| 11ʺ | 279 | 220 | 145 | 210 | 88 | 8 |
| 12ʺ | 305 | 245 | 150 | 230 | 102 | 10 |
| 14ʺ | 356 | 300 | 170 | 290 | 115 | 16 |
| 16ʺ | 406 | 320 | 185 | 310 | 130 | 20 |
| 18ʺ | 457 | 350 | 205 | 340 | 150 | 30 |
| 20ʺ | 508 | 380 | 235 | 370 | 170 | 56 |
