| Product Information: | |
| Application: | Professional Marine Mooring Connections |
| Material: | Special Stainless Steel |
| Specification: | 90T to 300T |
| Customization: | Available |
| Certification: | LR, ABS, DNV, BV, CCS, KR, RMRS, NK etc. |

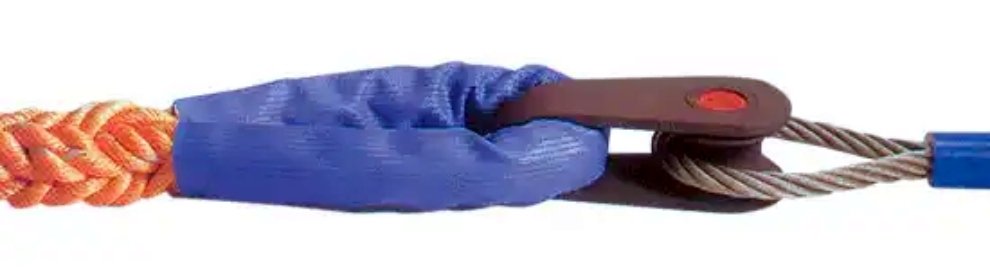

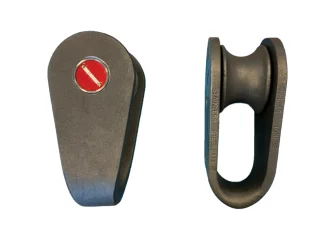

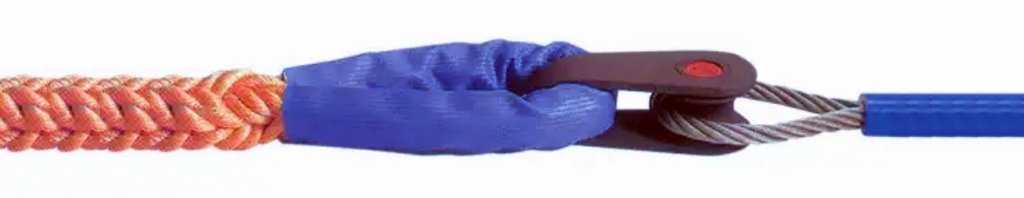

The Mandal Fairlead Shackle is a specialized marine mooring connector engineered to serve as the critical link between steel wire ropes and synthetic fiber tails in high-load offshore operations. Its sleek, streamlined design allows the entire assembly to pass smoothly through deck fairleads and roller banks without jamming or point-loading.
This shackle is widely used in FPSO mooring systems, tugboat towing operations, ship-to-ship (STS) transfer, and single point mooring (SPM) systems.

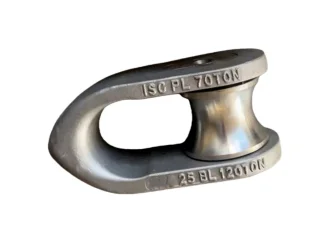

We can provide sizes from 90Ton to 300Ton. For any size, please contact us.

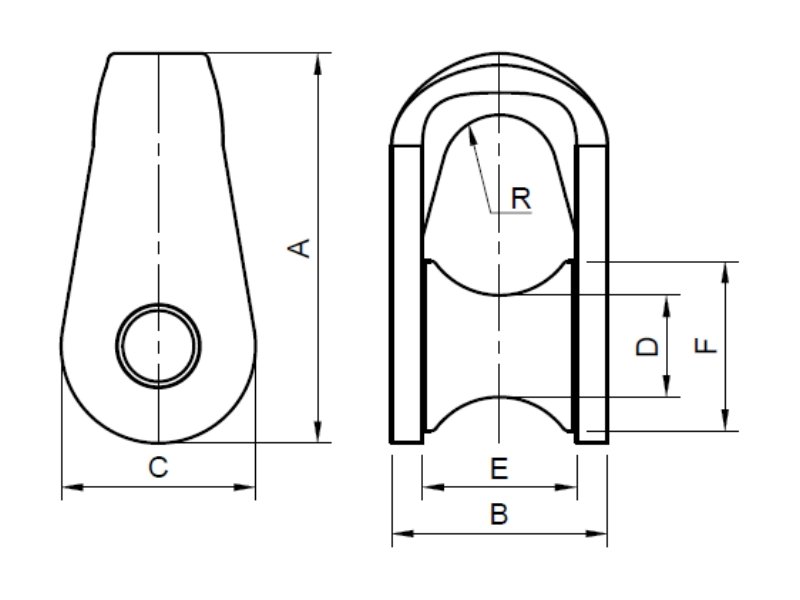

| Link 90T | Link 120T | Link 180T | Link 250T | Link 300 T |
| Tail 56-68 mm | Tail 72-80 mm | Tail 88-112 mm | Tail 88-112 mm | |
| A = 285 mm | A = 324 mm | A = 350 mm | A = 363 mm | A = 447 mm |
| B = 115 mm | B = 142 mm | B = 184 mm | B = 196 mm | B = 216 mm |
| C = 136 mm | C = 150 mm | C = 160 mm | C = 174 | C = 190 mm |
| D = 65 mm | D = 75 mm | D = 85 mm | D = 85mm | D = 110 mm |
| E = 75 mm | E = 90 mm | E = 120 mm | E = 120 mm | E = 146 mm |
| R = 22 mm | R = 28 mm | R = 30 mm | R = 35 mm | R = 36 mm |
| Breaking load:90 tonnes | Breaking load:120 tonnes | Breaking load:180 tonnes | Breaking load:250 tonnes | Breaking load: 300 tonnes |
| Proof load:30 tonnes | Proof load:40 tonnes | Proof load:50 tonnes | Proof load:60 tonnes | Safe working load: 100 tonnes |
| Weight:11.2 kg | Weight:16.9 kg | Weight:25 kg | Weight:29.1kg | Weight:52 kg |
