| Product Information: | |
| Application: | Mooring connector – anchor connection, size compensation, component replacement. |
| Material: | Alloy Steel CM690 |
| Diameters: | 19MM to 108MM |
| Surface: | Hot Dip Galvanizing / Spray Paint |
| Certification: | LR, ABS, BV, DNV, CCS, KR, NK, RMRS,Etc |

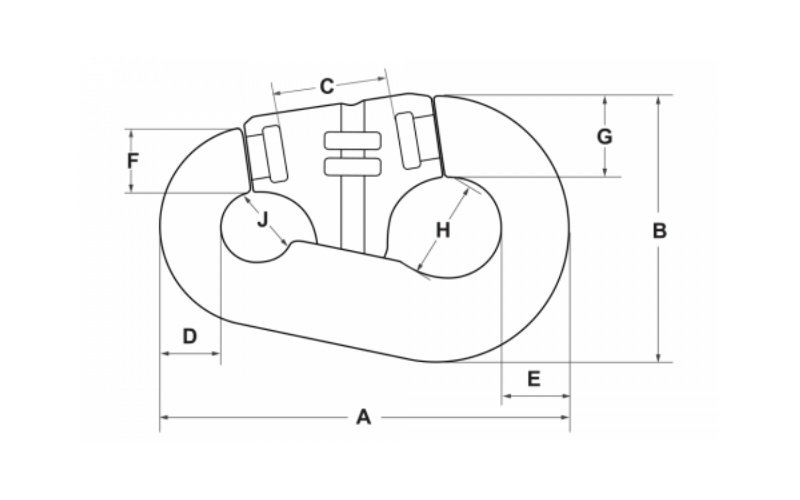

| Size | Chain Diameter (mm) | Chain Diameter (inch) | Proof Load (kN) | Breaking Load (kN) | Weight (kg) |
|---|---|---|---|---|---|
| 2 | 19–24 | 3/4 – 15/16 | 340 | 485 | 3.6 |
| 3 | 25–30 | 1 – 1-3/16 | 530 | 757 | 6.5 |
| 4 | 32–40 | 1-1/4 – 1-9/16 | 914 | 1,310 | 14.5 |
| 5 | 42–51 | 1-5/8 – 2 | 1,454 | 2,077 | 27 |
| 6 | 52–60 | 2-1/16 – 2-3/8 | 1,996 | 2,852 | 49 |
| 7 | 62–79 | 2-7/16 – 3-1/8 | 3,321 | 4,745 | 92 |
| 8 | 81–92 | 3-3/16 – 3-5/8 | 4,348 | 6,212 | 149 |
| 9 | 94–95 | 3-11/16 – 3-3/4 | 4,623 | 6,601 | 236 |
| 10 | 97–102 | 3-13/16 – 4 | 5,221 | 7,460 | 386 |
| 11 | 103–108 | 4-1/16 – 4-1/4 | 5,770 | 8,243 | 418 |
R3 Mooring Grade – Manufactured from CM690 alloy steel matching your mooring chain material
Class Society Certification – CCS, ABS, BV, LR, NK, RINA available upon request
Full Traceability – Material certificates and inspection reports provided
Custom Sizes – Bespoke dimensions available upon request
Factory Direct – Competitive pricing with full quality control
Q1: What is the difference between a Pear Shaped Shackle and a Kenter Shackle?
A Kenter Shackle connects two sections of chain and passes through the windlass. A Pear Shaped Shackle connects the chain to the anchor crown shackle and features a tapered design for size compensation. The Pear Shackle can replace the combined use of D-Shackle, End Link, Enlarged Link, and Kenter Shackle .
Q2: What grade is the Pear Shaped Shackle available in?
Pear Shaped Shackles are commonly manufactured in Grade 3 (U3) and can be supplied in R3, R3S, R4, and other mooring grades upon request .
Q3: Can a Pear Shaped Shackle connect chains of different diameters?
Yes. The pear-shaped design with different dimensions on each side allows it to connect two mooring lines or chains with different dimensions .
Q4: What material is used for Pear Shaped Shackle R3?
It is manufactured from CM690 or similar alloy steel, matching the material used for R3-grade mooring chains. Yield strength is min 410 N/mm², tensile strength min 690 N/mm² .
Q5: What certifications are available?
CCS, ABS, BV, LR, NK, and RINA certifications are available upon request .
