| Product Information: | |
| Application: | Professional Marine Mooring Connections |
| Material: | Alloy Steel |
| Specification: | 90T to 250T |
| Customization: | Available |
| Certification: | LR, ABS, DNV, BV, CCS, KR, RMRS, NK etc. |

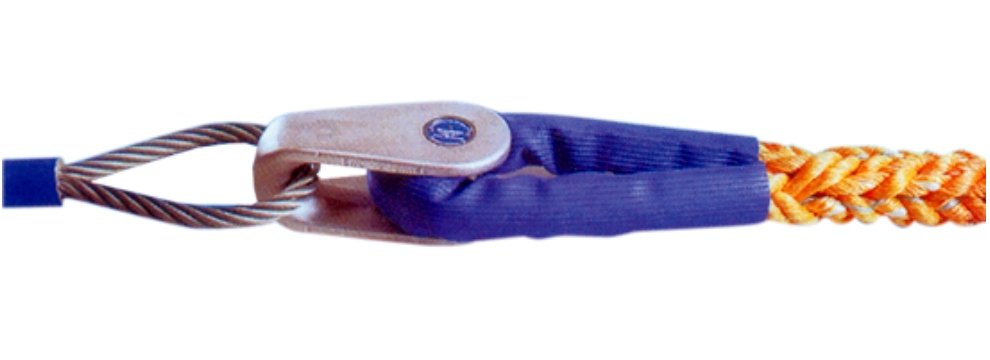

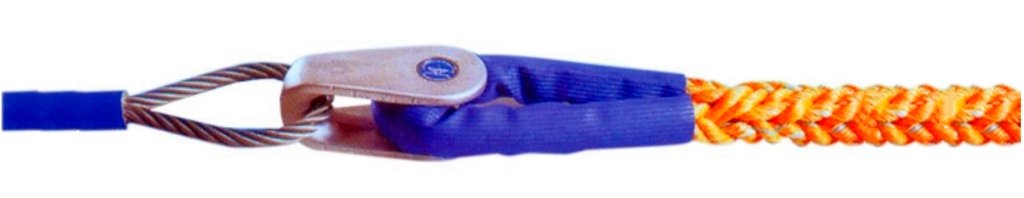

The Tonsberg Mooring Link is a specialized marine mooring connector designed to serve as the critical link between steel wire ropes and synthetic fiber tails (forerunners) in high-load mooring operations. Its compact, streamlined design allows the entire mooring assembly to pass smoothly through deck fairleads and roller banks without snagging or point-loading.
This link is widely used in single point mooring (SPM) systems, multi-buoy mooring (MBM) systems, FPSO mooring, and tugboat towing operations.
300 T can be supplied on special request.

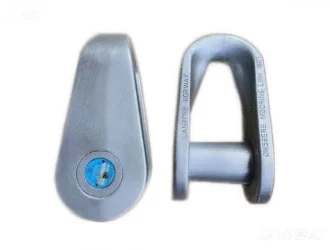

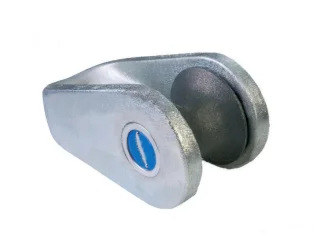

| Shackle 90 M | Shackle 120 M |
| Tail 56-64 mm | Tail 68-80 mm |

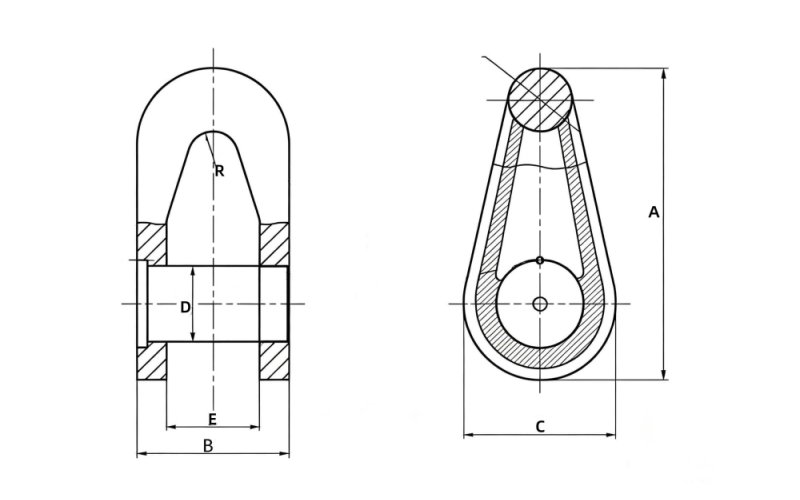

| A = 255 mm | A = 300 mm |
| B = 97 mm | B = 121 mm |
| C = 120 mm | C = 130 mm |
| D = 65 mm | D = 82 mm |
| E = 67 mm | E = 90 mm |
| F = 100 mm | F = 128 mm |
| R = 34 mm | R = 34 mm |
| Breaking load:90 tonnes | Breaking load:120 tonnes |
| Proof load:30 tonnes | Proof load:40 tonnes |
| Weight:7.8 kg | Weight:13.3 kg |
