G Hook G80 refers to a type of forged, high-quality alloy steel lifting point commonly used in rigging and lifting applications. It's characterized by its robust construction, high strength, and the "eye" design, which allows for easy connection to lifting chains or other rigging hardware. G80 refers to the grade of steel, indicating its tensile strength and suitability for high-duty lifting.

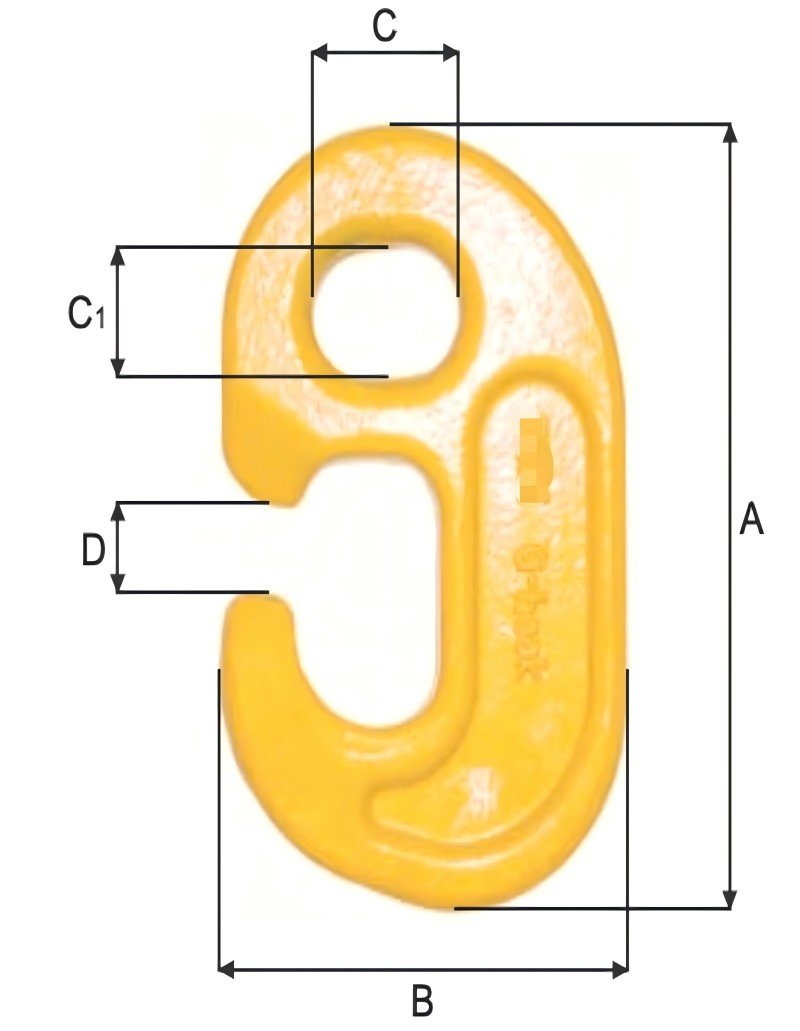

Drawings of G Hook G80 Hight Tensile Steel:

Specification of G Hook G80 Hight Tensile Steel:
Model | WLL 5:1 | Thickness (mm) | A (mm) | B (mm) | C (mm) | C1 (mm) | D (mm) | Weight (kg) |
S03 | 3 | 20 | 115 | 70 | 30 | 30 | 17 | 0.65 |
S05 | 5 | 26 | 132 | 82 | 38 | 38 | 17 | 1.2 |
S08 | 8 | 30 | 153 | 97 | 42 | 42 | 18 | 1.9 |
S10 | 10 | 35 | 180 | 115 | 40 | 30 | 18 | 3.3 |
S15 | 15 | 45 | 215 | 136 | 50 | 40 | 18 | 6 |
S20 | 20 | 50 | 240 | 155 | 60 | 50 | 27 | 8.4 |
