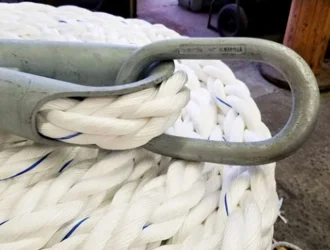

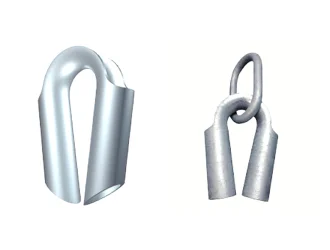

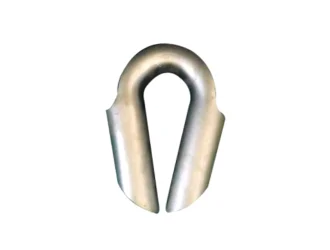

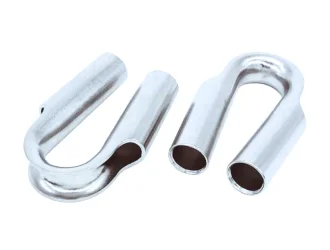

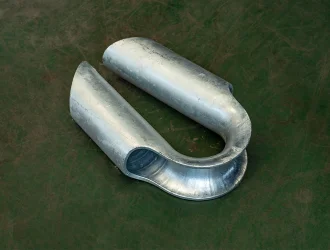

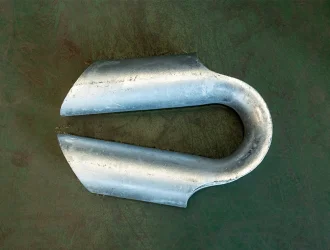

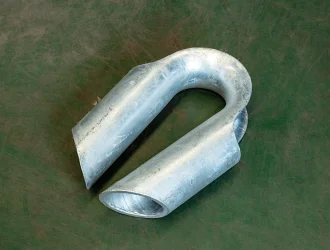

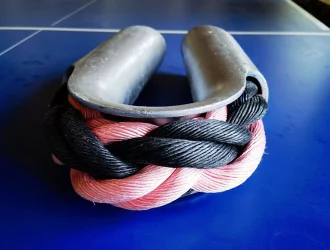

A hot-dip galvanized tube wire rope thimble is a type of thimble, a metal loop used to protect wire rope eyes from damage and wear, that is coated with a layer of zinc through the hot-dip galvanization process. This coating provides superior corrosion resistance compared to standard zinc plating.

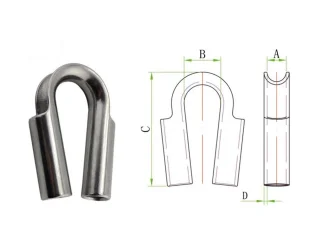

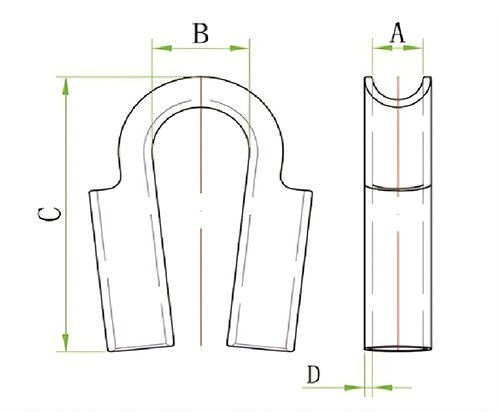

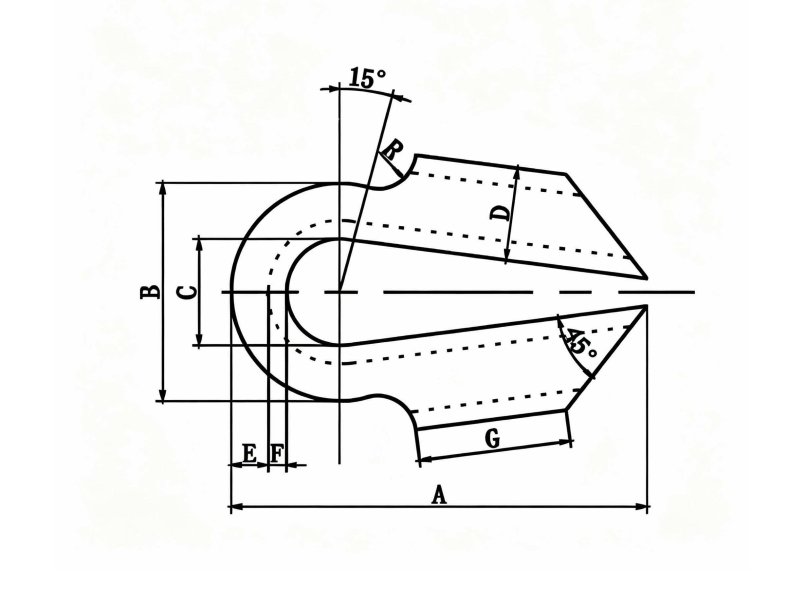

Drawings of HDG Tube wire rope Thimble:

Specification of HDG Tube wire rope Thimble:
Model | Rope Dia(Max.) | Length(Tot.) | Height |
G255 | 40 mm | 11 1/2″=298 | 55 mm |
G260 | 44 mm | 12″=308 | 60 mm |
G265 | 48 mm | 12 1/2″=312 | 65 mm |
G270 | 56 mm | 13″=332 | 70 mm |
G275 | 64 mm | 13 1/2″=342 | 75 mm |
G285 | 72 mm | 17 1/2″=450 | 88 mm |
G295 | 80 mm | 19 1/2″=500 | 94 mm |
G2105 | 92 mm | 21 1/2″=550 | 107 mm |
G2110 | 96 mm | 24”=600 | 112 mm |
G2120 | 104 mm | 26”=650 | 120 mm |
G2140 | 115 mm | 30”=750 | 140 mm |
