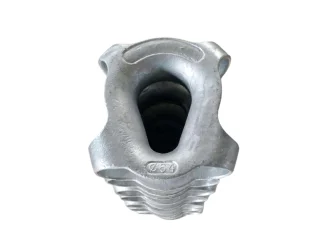

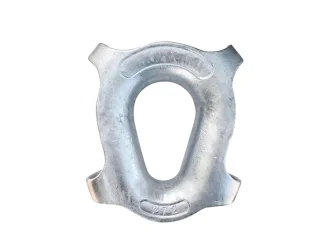

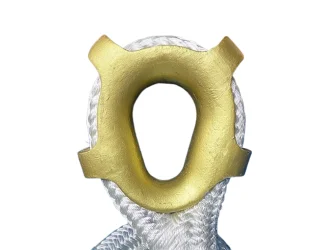

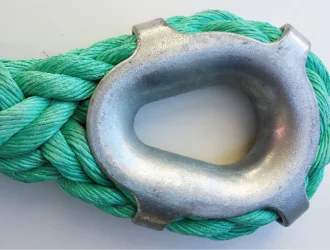

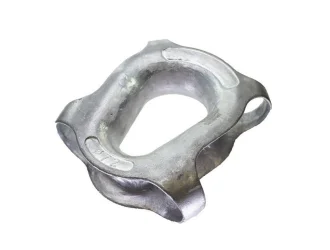

A galvanized synthetic rope thimble is a rigging component that protects synthetic rope from damage and deformation when creating an eye loop or when connecting it to other rigging hardware. The thimble is typically made of steel and coated with a zinc layer through a galvanizing process to protect it from corrosion. This coating, especially hot-dip galvanizing, provides increased corrosion resistance, particularly in outdoor or marine environments.
Drawings of Synthetic Rope Thimbles Galvanized:

Specification of Synthetic Rope Thimbles Galvanized:
Rope Cir.(in) | Rope Dia.(in) | Rope Dia.(mm) | Dimension(mm) | Weight (kgs) |
3-3 3/4" | 1-1 1/4" | 24-30 | 51 | 1.2 |
4-5" | 1 5/16-1 5/8" | 32-45 | 86 | 3.2 |
6-7" | 2-2 1/4" | 48-56 | 95 | 6 |
8" | 2 5/8" | 60-66 | 108 | 10 |
9" | 3" | 68-70 | 121 | 12 |
10" | 3 1/4" | 76-80 | 124 | 17 |
11-12" | 3 5/8-4" | 88-96 | 145 | 28 |
13-14" | 4 1/4-4 5/8" | 108-118 | 155 | 44 |
15-16" | 5-5 1/4" | 127-134 | 165 | 60 |
17-18" | 5 5/8-6" | 137-146 | 228 | 100 |
19-20" | 6 1/4-6 5/8" | 154-162 | 305 | 140 |
21-22" | 7-7 1/4" | 170-178 | 352 | 172 |
