| Product Features: | |
| Application: | Common Rotating Link on the Ship |
| Material: | Alloy Steel/Carbon Steel/Stainless Steel |
| Type: | 3-Link Adaptor E+SW+EL+C |
| Specification: | 12.5MMto 162MM |
| Surface: | Black Tar/Hot-Dip Galvanized |
| Certification: | LR, ABS, DNV, BV, CCS, KR, RMRS, NK etc |
The Anchor Chain Swivel Assembly (3-Link) – also known as a 3-link Swivel Forerunner – is a critical component that connects the anchor to the anchor chain, allowing free rotation to prevent twisting and kinking during deployment and retrieval.

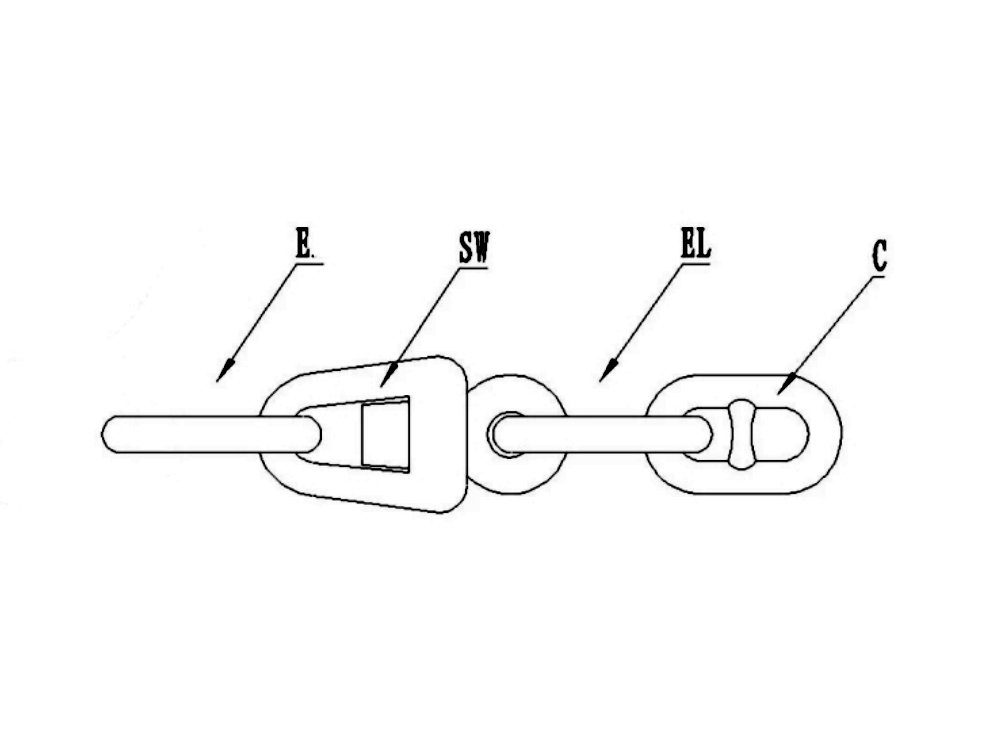

This 3-link assembly consists of an End Link (E), a Swivel (SW), an Enlarged Link (EL), and a Common Link (C). It is designed for use with Grade 2 and Grade 3 stud link anchor chains.
Available in U2 and U3 grades, diameters from 16mm to 132mm. Surface finish: hot-dip galvanized or black bitumen coating. Class certificates from ABS, LR, BV, DNV, CCS, NK, KR, RINA, RS, IRS available upon request.
Applications: Small to medium-sized vessels, yachts, sailboats, cost-sensitive projects, and scenarios with limited space.
| Nominal | AM2 (KN) | AM3 (KN) | ||
| Size(mm) | BL | PL | BL | PL |
| 12.5 | 92 | 66 | - | - |
| 14 | 115 | 82 | - | - |
| 16 | 150 | 107 | 216 | 150 |
| 17.5 | 179 | 127 | 256 | 179 |
| 19 | 211 | 150 | 301 | 211 |
| 20.5 | 244 | 175 | 349 | 244 |
| 22 | 280 | 200 | 401 | 280 |
| 24 | 332 | 237 | 476 | 332 |
| 26 | 389 | 278 | 556 | 389 |
| 28 | 449 | 321 | 642 | 449 |
| 30 | 514 | 368 | 735 | 514 |
| 32 | 583 | 417 | 833 | 583 |
| 34 | 655 | 468 | 937 | 655 |
| 36 | 732 | 523 | 1050 | 732 |
| 38 | 812 | 581 | 1160 | 812 |
| 40 | 895 | 640 | 1280 | 895 |
| 42 | 981 | 703 | 1400 | 981 |
| 44 | 1080 | 769 | 1540 | 1080 |
| 46 | 1170 | 837 | 1680 | 1170 |
| 48 | 1270 | 908 | 1810 | 1270 |
| 50 | 1370 | 981 | 1960 | 1370 |
| 52 | 1480 | 1060 | 2110 | 1480 |
| 54 | 1590 | 1140 | 2270 | 1590 |
| 56 | 1710 | 1220 | 2430 | 1710 |
| 58 | 1810 | 1290 | 2600 | 1810 |
| 60 | 1940 | 1380 | 2770 | 1940 |
| 62 | 2060 | 1470 | 2940 | 2060 |
| 64 | 2190 | 1560 | 3130 | 2190 |
| 66 | 2310 | 1660 | 3300 | 2310 |
| 68 | 1450 | 1750 | 3500 | 2450 |
| 70 | 2580 | 1840 | 3690 | 2580 |
| 73 | 2790 | 1990 | 3990 | 2790 |
| 76 | 3010 | 2150 | 4300 | 3010 |
| 78 | 3160 | 2260 | 4500 | 3160 |
| 81 | 3380 | 2410 | 4820 | 3380 |
| 84 | 3610 | 2580 | 5160 | 3610 |
| 87 | 3850 | 2750 | 5500 | 3850 |
| 90 | 4090 | 2920 | 5840 | 4090 |
| 92 | 4260 | 3040 | 6080 | 4260 |
| 95 | 4510 | 3230 | 6440 | 4510 |
| 97 | 4680 | 3340 | 6690 | 4680 |
| 100 | 4940 | 3530 | 7060 | 4940 |
| 102 | 5120 | 3660 | 7320 | 5120 |
| 105 | 5390 | 3850 | 7700 | 5390 |
| 107 | 5570 | 3980 | 7960 | 5570 |
| 111 | 5940 | 4250 | 8480 | 5940 |
| 114 | 6230 | 4440 | 8890 | 6230 |
| 117 | 6510 | 4650 | 9300 | 6510 |
| 120 | 6810 | 4850 | 9720 | 6810 |
| 122 | 7000 | 5000 | 9990 | 7000 |
| 124 | 7200 | 5140 | 10280 | 7200 |
| 127 | 7490 | 5350 | 10710 | 7490 |
| 130 | 7800 | 5570 | 11140 | 7800 |
| 132 | 8000 | 5720 | 11420 | 8000 |
| 137 | 8510 | 6080 | 12160 | 8510 |
| 142 | 9030 | 6450 | 12910 | 9030 |
| 147 | 9560 | 6840 | 13660 | 9560 |
| 152 | 10100 | 7220 | 14430 | 10100 |
| 157 | 10640 | 7600 | 15200 | 10640 |
| 162 | 11180 | 7990 | 15980 | 11180 |
1. What is an anchor chain swivel assembly (swivel forerunner)?
An anchor chain swivel assembly (also called a swivel forerunner) is a component installed between the anchor and the anchor chain. Its primary function is to allow the chain to rotate freely during deployment and recovery, preventing twisting, kinking, or tangling. It also helps distribute load evenly for smoother anchoring operations.
2. What is the difference between 3-link, 4-link, and 5-link swivel forerunner?
| Configuration | Structure | Best For |
| 3-link | E + SW + EL + C | Small to medium-sized vessels, yachts, compact design, cost-sensitive projects |
| 4-link | E + C + EL + SW + EL | Larger chains and heavier mooring requirements, more length and flexibility |
| 5-link | E + EL + SW + EL + C | Large vessels, smoother load transfer |
The 3-link or 4-link swivel forerunner is the most common swivel connector in use today due to its optimal design.
3. Can the 3-link assembly be customized to my specifications?
Yes, absolutely. The 3-link swivel assembly can be fully customized to match your anchor chain system.
We can adjust:
- Each link dimension – based on your chain diameter (d)
- Material grade – U2 (AM2) or U3 (AM3), matching your chain
- Surface finish – hot-dip galvanized or black bitumen coating
- Certification – LR, ABS, DNV, BV, CCS, NK, KR, RINA, RS, IRS
For example, if you have a specific chain diameter (say 22mm or 32mm), we will calculate and produce each component (End Link E, Enlarged Link EL, Swivel SW, Common Link C) to match your system perfectly.
4. What grades and diameters are available?
Available in U2 and U3 grades, with diameters ranging from 16mm to 132mm. Custom sizes are available upon request.
For U2/U3 grades, we can supply the swivel assembly with full classification society certification.
5. What certifications can you provide?
Class certificates from ABS, LR, BV, DNV, CCS, NK, KR, RINA, RS, IRS are available upon request. Mill test certificates and third-party inspection reports can also be provided.
