| Product Information: | |
| Application: | Connector designed to link the swivel end of a chain cable to the anchor crown shackle |
| Material: | Alloy Steel CM690 |
| Diameters: | 19MM to 108MM |
| Surface: | Hot Dip Galvanizing / Spray Paint |
| Certification: | LR, ABS, BV, DNV, CCS, KR, NK, RMRS,Etc |
The Pear Shaped Shackle Grade 3 is a detachable anchor chain connector designed to link the swivel end of a chain cable to the anchor crown shackle. Unlike standard joining shackles, it features a tapered, pear-shaped profile — a wider rounded end for pin insertion and a narrower tip for easy load attachment.
This design allows the Pear Shaped Shackle to connect chain links of different diameters, making it a versatile alternative to more complex multi-component assemblies. It can replace the combined use of a D-Shackle, End Link, Enlarged Link, and Kenter Shackle with a single, streamlined component.Grade 3 (U3) is the standard and only grade manufactured for this product in the maritime industry. Grade 2 Pear Shackles are no longer in use.
Optimized Pear-Shaped Design – Wider rounded end for pin insertion, tapered tip for easy load attachment
Size Compensation – Connects chain links of different diameters without additional adapters
Grade 3 (U3) Only – Manufactured from CM690 or S690Q steel, matching anchor chain material quality
Drop Forged Construction – Superior strength and structural integrity
Center Chock & Taper Pin – Secure installation with reliable locking mechanism
Surface Finish – Black painted, hot-dip galvanized, or original color
Easy Assembly & Disassembly – Ideal for short-term and temporary mooring applications

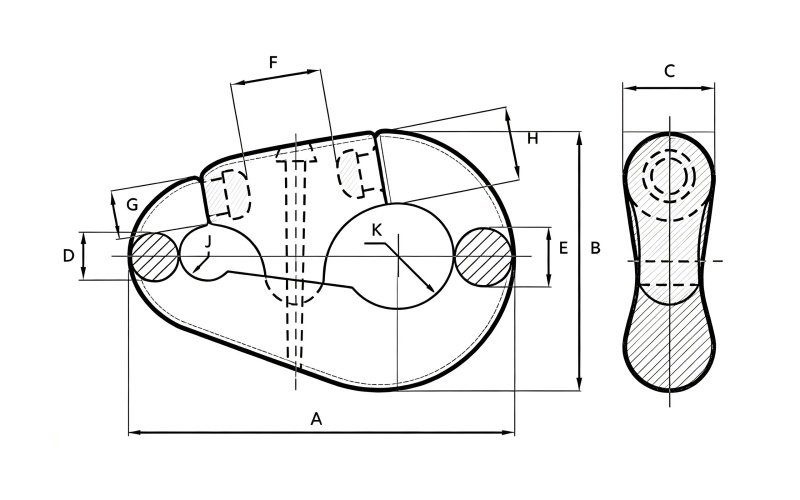

| Size | Chain Diameter (mm) | Chain Diameter (inch) | Proof Load (kN) | Breaking Load (kN) | Weight (kg) |
|---|---|---|---|---|---|
| 2 | 19–24 | 3/4 – 15/16 | 340 | 485 | 3.6 |
| 3 | 25–30 | 1 – 1-3/16 | 530 | 757 | 6.5 |
| 4 | 32–40 | 1-1/4 – 1-9/16 | 914 | 1,310 | 14.5 |
| 5 | 42–51 | 1-5/8 – 2 | 1,454 | 2,077 | 27 |
| 6 | 52–60 | 2-1/16 – 2-3/8 | 1,996 | 2,852 | 49 |
| 7 | 62–79 | 2-7/16 – 3-1/8 | 3,321 | 4,745 | 92 |
| 8 | 81–92 | 3-3/16 – 3-5/8 | 4,348 | 6,212 | 149 |
| 9 | 94–95 | 3-11/16 – 3-3/4 | 4,623 | 6,601 | 236 |
| 10 | 97–102 | 3-13/16 – 4 | 5,221 | 7,460 | 386 |
| 11 | 103–108 | 4-1/16 – 4-1/4 | 5,770 | 8,243 | 418 |
Grade 3 Quality – Manufactured from CM690 steel matching your anchor chain material
Class Society Certification – CCS, ABS, BV, LR, NK, RINA available upon request
Full Traceability – Material certificates and inspection reports provided
Custom Sizes – Bespoke dimensions available upon request
Factory Direct – Competitive pricing with full quality control
Q1: What is the Difference between a Pear Shaped Shackle and a Kenter Shackle?
A Kenter Shackle connects two sections of chain and passes through the windlass. A Pear Shaped Shackle connects the chain to the anchor crown shackle and features a tapered design for size compensation. The Pear Shackle can replace the combined use of D-Shackle, End Link, Enlarged Link, and Kenter Shackle.
Q2: Is Grade 3 the only Available Grade for Pear Shaped Shackles?
Yes. Grade 2 Pear Shackles are no longer used in the maritime industry. All current Pear Shaped Shackles are manufactured in Grade 3 (U3).
Q3: Can a Pear Shaped Shackle Connect Chains of Different Diameters?
Yes. The pear-shaped design with different dimensions on each side allows it to connect two mooring lines or chains with different dimensions.
Q4: What Material is Used for Pear Shaped Shackle Grade 3?
It is manufactured from CM690 or S690Q steel, the same or very similar material used for Grade 3 anchor chains. Yield strength is min 410 N/mm², tensile strength min 690 N/mm².
Q5: What Certifications are Available?
CCS, ABS, BV, LR, NK, and RINA certifications are available upon request.
