Stud link anchor chains are a type of heavy-duty chain commonly used for anchoring and mooring vessels. They have a central stud in each link that helps to prevent kinking, deformation, and fouling. These chains are known for their strength and are often preferred for large vessels and applications where significant loads are involved.
Fishing chains have three specifications: short link chian, middle link chain and long link chain. Different types of fishing chains have different features.
Studless Fishing Anchor Chain are 62.5% load verified at break, very durable and able to withstand extreme and harsh weather use, it is also corrosion-resistant, ideal for use in saltwater environments. There are Short Link, Mid Link and Long Link to choose from.
Stud link anchor chains are a type of heavy-duty chain commonly used for anchoring and mooring vessels. They have a central stud in each link that helps to prevent kinking, deformation, and fouling. These chains are known for their strength and are often preferred for large vessels and applications where significant loads are involved.
The Sand Anchor has is a conventional anchor with solid construction to withstand high load.It has high holding power and weight ratio and very suitable for seabed of sand and mix Soil.
The Stingray Anchor is a high-efficiency drag embedment anchor designed for aquaculture and marine mooring. With holding power exceeding 40 times its own weight, it significantly outperforms conventional anchors of similar size.
Mooring shackles are manufactured with alloy steel by following ISO9001 Quality Control System. With our years know-how on forging, heat treatment and hot dip galvanized, it is ensured the mooring shackle avoid any Hydrogen Embrittle-ment and offer a longer fatigue life of safe performance compared to EN13889 requirement and safety.
Mooring connection plates are manufactured using alloy grade material and followed by full heat treatment process.The durability ensures that the plates can withstand exposure to saltwater, reducing maintenance needs and extending the lifespan of the aquaculture setup.
Rope K3 Thimble is used for aquaculture mooring, where the surface needs to be heat-treated to protect wire, fibre or synthetic ropes.
The Studless Anchor Chain (also known as Open Link Anchor Chain) is a marine-grade anchor chain designed for vessels and offshore applications where reliable anchoring performance and ease of handling are essential. Unlike stud link chains, the open link design has no crossbar inside each link, making it lighter, more flexible, and easier to handle, store, and deploy.
The Black Painted Studless Anchor Chain is a high-quality marine-grade anchor chain designed for vessels and offshore applications where reliable anchoring performance is required at a cost-effective price point. Also known as an open link anchor chain, it features links without a central stud, making it lighter and more flexible than stud link chains—easier to handle, store, and deploy in a wide range of marine environments.
The 12.5mm Stud Link Anchor Chain is a heavy-duty marine chain primarily used in ship anchoring and mooring systems. Standard length (short link): typically supplied in 27.5-meter (15 fathom) lengths, connectable using Kenter shackles.
| Product Features: | |
| Application: | 3 Link Adapter securing anchor chain to chain locker end fastening |
| Material: | Alloy Steel/Carbon Steel/Stainless Steel |
| Type: | 3-Link Adaptor E+EL+C |
| Specification: | 12.5MMto 162MM |
| Surface: | Black Tar/Hot-Dip Galvanized |
| Certification: | LR, ABS, DNV, BV, CCS, KR, RMRS, NK etc |
The 3 Link Adapter (also known as 3 Link Adapter or Dreigliederenden) is a specialized component used in stud link anchor chain systems. It serves as the terminal connection between the anchor chain cable and the chain locker end fastening (cable clench).
The 3 Link Adapter assembly is an essential component for securing the anchor chain within the chain locker.
| Nominal | AM2 (KN) | AM3 (KN) | ||
| Size(mm) | BL | PL | BL | PL |
| 12.5 | 92 | 66 | - | - |
| 14 | 115 | 82 | - | - |
| 16 | 150 | 107 | 216 | 150 |
| 17.5 | 179 | 127 | 256 | 179 |
| 19 | 211 | 150 | 301 | 211 |
| 20.5 | 244 | 175 | 349 | 244 |
| 22 | 280 | 200 | 401 | 280 |
| 24 | 332 | 237 | 476 | 332 |
| 26 | 389 | 278 | 556 | 389 |
| 28 | 449 | 321 | 642 | 449 |
| 30 | 514 | 368 | 735 | 514 |
| 32 | 583 | 417 | 833 | 583 |
| 34 | 655 | 468 | 937 | 655 |
| 36 | 732 | 523 | 1050 | 732 |
| 38 | 812 | 581 | 1160 | 812 |
| 40 | 895 | 640 | 1280 | 895 |
| 42 | 981 | 703 | 1400 | 981 |
| 44 | 1080 | 769 | 1540 | 1080 |
| 46 | 1170 | 837 | 1680 | 1170 |
| 48 | 1270 | 908 | 1810 | 1270 |
| 50 | 1370 | 981 | 1960 | 1370 |
| 52 | 1480 | 1060 | 2110 | 1480 |
| 54 | 1590 | 1140 | 2270 | 1590 |
| 56 | 1710 | 1220 | 2430 | 1710 |
| 58 | 1810 | 1290 | 2600 | 1810 |
| 60 | 1940 | 1380 | 2770 | 1940 |
| 62 | 2060 | 1470 | 2940 | 2060 |
| 64 | 2190 | 1560 | 3130 | 2190 |
| 66 | 2310 | 1660 | 3300 | 2310 |
| 68 | 1450 | 1750 | 3500 | 2450 |
| 70 | 2580 | 1840 | 3690 | 2580 |
| 73 | 2790 | 1990 | 3990 | 2790 |
| 76 | 3010 | 2150 | 4300 | 3010 |
| 78 | 3160 | 2260 | 4500 | 3160 |
| 81 | 3380 | 2410 | 4820 | 3380 |
| 84 | 3610 | 2580 | 5160 | 3610 |
| 87 | 3850 | 2750 | 5500 | 3850 |
| 90 | 4090 | 2920 | 5840 | 4090 |
| 92 | 4260 | 3040 | 6080 | 4260 |
| 95 | 4510 | 3230 | 6440 | 4510 |
| 97 | 4680 | 3340 | 6690 | 4680 |
| 100 | 4940 | 3530 | 7060 | 4940 |
| 102 | 5120 | 3660 | 7320 | 5120 |
| 105 | 5390 | 3850 | 7700 | 5390 |
| 107 | 5570 | 3980 | 7960 | 5570 |
| 111 | 5940 | 4250 | 8480 | 5940 |
| 114 | 6230 | 4440 | 8890 | 6230 |
| 117 | 6510 | 4650 | 9300 | 6510 |
| 120 | 6810 | 4850 | 9720 | 6810 |
| 122 | 7000 | 5000 | 9990 | 7000 |
| 124 | 7200 | 5140 | 10280 | 7200 |
| 127 | 7490 | 5350 | 10710 | 7490 |
| 130 | 7800 | 5570 | 11140 | 7800 |
| 132 | 8000 | 5720 | 11420 | 8000 |
| 137 | 8510 | 6080 | 12160 | 8510 |
| 142 | 9030 | 6450 | 12910 | 9030 |
| 147 | 9560 | 6840 | 13660 | 9560 |
| 152 | 10100 | 7220 | 14430 | 10100 |
| 157 | 10640 | 7600 | 15200 | 10640 |
| 162 | 11180 | 7990 | 15980 | 11180 |
1. What is a 3-Link Adaptor?
It is a flexible three-link assembly used at the end of an anchor chain to provide an open end link for connecting to shackles, swivels, or other fittings. It bridges the chain to the anchor side or to the chain locker end fastening.
2. What is the structure of the 3-Link Adaptor Piece?

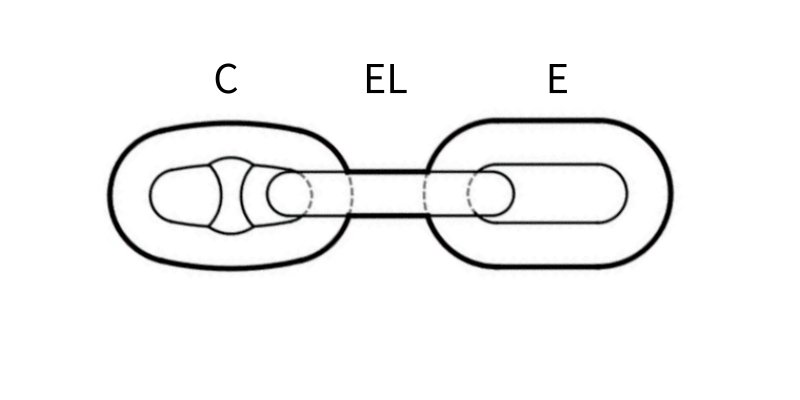

It consists of three links：C+E+EL,a common stud link, an enlarged stud link, and an open end link without a stud. The end link is larger than the common link, making it easier to connect to shackles or other equipment.
3. What is it used for?
It connects the anchor chain to：
- A swivel crown shackle on the anchor side
- A shackle or end connector on the chain locker side
- A rope in mixed rope-and-chain mooring systems（with an anchor D shackle）
4. What sizes are available?
Diameter range from 12.5mm to 166mm, covering small to large anchor chain systems.
5. What certificates can you provide?
Class society certificates from LR, ABS, DNV, BV, CCS, NK, KR, RINA, RS, IRS are available upon request. Please specify your requirement when ordering.
