The 12.5mm Stud Link Anchor Chain is a heavy-duty marine chain primarily used in ship anchoring and mooring systems. Standard length (short link): typically supplied in 27.5-meter (15 fathom) lengths, connectable using Kenter shackles.
AM3 is a designation for a grade of stud-link anchor chain, specifically referring to a high-strength steel chain used for ship anchoring and mooring. These chains are designed for durability and reliability in demanding marine applications, often used on large vessels or in harsh environmental conditions.
Stud link anchor chain AM2 is a specific type of anchor chain widely used in marine applications. It's characterized by having a stud (a crossbar or bar) within each link, adding strength and preventing kinking or twisting. AM2 is a designation within the marine industry for a specific grade of this chain, indicating its strength and material properties.
Anchor Chain for marine farm mooring system, with diameter 16mm to 50mm, most used in European fish farming industry.
| Product Information: | |
| Application: | Joint Shackle Used to Connect Chain Links |
| Material: | Alloy Steel |
| Diameters: | 12.5MM to 152MM |
| Surface: | Hot Dip Galvanizing / Spray Paint |
| Certification: | LR, ABS, BV, DNV, CCS, KR, NK, RMRS,etc |

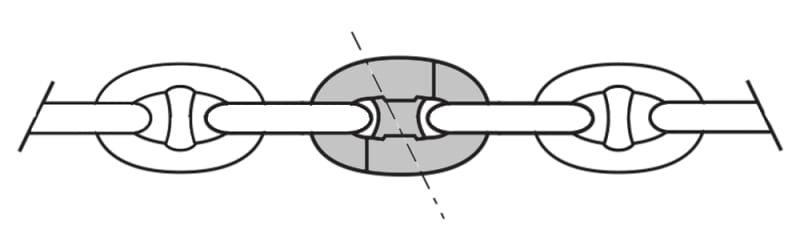

A Kenter link shackle, or Kenter joining shackle, is a type of detachable link used to connect two lengths of stud-link chain, typically in the marine industry. It's composed of two halves that are connected by a center stud and a locking pin, often a tapered pin with a lead plug. This type of shackle is used to join anchor and mooring chains.
| Nominal | M2 (KN) | M3 (KN) | Weight | ||
| (mm) | BL | PL | BL | PL | （kg) |
| 20.5 | 244 | 175 | 349 | 244 | 1.36 |
| 22 | 280 | 200 | 401 | 280 | 1.64 |
| 26 | 389 | 278 | 556 | 389 | 2.58 |
| 28 | 449 | 321 | 642 | 449 | 3.3 |
| 30 | 514 | 368 | 735 | 514 | 4.15 |
| 32 | 583 | 417 | 833 | 583 | 5.06 |
| 36 | 732 | 523 | 1050 | 732 | 6.89 |
| 38 | 812 | 581 | 1160 | 812 | 8.4 |
| 40 | 895 | 640 | 1280 | 895 | 9.63 |
| 42 | 981 | 703 | 1400 | 981 | 11 |
| 46 | 1170 | 837 | 1680 | 1170 | 14.1 |
| 48 | 1270 | 908 | 1810 | 1270 | 16.7 |
| 50 | 1370 | 981 | 1960 | 1370 | 19 |
| 52 | 1480 | 1060 | 2110 | 1480 | 20.3 |
| 56 | 1710 | 1220 | 2430 | 1710 | 26.7 |
| 58 | 1810 | 1290 | 2600 | 1810 | 27.2 |
| 60 | 1940 | 1380 | 2770 | 1940 | 27.7 |
| 62 | 2060 | 1470 | 2940 | 2060 | 35 |
| 66 | 2310 | 1660 | 3300 | 2310 | 42.3 |
| 68 | 1450 | 1750 | 3500 | 2450 | 46 |
| 70 | 2580 | 1840 | 3690 | 2580 | 48.7 |
| 76 | 3010 | 2150 | 4300 | 3010 | 60.7 |
| 78 | 3160 | 2260 | 4500 | 3160 | 65.5 |
| 81 | 3380 | 2410 | 4820 | 3380 | 75 |
| 87 | 3850 | 2750 | 5500 | 3850 | 96 |
| 90 | 4090 | 2920 | 5840 | 4090 | 108 |
| 92 | 4260 | 3040 | 6080 | 4260 | 114 |
| 97 | 4680 | 3340 | 6690 | 4680 | 133 |
| 100 | 4940 | 3530 | 7060 | 4940 | 146 |
| 102 | 5120 | 3660 | 7320 | 5120 | 158 |
| 107 | 5570 | 3980 | 7960 | 5570 | 180 |
| 111 | 5940 | 4250 | 8480 | 5940 | 198 |
| 114 | 6230 | 4440 | 8890 | 6230 | 204 |
| 120 | 6810 | 4850 | 9720 | 6810 | 250 |
| 122 | 7000 | 5000 | 9990 | 7000 | 263 |
| 127 | 7490 | 5350 | 10710 | 7490 | 312 |
| 130 | 7800 | 5570 | 11140 | 7800 | 333 |
| 132 | 8000 | 5720 | 11420 | 8000 | 350 |
1. What is a Kenter shackle?
It's the detachable link that connects two sections of anchor chain, or chain to anchor. Made of two halves, a crossbar, and a tapered pin, it can be installed or removed on-site without burning tools.
2. How do I choose the right one?
Match the shackle to your chain's diameter, grade, and material (e.g., U2, U3, R4). Diameter should be the same as your chain link (d). Check for required class society certification (ABS, DNV, LR, CCS, etc.).
3. Does it connect directly to standard chain?
Yes. Kenter shackle diameter matches standard chain link (d), so no enlarged link (EL) is needed. This keeps the connection smooth and strength-matched.
4. What are the key installation rules?
Don't skip the lead seal – it keeps the tapered pin from backing out. Also ensure half-rings are fully aligned and avoid forcing parts cold.
5. How often should it be inspected?
Check the lead seal every 6 months. Perform full flaw inspection every 2 years. Replace when wear exceeds 8% of original size.
