Product Features: | |
Application: | Lifting accessory commonly used in industrial and construction settings. |
Material: | Alloy steel,Carbon steel S355 or S255J2,Forged alloy steel |
Specification: | 18mm-72mm |
Color: | Colorful paint,Red,Yellow etc. |
Standard: | EN 1677-4 (DIN 5688-3) |

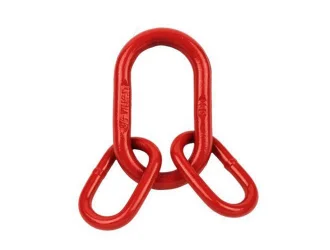

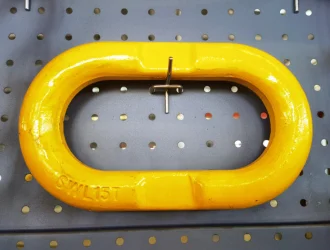

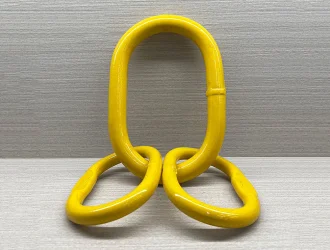

Grade 8 Master Link Assembly is also called G80 Quad Link Assemblies. The sub-assemblies are made from alloy steel for chain slings or wire rope slings with 3 or 4 legs. The subrings will have an engineered flat upon request to avoid mismatching. The master link assembly is suitable for G80 EN818-2 lifting chains.
Item code | Chain size (mm) | WLL β0-45° (ton) | A (mm) | B (mm) | D (mm) | a (mm) | b (mm) | d (mm) | Weight (kg) |
4.25T20MM | 8 | 4.25 | 160 | 90 | 22 | 70 | 34 | 16 | 2.2 |
6.7T22MM | 10 | 6.7 | 180 | 100 | 26 | 85 | 40 | 18 | 3.4 |
11.2T28MM | 13 | 11.2 | 200 | 110 | 32 | 115 | 50 | 22 | 6.1 |
17T32MM | 18 | 17 | 260 | 140 | 36 | 140 | 65 | 26 | 9.98 |
31.5T45MM | 26 | 45 | 400 | 200 | 56 | 200 | 110 | 40 | 35.2 |
45T51MM | 32 | 67 | 460 | 250 | 72 | 200 | 110 | 50 | 66.5 |
US Type, WMA type of G80 master link assembly | |||||||||
Code | Chain size (mm) | WLL β0-45° (ton) | A (mm) | B (mm) | D (mm) | a (mm) | b (mm) | d (mm) | Weight (kg) |
4.25T20MM | 8 | 4.25 | 160 | 90 | 20 | 100 | 60 | 14 | 1.95 |
6.7T22MM | 10 | 6.7 | 180 | 100 | 22 | 150 | 70 | 18 | 3.16 |
11.2T28MM | 13 | 11.2 | 270 | 140 | 28 | 160 | 90 | 22 | 6.75 |
17T32MM | 16 | 17 | 270 | 140 | 32 | 180 | 100 | 25 | 9.31 |
31.5T45MM | 22 | 31.5 | 340 | 180 | 45 | 285 | 155 | 36 | 26.6 |
45T51MM | 25 | 45 | 350 | 190 | 51 | 340 | 180 | 45 | 42.91 |
