Stud link anchor chains are a type of heavy-duty chain commonly used for anchoring and mooring vessels. They have a central stud in each link that helps to prevent kinking, deformation, and fouling. These chains are known for their strength and are often preferred for large vessels and applications where significant loads are involved.
Fishing chains have three specifications: short link chian, middle link chain and long link chain. Different types of fishing chains have different features.
Studless Fishing Anchor Chain are 62.5% load verified at break, very durable and able to withstand extreme and harsh weather use, it is also corrosion-resistant, ideal for use in saltwater environments. There are Short Link, Mid Link and Long Link to choose from.
Stud link anchor chains are a type of heavy-duty chain commonly used for anchoring and mooring vessels. They have a central stud in each link that helps to prevent kinking, deformation, and fouling. These chains are known for their strength and are often preferred for large vessels and applications where significant loads are involved.
The Sand Anchor has is a conventional anchor with solid construction to withstand high load.It has high holding power and weight ratio and very suitable for seabed of sand and mix Soil.
The Stingray Anchor is a high-efficiency drag embedment anchor designed for aquaculture and marine mooring. With holding power exceeding 40 times its own weight, it significantly outperforms conventional anchors of similar size.
Mooring shackles are manufactured with alloy steel by following ISO9001 Quality Control System. With our years know-how on forging, heat treatment and hot dip galvanized, it is ensured the mooring shackle avoid any Hydrogen Embrittle-ment and offer a longer fatigue life of safe performance compared to EN13889 requirement and safety.
Mooring connection plates are manufactured using alloy grade material and followed by full heat treatment process.The durability ensures that the plates can withstand exposure to saltwater, reducing maintenance needs and extending the lifespan of the aquaculture setup.
Rope K3 Thimble is used for aquaculture mooring, where the surface needs to be heat-treated to protect wire, fibre or synthetic ropes.
The 12.5mm Stud Link Anchor Chain is a heavy-duty marine chain primarily used in ship anchoring and mooring systems. Standard length (short link): typically supplied in 27.5-meter (15 fathom) lengths, connectable using Kenter shackles.
AM3 is a designation for a grade of stud-link anchor chain, specifically referring to a high-strength steel chain used for ship anchoring and mooring. These chains are designed for durability and reliability in demanding marine applications, often used on large vessels or in harsh environmental conditions.
Stud link anchor chain AM2 is a specific type of anchor chain widely used in marine applications. It's characterized by having a stud (a crossbar or bar) within each link, adding strength and preventing kinking or twisting. AM2 is a designation within the marine industry for a specific grade of this chain, indicating its strength and material properties.
| Product Information: | |
| Application: | Chain Slings，Lifting Operations，Rigging Systems |
| Material: | Alloy Steel (35CrMo / equivalent) |
| Specification: | 1/2" – 4" |
| Surface Finish： | Powder Coated (Red / Custom color) |
| Standard: | EN 1677-4 / DIN 5688-3 / ASTM A952/A952M-02 /AS 3776 / ISO 1461 |

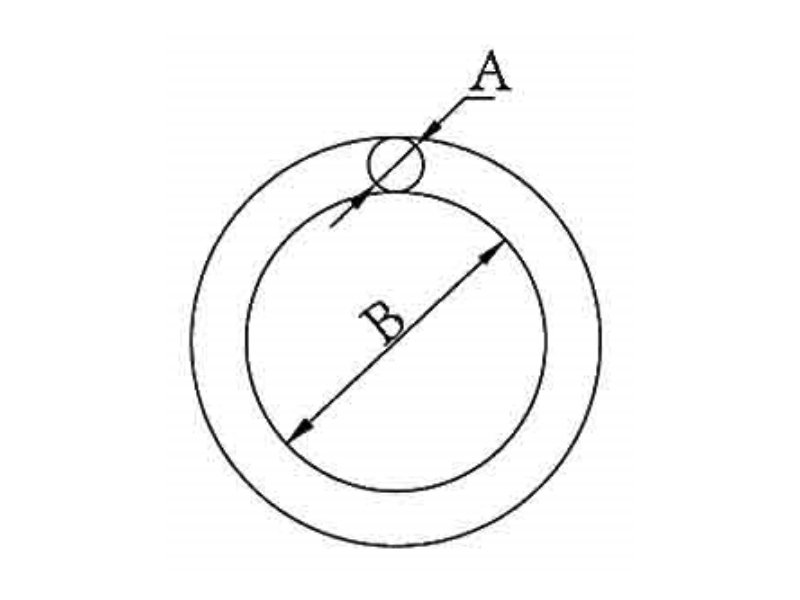

The G80 Forged Round Ring Master Link is a high-strength, forged alloy steel master link designed as the primary connection point for multi-leg chain slings, wire rope slings, and synthetic sling assemblies. Its round (O-ring) design provides a large inner diameter, making it an ideal master link for 3-leg and 4-leg slings.
Manufactured from Grade 80 (G80) alloy steel, this master link is drop-forged, quenched, and tempered for maximum strength and durability. Each unit is individually proof tested at 2.5 times the Working Load Limit (WLL) and fatigue tested at 1.5 times WLL for 20,000 cycles. The product meets EN 1677-4 and DIN 5688-3 standards, with a 4:1 safety factor and 100% magnetic particle crack detection on every unit.
