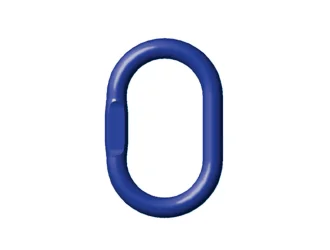

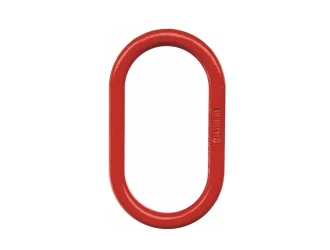

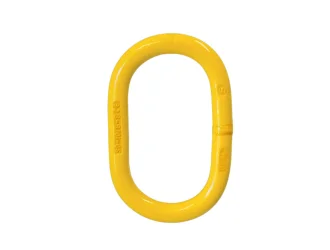

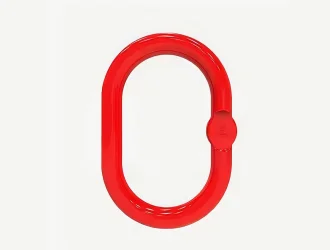

A G80 Master Link Forged Chain Sling is a crucial component in lifting and rigging systems, specifically designed for connecting chain slings to lifting equipment. It's a robust, closed-loop device, typically made of forged alloy steel, used to create a secure connection point for one or more chain legs in a sling assembly. The "G80" designation refers to the grade of the steel, indicating its strength and lifting capacity.
Drawings of G80 Master Link Forged Chain Sling:

Specification of G80 Master Link Forged Chain Sling:
Weight(Kg) | WLL(Ton.) | A mm | B mm | D mm | SxH |
0.34 | 1.6 | 110 | 60 | 10 | 7十0.3×25 |
0.43 | 1.6 | 140 | 80 | 13 | 7+0.3×25 |
0.54 | 2.12 | 110 | 60 | 16 | 7+0.5×25 |
0.66 | 2.12 | 140 | 80 | 16 | 7+0.5×25 |
0.823 | 3.15 | 135 | 75 | 18 | 8十0.5×28 |
1.1 | 3.15 | 180 | 120 | 18 | 8+0.5×28 |
1.5 | 5.3 | 160 | 90 | 22 | 11 ±0.5×35 |
1.68 | 5.3 | 180 | 120 | 22 | 11 ±0.5×35 |
2.32 | 8 | 180 | 100 | 26 | 13 士 0.5×43 |
3.95 | 11.2 | 200 | 110 | 32 | 17±0.5×55 |
6.34 | 14 | 260 | 140 | 36 | 19± 0.5×60 |
8.96 | 17 | 300 | 160 | 40 | 20± 0.5×64 |
12.8 | 21.2 | 340 | 180 | 45 | —— |
