Product Features: | |
Application: | Lifting and connecting, Wire rope fittings, Chain fittings, Marine hardware fittings |
Material: | Drop forged high tensile steel |
Surface: | Hot dip galvanizing |
Standard: | Formerly U.S.federal specification FF-F-450D |
Certification: | A works certificated can be supplide upon request |

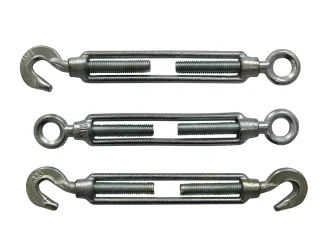

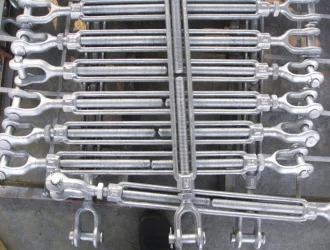

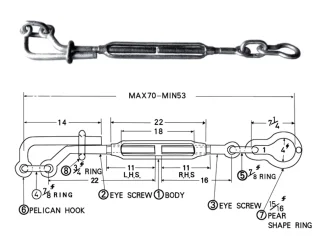

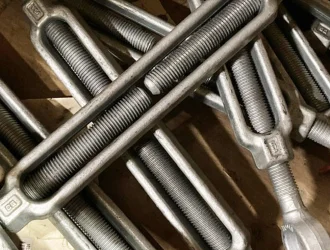

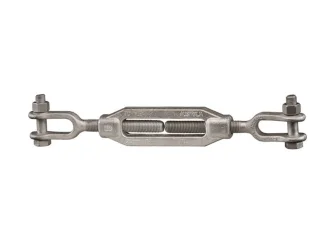

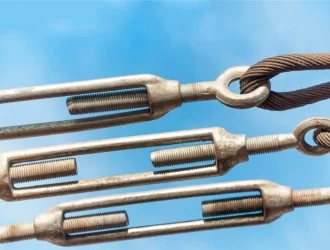

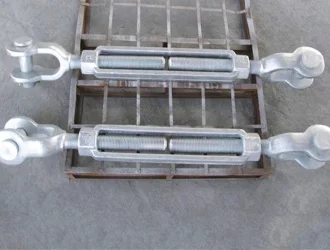

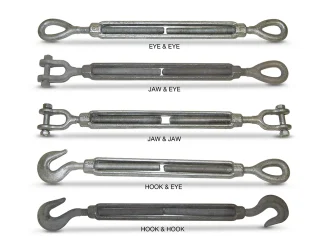

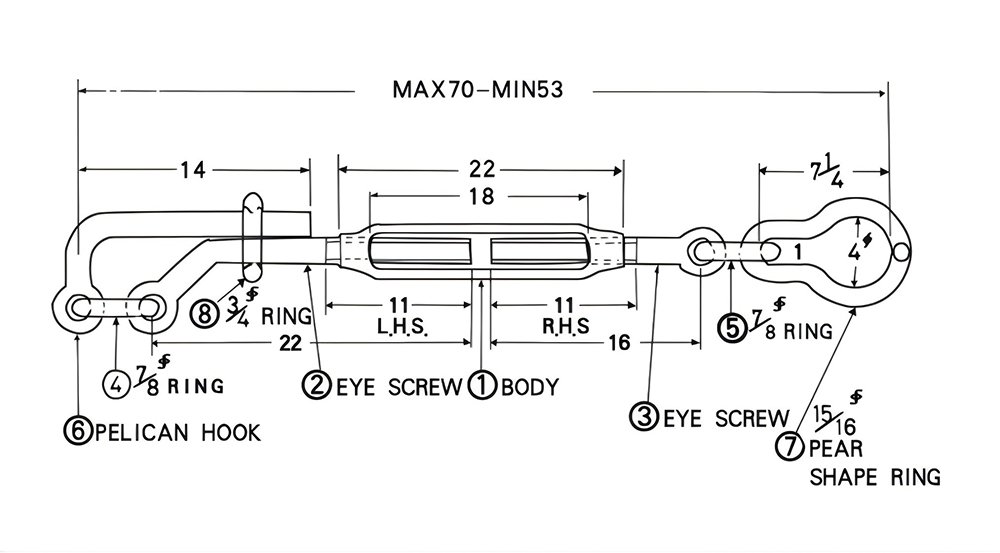

A drop forged turnbuckle with a hook and eye or a jaw and eye configuration is a rigging device used to adjust tension in wire ropes, cables, or other similar tensioning systems. The turnbuckle's body is typically made from drop forged steel, which provides high tensile strength and durability. The hook and eye or jaw and eye end fittings allow for easy connection to various rigging components.
Diameter wire rope | Diameter bow | Length bow | Width inside | Length thread | Length base | Thickness base | Height base | Weight per 100pcs |
(in) | a(mm) | b(mm) | c (mm) | d (mm) | e (mm) | f (mm) | g (mm) | (kg) |
1/4” | 8 | 34 | 19 | 13 | 37 | 30 | 18 | 8 |
1/8“ | 10 | 45 | 22 | 19 | 43 | 33 | 19 | 14 |
3/8” | 11 | 49 | 26 | 19 | 49 | 42 | 25 | 19 |
